Product Data Sheet
3 W
ATTS
U
NREGULATED
DC/DC C
ONVERTERS
PWR12XX

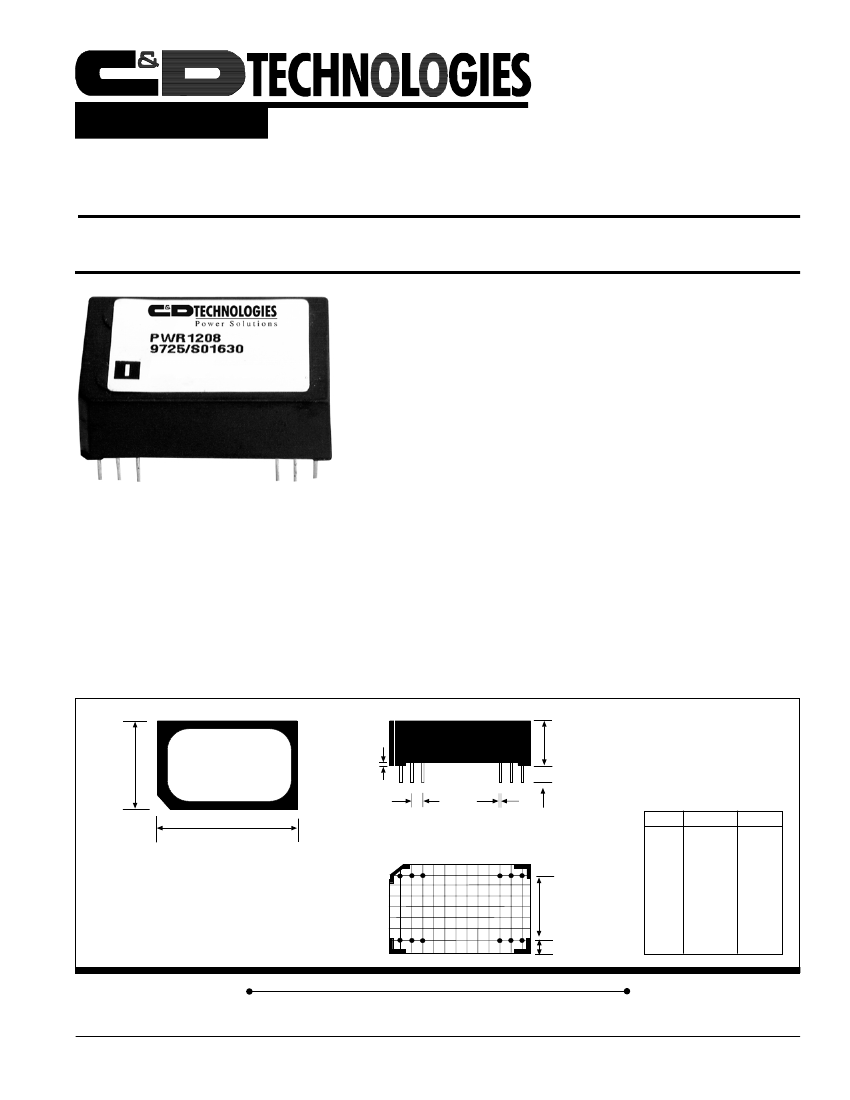

DESCRIPTION
The PWR12XX Series offers a broad line of low-cost, high-
performance, unregulated, single and dual output DC/DC
converters in a 24-pin DIP package. These miniature
converters offer better performance and lower cost in
industry-standard packages and pinouts. The PWR12XX
Series is internally filtered. No external parts are necessary.
Surface mounted components and a low thermal resistance
encapsulant allow for superior reliability, excellent thermal
dissipation, and an extended temperature range of –25°C
to +85°C at no extra cost.
FEATURES
G
G
G
G
G
G
LOW COST
INDUSTRY-STANDARD PACKAGE
SINGLE AND DUAL OUTPUTS
24-PIN DIP PACKAGE
BUILT-IN STANDOFFS
INTERNAL INPUT AND OUTPUT FILTERING
The PWR12XX Series is ideal for use on high-density PC
boards where isolated, unregulated, power is needed.
Standoffs allow for PC board cleaning, helping preserve
isolation. They also allow for visual inspection of solder
joints.
MECHANICAL
TOP VIEW
SIDE VIEW
0.400+0.010
(10.16)
NC = Do Not Connect
Duplicate pin functions are internally connected.
All dimensions are in inches (millimeters).
GRID: 0.100 inches (2.54 millimeters)
PIN PLACEMENT TOLERANCE: ± 0.015"
.805+0.010
(20.45)
PWR12XX
.010+.005
(0.25)
0.170 MIN
(4.32)
1.270+0.010
(32.25)
0.100+0.015
(2.54)
.020+0.002
(0.51)
PIN #
1
2
3
10
11
12
SINGLES
+VIN
NC
NC
–VOUT
+VOUT
–VIN
–VIN
+VOUT
–VOUT
NC
NC
+VIN
DUALS
+VIN
–VOUT
Common
Common
+VOUT
–VIN
–VIN
+VOUT
Common
Common
–VOUT
+VIN
BOTTOM VIEW
1 2 3
10 11 12
MATERIAL: Units are encapsulated in a low thermal resistance
molding compound which has excellent chemical resistance, wide
operating temperature range, and good electrical properties under
high humidity environments. The encapsulant and outer shell of the
unit have UL94V-0 ratings. Lead material is brass with a solder plated
surface to allow ease of solderability.
24 23 22
15 14 13
0.60
15.23
(.1025)
2.601
13
14
15
22
23
24
Internet: http://www.cdpowerelectronics.com
Power Electronics Division, United States
3400 E Britannia Drive, Tucson, Arizona 85706
Phone: 800.547.2537 Fax: 520.770.9369
PWR12XX
11/98
REV C
Power Electronics Division, Europe
C&D Technologies (Power Electronics) Ltd.
132 Shannon Industrial Estate, Shannon, Co. Clare, Ireland
Tel: +353.61.474.133
Fax:+353.61.474.141
Page 1
ELECTRICAL SPECIFICATIONS
Specifications typical at T
A
= +25°C, nominal input voltage, rated output current unless otherwise noted.
NOMINAL
INPUT VOLTAGE
MODEL
PWR1200
PWR1201
PWR1202
PWR1203
PWR1204
PWR1205
PWR1206
PWR1207
PWR1208
PWR1209
PWR1210
PWR1211
PWR1212
PWR1213
PWR1214
PWR1215
PWR1216
PWR1217
PWR1218
PWR1219
PWR1220
PWR1221
PWR1222
PWR1223
PWR1240
PWR1241
PWR1242
PWR1243
(V
DC
)
5
5
5
5
5
5
12
12
12
12
12
12
15
15
15
15
15
15
24
24
24
24
24
24
5
12
15
24
RATED
OUTPUT VOLTAGE
(V
DC
)
5
12
15
±5
±12
±15
5
12
15
±5
±12
±15
5
12
15
±5
±12
±15
5
12
15
±5
±12
±15
9
9
9
9
RATED
OUTPUT CURRENT
(mA)
600
250
200
±300
±125
±100
600
250
200
±300
±125
±100
600
250
200
±300
±125
±100
600
250
200
±300
±125
±100
333
333
333
333
INPUT CURRENT
NO LOAD
(mA)
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
RATED LOAD
(mA)
800
800
800
800
800
800
330
330
330
330
330
330
265
265
265
265
265
265
165
165
165
165
165
165
800
330
265
165
REFLECTED
RIPPLE CURRENT
(mAp-p)
45
45
45
45
45
45
25
25
25
25
25
25
20
20
20
20
20
20
20
20
20
20
20
20
45
25
20
20
COMMON SPECIFICATIONS
Specifications typical at T
A
= +25°C, rated input voltage, rated output current unless otherwise noted.
PARAMETER
INPUT
Voltage Range
CONDITIONS
MIN
4.5
10.8
13.5
21.6
500
500
10
90
10
3
±3
±0.02
150
10
30
7
±15
±18
1.2
6
12
150
700
75
–25
–40
–40
+25
+85
+125
+125
TYP
5
12
15
24
MAX
5.5
13.2
16.5
26.4
UNITS
V
DC
V
DC
V
DC
V
DC
V
DC
Vpk
GΩ
pF
µArms
W
%
%/%°C
mVp-p
mVrms
mVp-p
V
DC
V
DC
V
DC
%/%V
IN
%
g
kHz
kHr
%
°C
°C
°C
ISOLATION
Rated Voltage
Test Voltage
Resistance
Capacitance
Leakage Current
OUTPUT
Rated Power
Voltage Setpoint Accuracy
Temperature Coefficient
Ripple and Noise
(BW = DC to 20MHz)
60 Hz, 10 Seconds
V
ISO
= 240V
AC
, 60HZ
Rated Load, Nominal V
IN
±5
Voltage
No External Components
10µF Across Each Output
10µF Across Each Output
No Load,V
OUT
= +5V
No Load,V
OUT
= ±12V
No Load,V
OUT
= ±15V
No Load To Rated Load
Line Regulation
Load
GENERAL
Package Weight
Switching Frequency
MTTF per MIL-HDBK-217, Rev E*
Efficiency
TEMPERATURE
Specification
Operation
Storage
Circiut Stress Method
* For demonstrated MTTF results reference Power Convertible's Reliability Report PWR1205
Page 2
PWR12XX 11/98
REV C
ABSOLUTE MAXIMUM RATINGS
Output Short-Circuit Duration ................................................... Momentary
Internal Power Dissipation .................................................................. 1.3W
Lead Temperature (soldering, 10 seconds max) ............................ +300°C
APPLICATION NOTES
UNBALANCED LOADS
Unbalanced loads may be used on dual output models
with either side providing up to its rated current. Output
voltages, by design, will track each other in an unbal-
anced state within ±10% of one another.
OUTPUT NOISE
Output noise can be reduced to 30mVp-p, typically, by
adding a 10µF tantalum capacitor with an equivalent
series resistance (ESR) of less than 150mΩ at 10kHz
across each output.
ORDERING INFORMATION
PWR
Device Family
PWR indicates DC/DC converter
Model Number
Selected from Table of Electrical Characteristics
Screening Option
12XX
/H

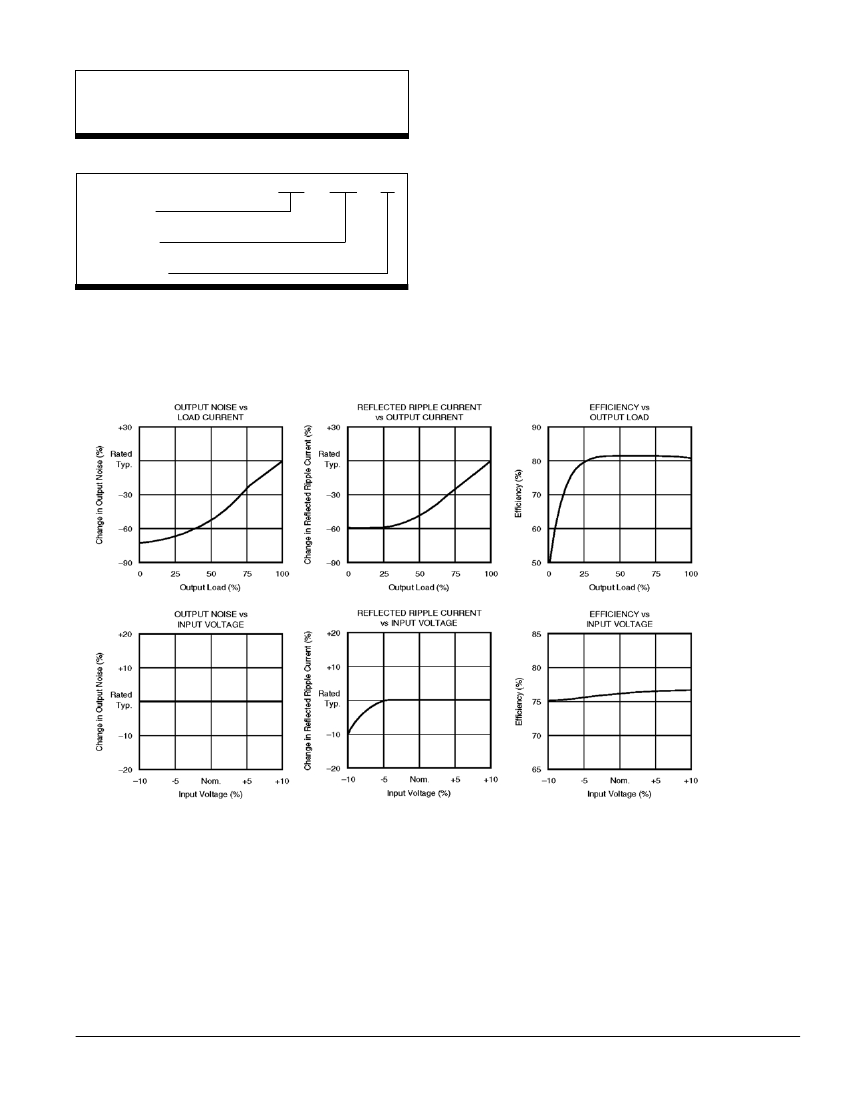

TYPICAL PERFORMANCE CURVES
T
A
= +25
°
C, Rated Input Voltage, Rated Output Current unless otherwise noted.
PWR12XX
11/98
REV C
Page 3

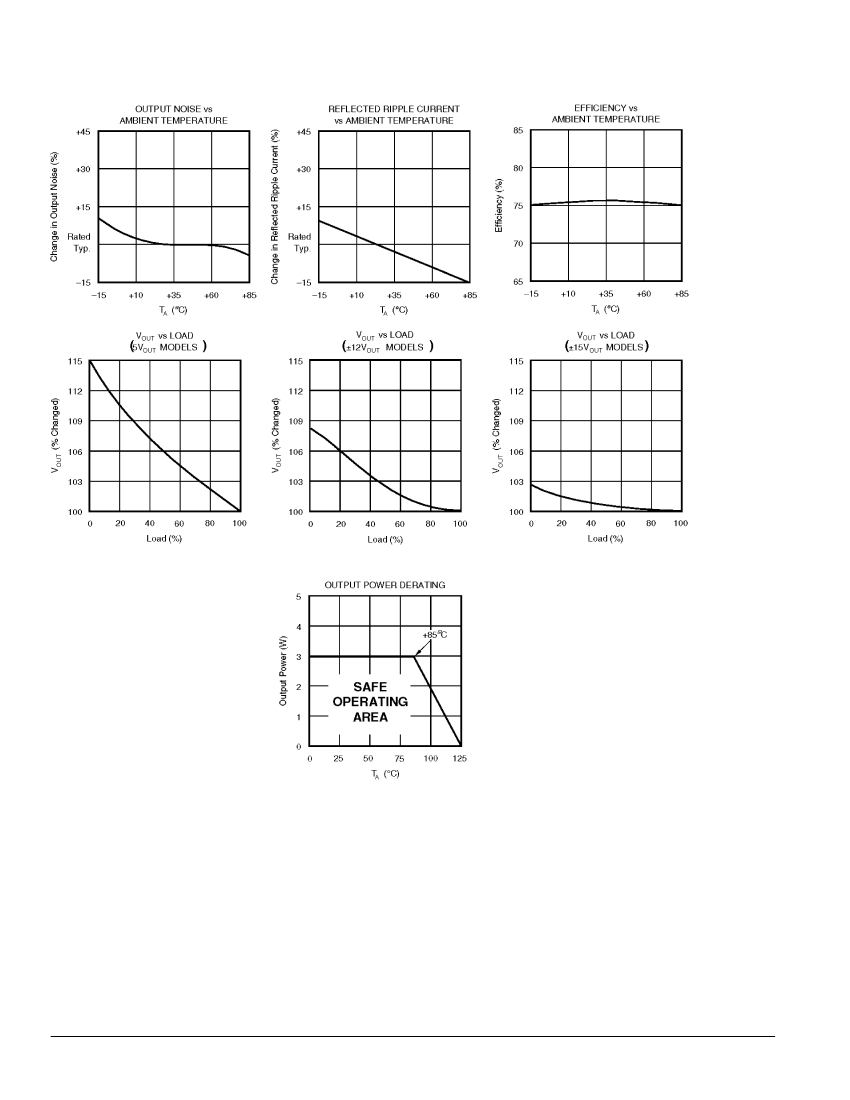

TYPICAL PERFORMANCE CURVES
T
A
= +25
°
C, Rated Input Voltage, Rated Output Current unless otherwise noted.
