20103150431P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 20103150431P

20103150431P: DescriptionElectric Fuse, Medium Time Lag Blow, 0.315A, 250VAC, 80A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size585KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

20103150431P Overview

Electric Fuse, Medium Time Lag Blow, 0.315A, 250VAC, 80A (IR), Inline/holder, ROHS COMPLIANT

20103150431P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	PRE-ARCING TIME: OPEN WITHIN 5 MS AT 1000% RATED CURRENT
Fusing characteristics	MEDIUM TIME LAG
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Installation features	INLINE/HOLDER
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	TAPE AND REEL
physical size	5.2mm x 20mm
Rated breaking capacity	80 A
Rated current	0.315 A
Rated voltage (AC)	250 V
Guideline	CUL; UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

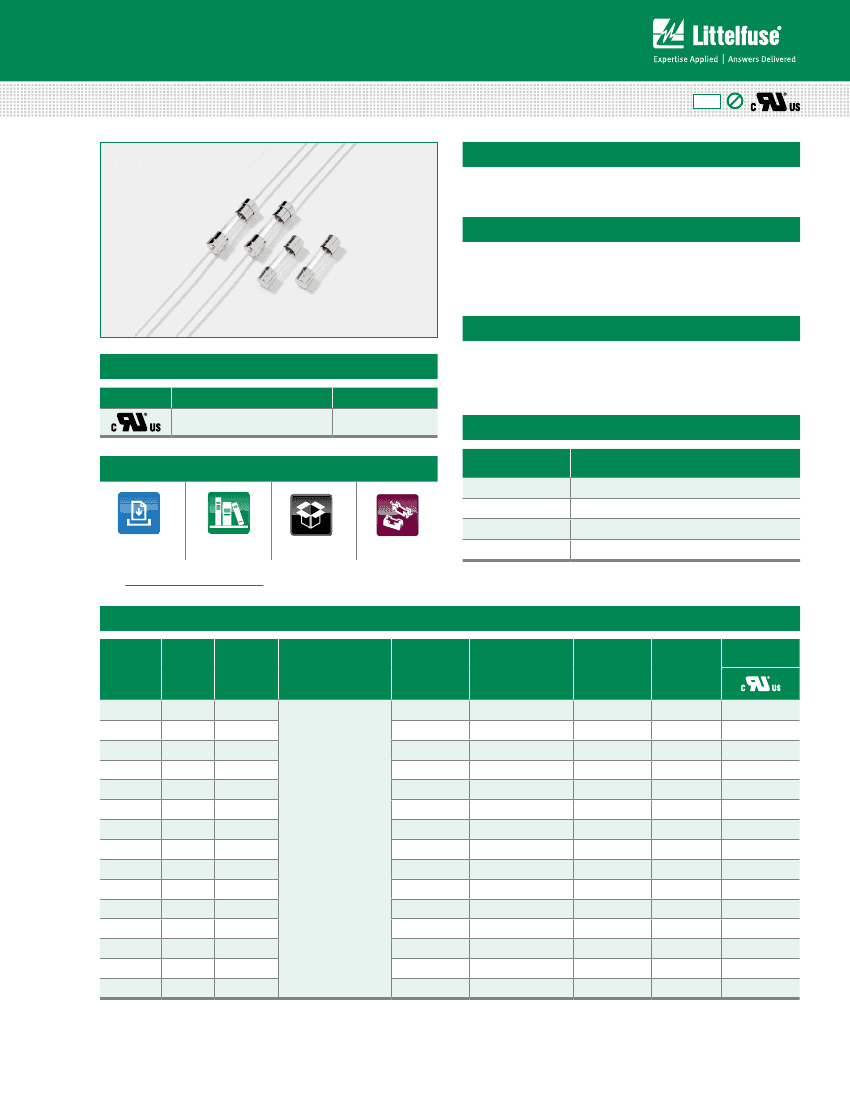

Cartridge and Axial Lead Fuses

5×20mm > Medium Acting > 201P Series

201P Series, 5×20mm, Medium–Acting Fuse

Description

RoHS

The 201P Series is a 5×20mm Medium–Acting, Time-lag,

Glass Body Cartridge Fuse.

Features

• Visual fault indication

• Direct solderable or

plug-in versions

Applications

Agency Approvals

Agency

Agency File Number

Ampere Range

• Worldwide availability

• RoHS compliant and

Lead-free

Used as supplementary protection in appliance or

utilization equipment to provide individual protection for

components or internal circuits.

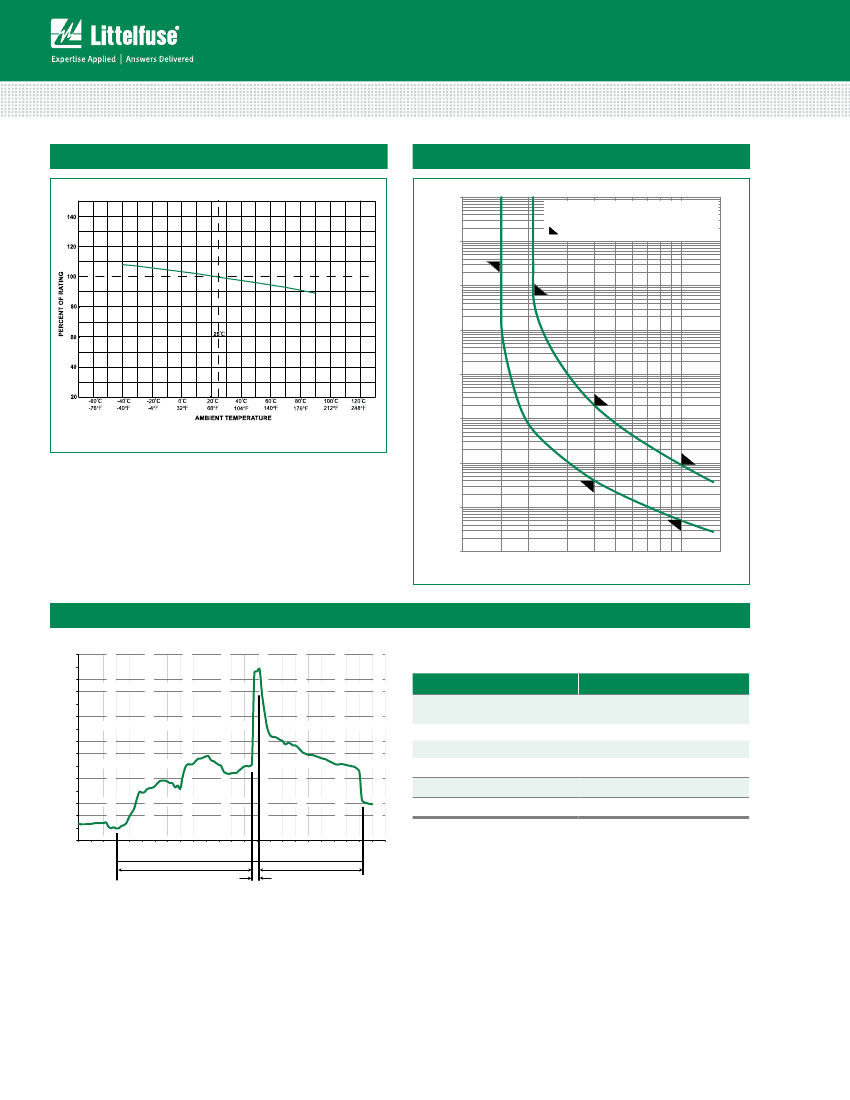

Electrical Characteristics for Series

% of Ampere

Rating

150

210

400

Opening Time

1 Hour Minimum

600 s Maximum

40 ms Minimum 2 s Maximum

5 ms Minimum 90 ms Maximum

E67006

0.050A-1.25A

Additional Information

Datasheet

Resources

Samples

Accessories

1000

For recommended fuse accessories for this product series,

see ‘Recommended

Accessories’

section.

Electrical Characteristic Specifications by Item

Amp

Code

0050

0063

0080

0100

0125

0160

0200

0250

0315

0400

0500

0630

0800

1100

1125

Amp

Rating

0.050

0.063

0.080

0.100

0.125

0.160

0.200

0.250

0.315

0.400

0.500

0.630

0.800

1.000

1.250

Voltage

Rating

250V

80A @ 250VAC

Nominal

Resistance

Cold Ohms

(mohms)

9200

7400

5330

3550

2650

1780

1250

870

590

435

160

130

Nominal

Melting Integral

10 x I

0.00900

0.01100

0.01700

0.03100

0.05700

0.08500

0.12000

0.13000

0.16000

0.28000

0.35000

0.80900

1.10000

2.00000

5.12000

Voltage

Drop 1.0 x I

max. (mV)

640

600

540

500

440

400

340

320

300

230

210

190

170

160

Power

Dissipation

1.5 x I

max. (W)

0.10000

0.20000

0.30000

0.40000

0.50000

0.60000

0.70000

0.80000

Agency

Approvals

Interrupting Rating

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Specifications are subject to change without notice. Application testing is strongly recommended.

Revised: 02/14/18

20103150431P Related Products

	20103150431P	20106300431P	20103150531P	20108000301P
Description	Electric Fuse, Medium Time Lag Blow, 0.315A, 250VAC, 80A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 0.63A, 250VAC, 80A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 0.315A, 250VAC, 80A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 0.8A, 250VAC, 80A (IR), Inline/holder, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	PRE-ARCING TIME: OPEN WITHIN 5 MS AT 1000% RATED CURRENT	PRE-ARCING TIME: OPEN WITHIN 5 MS AT 1000% RATED CURRENT	PRE-ARCING TIME: OPEN WITHIN 5 MS AT 1000% RATED CURRENT	PRE-ARCING TIME: OPEN WITHIN 5 MS AT 1000% RATED CURRENT
Fusing characteristics	MEDIUM TIME LAG	MEDIUM TIME LAG	MEDIUM TIME LAG	MEDIUM TIME LAG
body height	20 mm	20 mm	20 mm	20 mm
Body length or diameter	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	BULK
physical size	5.2mm x 20mm	5.2mm x 20mm	5.2mm x 20mm	5.2mm x 20mm
Rated breaking capacity	80 A	80 A	80 A	80 A
Rated current	0.315 A	0.63 A	0.315 A	0.8 A
Rated voltage (AC)	250 V	250 V	250 V	250 V
Guideline	CUL; UL	CUL; UL	CUL; UL	CUL; UL
surface mount	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP
