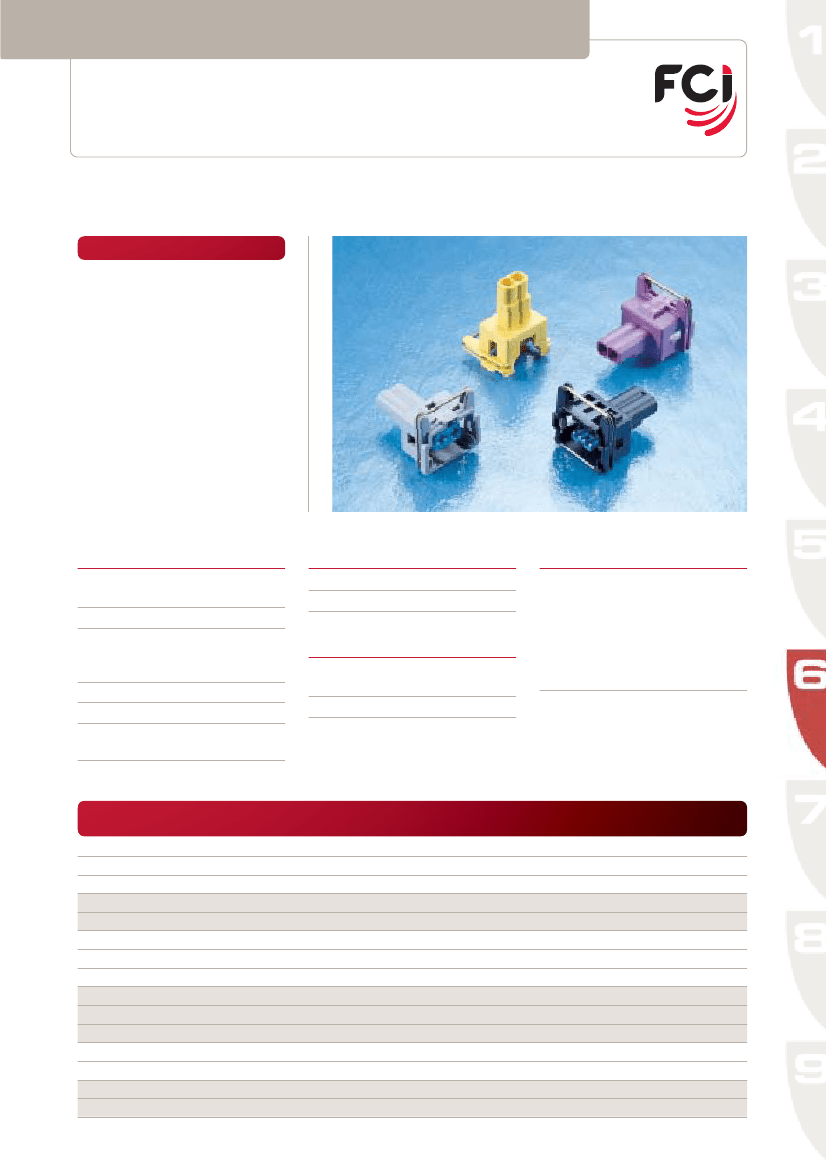

Engine Compartment Connectors
Component-to-wire connectors
DCS-1
2 way sealed female housings for 2.8 mm terminals
Features
•
5 mm pitch
•
Flat interface seal
•
Waterproof application with single
wire seal
•
Additional terminal locking device
pre-assembled on front part of the
housing
•
Metal locking feature
•
Mechanical polarization
•
Several codes available
•
Several colours available
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
•
Flat interface seal:
PBT
Silicone
Connector compatibility
•
Usable terminals:
- DCS-1 2.8 mm female terminals
(standard version)
- DCS-1 2.8 mm female terminals
(box version)
- DCS-1 2.8 mm female terminals
(power version)
•
Contact retention force:
•
Contact insertion force:
> 80 N
< 20 N for DCS-1 standard version
< 15 N for DCS-1 box version
Tooling
•
Front device removal tool:
Consult us
•
Connector mating force:
•
Sealing protection:
•
Acceptable wire range:
from 0.35 to 1.5 mm
2
< 75 N
IP 67
•
Terminal removal tool:
Consult us
Part Numbers
6 020 04 01
6 040 02 01
6 040 29 11
6 020 07 01
6 040 06 01
6 040 16 01
6 040 14 09
6 040 19 01
6 020 26 01
6 040 37 01
6 040 49 01
6 020 28 01
6 040 39 01
6 040 47 01
6 040 48 01
No.
of position
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Terminal size
2.8 mm Standard/Power
2.8 mm Standard/Power
2.8 mm Standard/Power
2.8 mm Standard/Power
2.8 mm Standard/Power
2.8 mm Standard/Power
2.8 mm Standard/Power
2.8 mm Standard/Power
2.8 mm Box
2.8 mm Box
2.8 mm Box
2.8 mm Box
2.8 mm Box
2.8 mm Box
2.8 mm Box
Waterproof
No
Yes
Yes
No
Yes
Yes
Yes
Yes
No
Yes
Yes
No
Yes
Yes
Yes
Type
Fuel injection type
Fuel injection type
Fuel injection type
90° version
90° version
Standard version
Standard version
Standard version
Fuel injection type
Fuel injection type
Fuel injection type
90° version
90° version
Standard version
Standard version
Code
No
No
No
No
No
Possible
No
No
No
No
No
No
No
Possible
No
Colour
Black
Black
Black
Black
Black
Black
Violet
Black
Black
Black
Black
Black
Black
Black
Black
6.39
Engine Compartment Connectors
Component-to-wire connectors
DCS-1
2 way sealed female housings for 2.8 mm terminals

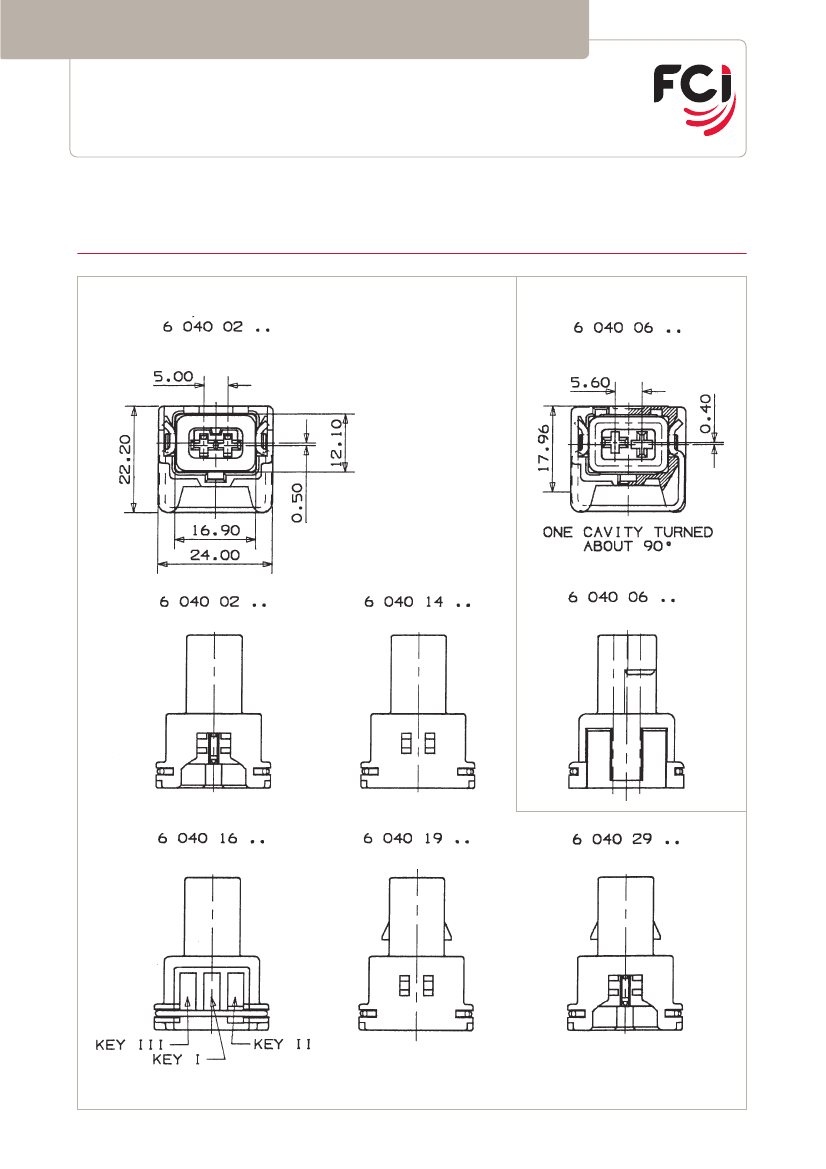

Dimensional characteristics
Female housing
6.40
Product Detail Page
Page 1 of 2
Direct Links
Cross Reference
RoHS/LF P/N search
...
Start > Search=60404701*
>
60404701
60404701
Assistant
Add to Favorites
Document & Drawing search
Application tooling
Services
Contact us
Distributor list
Pricing request
Order samples
Literature
Brochures & catalogs
Product documentation
Technical library
60404701
2 way component-to-wire Female housing
Email Datasheet
Print Datasheet
...
FCI Brings You More
Customer
Drawing
Contact our sales/technical support
Sample request
Price request
...
Specifications
General Mechanical Physical Terminal 1 Type Environmental Other Features
General
Application
Ways
Coding version
Product Type
Coding
Family
Component to Wire
2
Black
Housing
Yes
Engine Compartment Connectors
Mechanical Polarization
Sealing Protection IP 67
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showAddButton=true&productID=6040470... 11/23/2007
Product Detail Page
Page 2 of 2
Features
Metal Locking Feature
Flat Interface Seal
Additional Terminal Locking Device Pre - Assembled on Front
Part of the Housing
Waterproof Application with Single Wire Seal
Acceptable Wire Size Range from 0.35 to 1.5 mm²
No
DCS-1
2.8 mm
Yes
2.8
Standard Version - Code Possible
< 75N
Black
PBT
-40°C to+120°C
DCS-1 Box Female 2.8 mm Terminal
2
< 15N
5 mm
> 80N
Yes
Female
For more information, please contact your local sales office.
Displayed data is for information purposes only.
The supply of some products might be limited to some
customers.
Hybrid
Main Terminal family
Main Terminal size
Sealed
Terminal Size
Version
Mechanical
Connector mating force
Physical
Color
Material
Temperature (Range)
Terminal 1 Type
Terminal type 1
Ways for Terminal Type 1
Contact insertion force for Terminal Type 1
Contact Pitch for Terminal Type 1
Retention force (Contact) for Terminal Type 1
Environmental
IMDS
Other Features
Type
Disclaimer
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showAddButton=true&productID=6040470... 11/23/2007
