ADG201HS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> ADG201HS

ADG201HS: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16; Categorysemiconductor Analog mixed-signal IC; File Size284KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

ADG201HS Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16

ADG201HS Parametric

Parameter Name	Attribute value
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	16.5 V
Minimum supply/operating voltage	13.5 V
Rated supply voltage	15 V
Processing package description	0.150 INCH, SOIC-16
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
Number of inputs	1
Maximum on-time	50 ns
Maximum off time	50 ns
Analog IC other types	SGL POLE SGL THROW SWITCH
Isolation Rating in Off State	72 dB
Maximum limit analog input voltage	16.5 V
Rated negative supply voltage	-15 V
Forward conduction resistance matching rating	3 ohm
Maximum on-state resistance	50 ohm

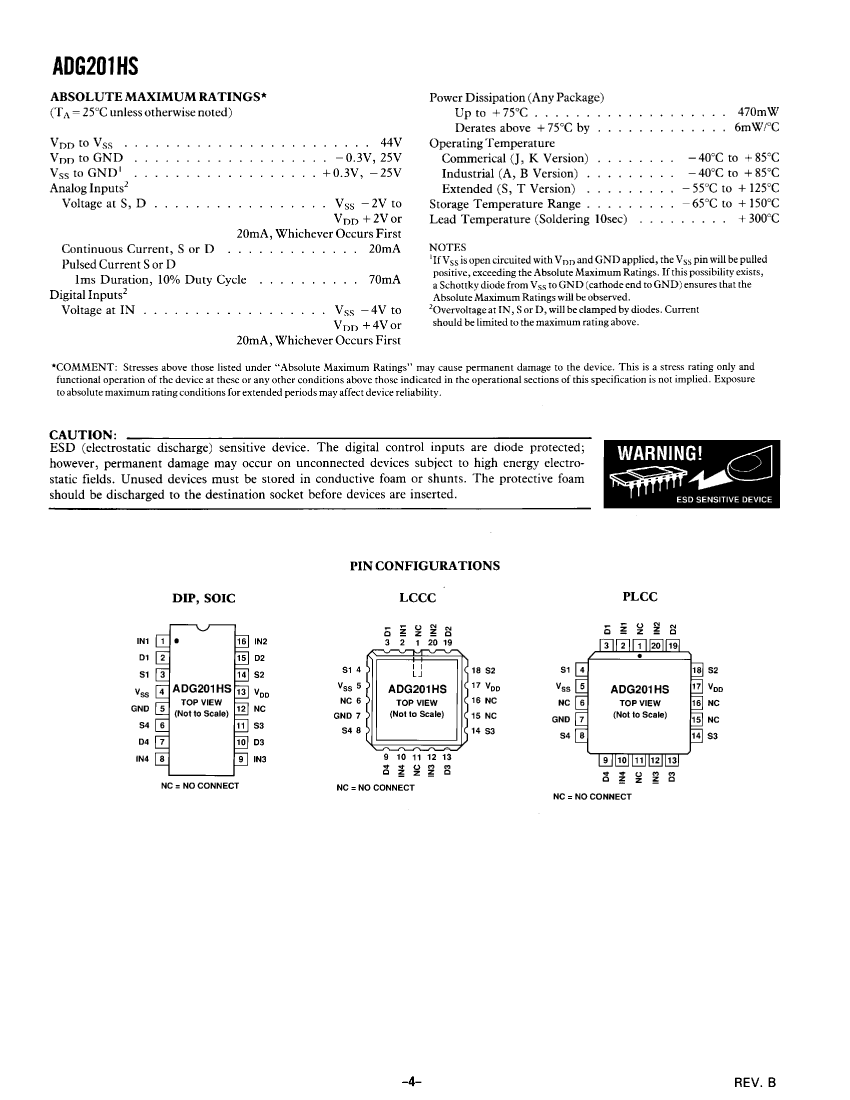

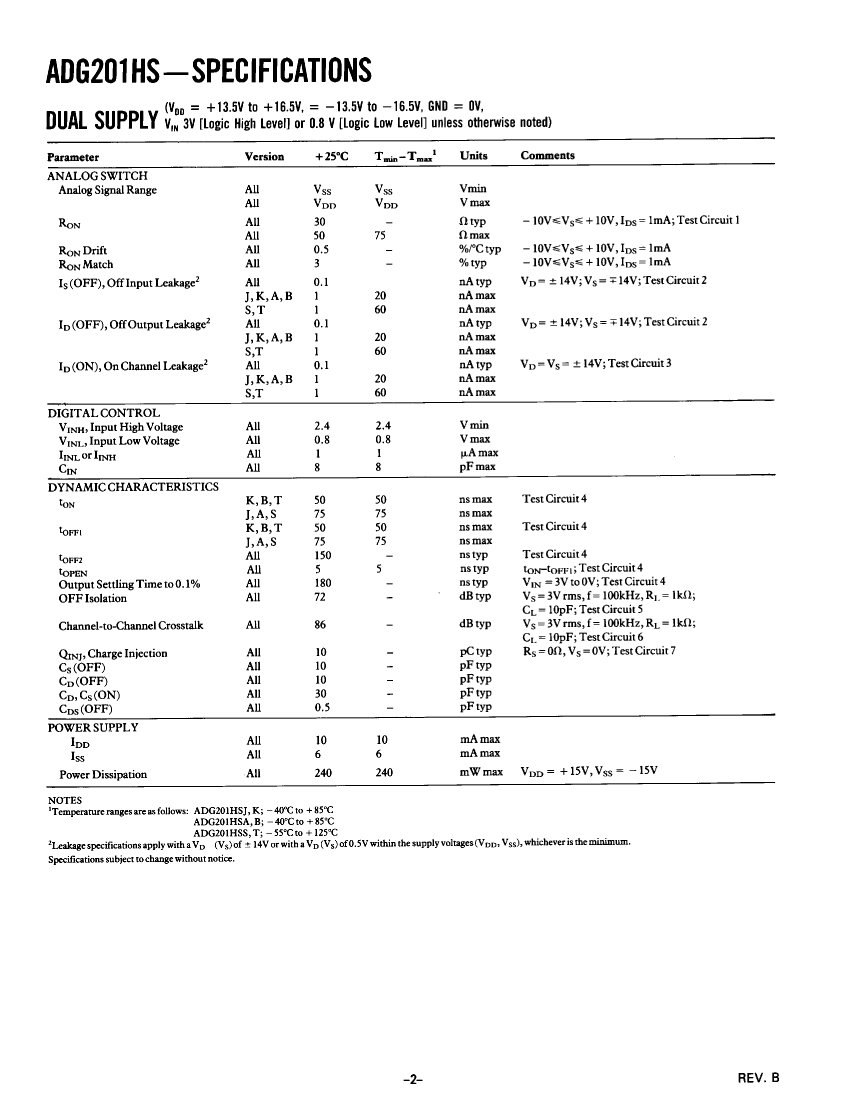

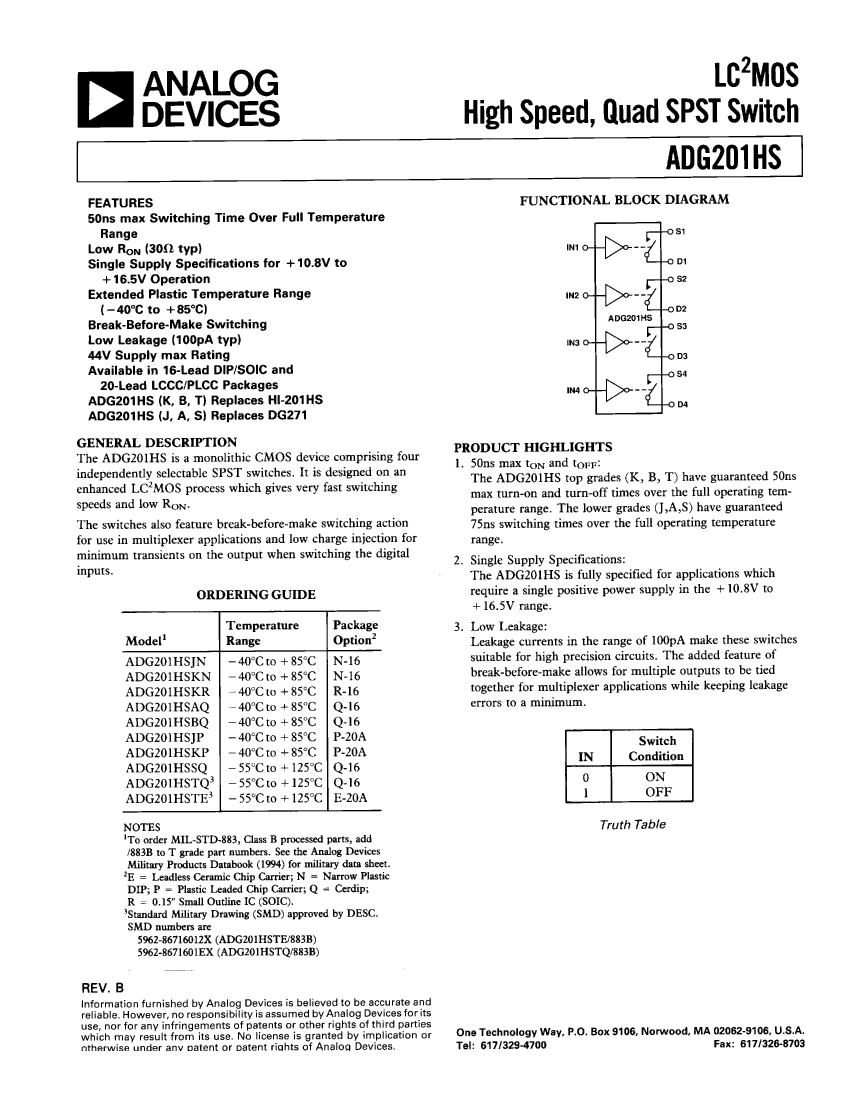

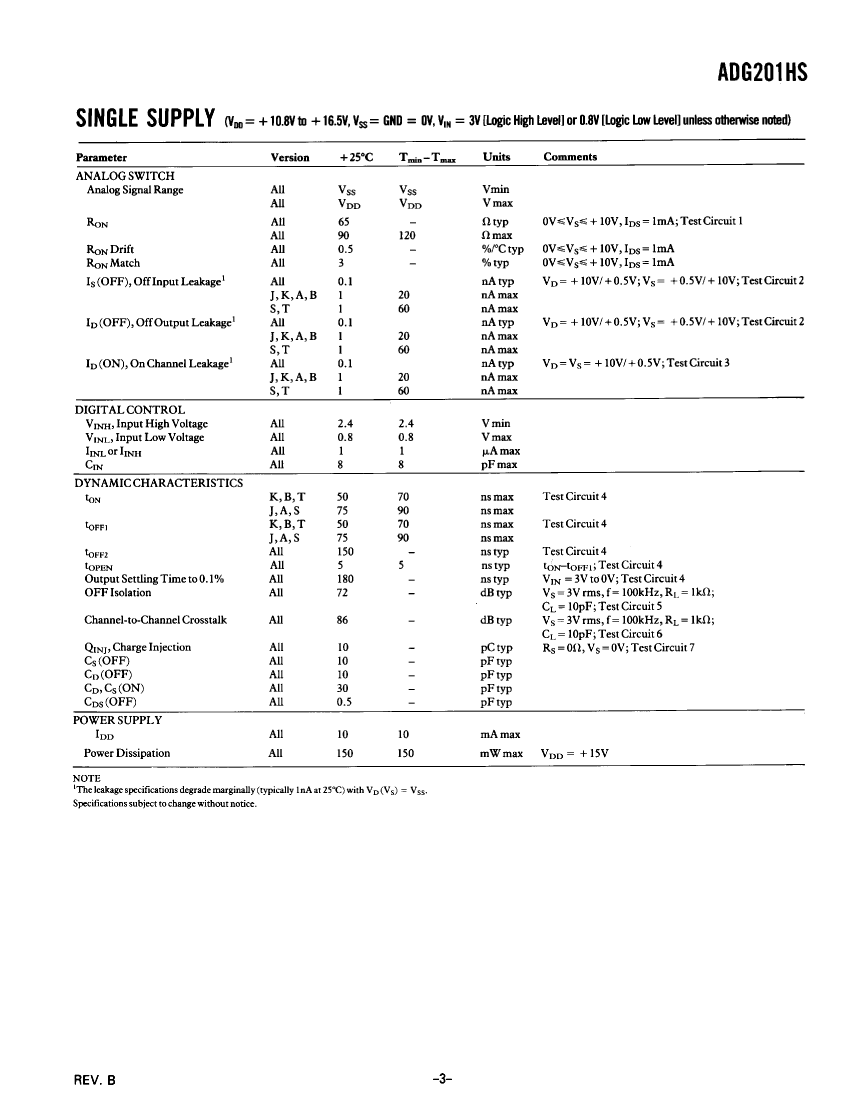

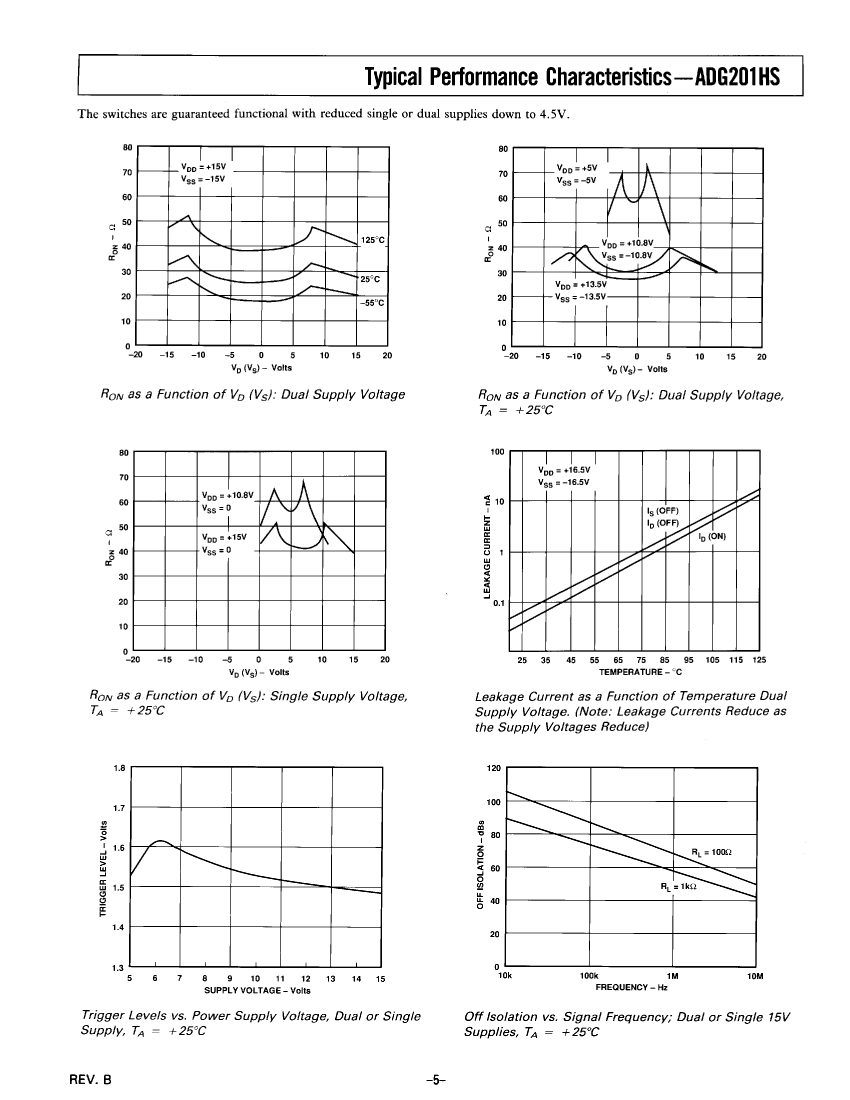

Preview

Download Datasheet

View All

ADG201HS Related Products

	ADG201HS	ADG201HSAQ	ADG201HSSQ	ADG201HSTE
Description	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20
Number of functions	4	4	4	4
Number of terminals	16	16	16	20
Maximum operating temperature	85 Cel	85 Cel	85 Cel	125 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-55 Cel
Maximum supply/operating voltage	16.5 V	16.5 V	16.5 V	16.5 V
Minimum supply/operating voltage	13.5 V	13.5 V	13.5 V	13.5 V
Rated supply voltage	15 V	15 V	15 V	15 V
Processing package description	0.150 INCH, SOIC-16	0.150 INCH, SOIC-16	0.150 INCH, SOIC-16	Ceramic, LCC-20
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE-UNCONFIRMED
Craftsmanship	CMOS	CMOS	CMOS	CMOS
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	ChipCARRIER
surface mount	Yes	Yes	Yes	Yes
Terminal form	GULL WING	GULL WING	GULL WING	NO
Terminal spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm
terminal coating	TIN LEAD	TIN LEAD	TIN LEAD	gold
Terminal location	DUAL	DUAL	DUAL	Four
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	Ceramic, Metal-SEALED COFIRED
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY
Number of inputs	1	1	1	1
Maximum on-time	50 ns	50 ns	50 ns	50 ns
Maximum off time	50 ns	50 ns	50 ns	50 ns
Analog IC other types	SGL POLE SGL THROW SWITCH	SGL POLE SGL THROW SWITCH	SGL POLE SGL THROW SWITCH	Single Pole Single Throw Switch
Isolation Rating in Off State	72 dB	72 dB	72 dB	72 dB
Maximum limit analog input voltage	16.5 V	16.5 V	16.5 V	16.5 V
Rated negative supply voltage	-15 V	-15 V	-15 V	-15 V
Forward conduction resistance matching rating	3 ohm	3 ohm	3 ohm	3 ohm
Maximum on-state resistance	50 ohm	50 ohm	50 ohm	50 ohm
