DTE32-2609BS datasheet, PDF - EEWORLD Datasheet

DTE32-2609BS: DescriptionTelecom Transformer; CategoryPower management transformer; File Size66KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric View All

DTE32-2609BS Overview

Telecom Transformer

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 0.95:1
Certification	UL; CSA
high	12.5 mm
length	10.3 mm
Manufacturer's serial number	DTE32-2609BS
Installation features	SURFACE MOUNT
physical size	10.3mm X 8.5mm X 12.5mm
main impedance	100 OHMS
secondary impedance	100 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	8.5 mm
Base Number Matches	1

ADSL Transformer

FEATURES

‧Design

to meet UL/CSA/EN60950 requirements

‧Good

total harmonic distortion characteristics

‧Low

insertion loss

‧Volume

production and automated lines

‧100

ohm line impedance

‧Meet

RoHS

Part Number

IC Manufacturer / Number Application Mechanicals Inductance

Globespan / G24

ADSL CO

SMD

750 uH

Turn Ratio

(Line:Device)

0.95:1

DTE32-2609BS

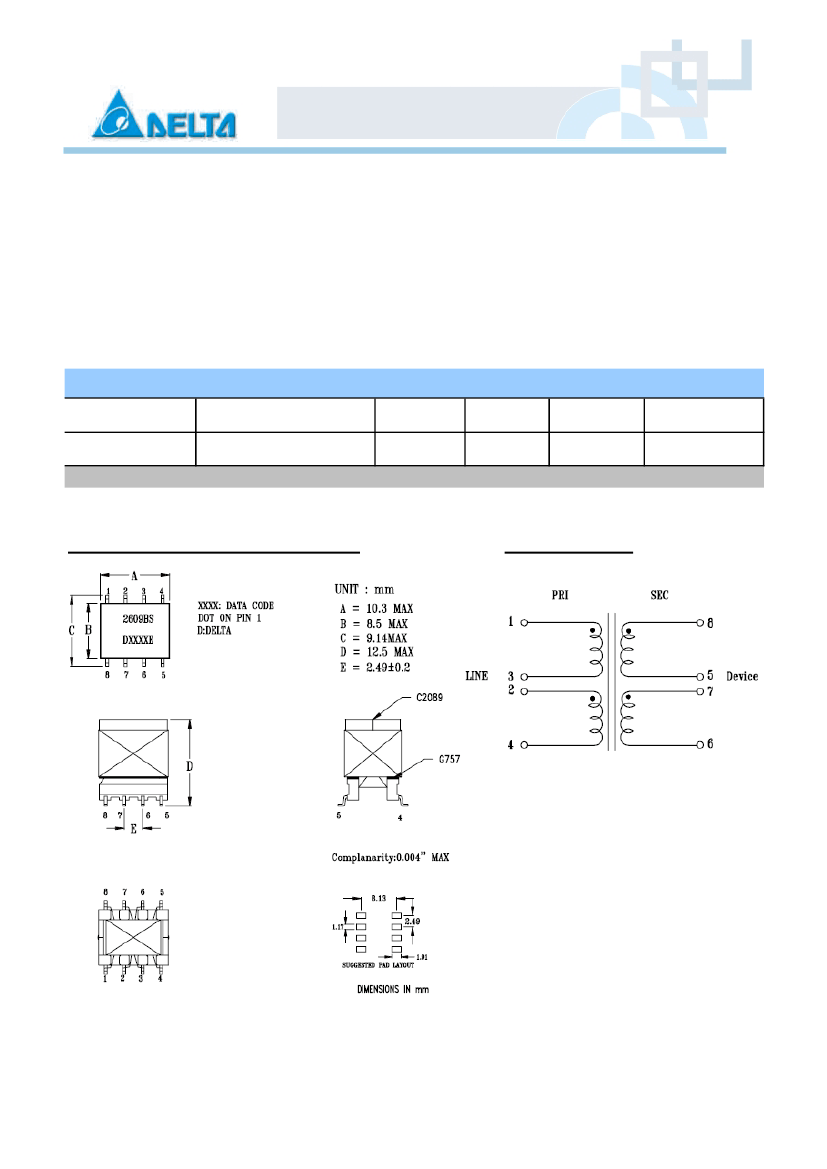

MECHANICAL CONSTRUCTION

SCHEMATICS
