MDDPGM-TTL-45-75 datasheet, PDF

MDDPGM-TTL-45-75: DescriptionPulse Generator Delay Line, 1-Func, 1-Tap, True Output, TTL, PDIP4, 0.250 INCH HEIGHT, MINI, PLASTIC, MODULE, DIP-8/4; Categorylogic logic; File Size324KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

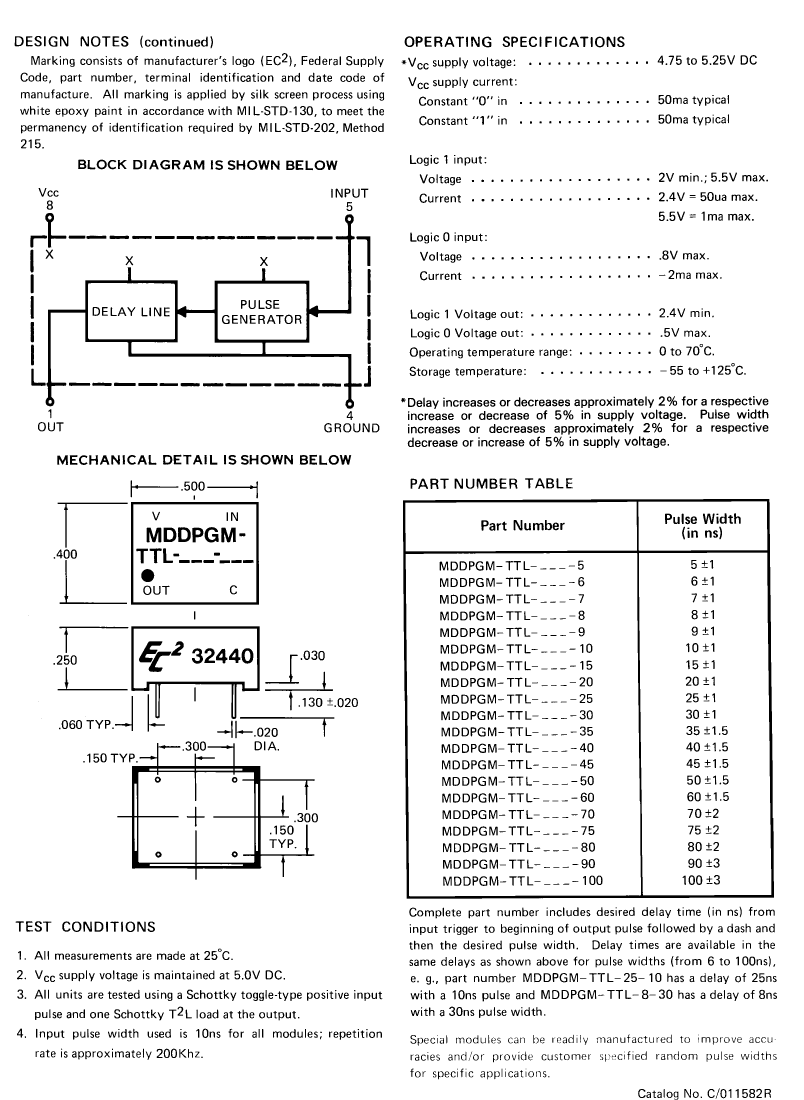

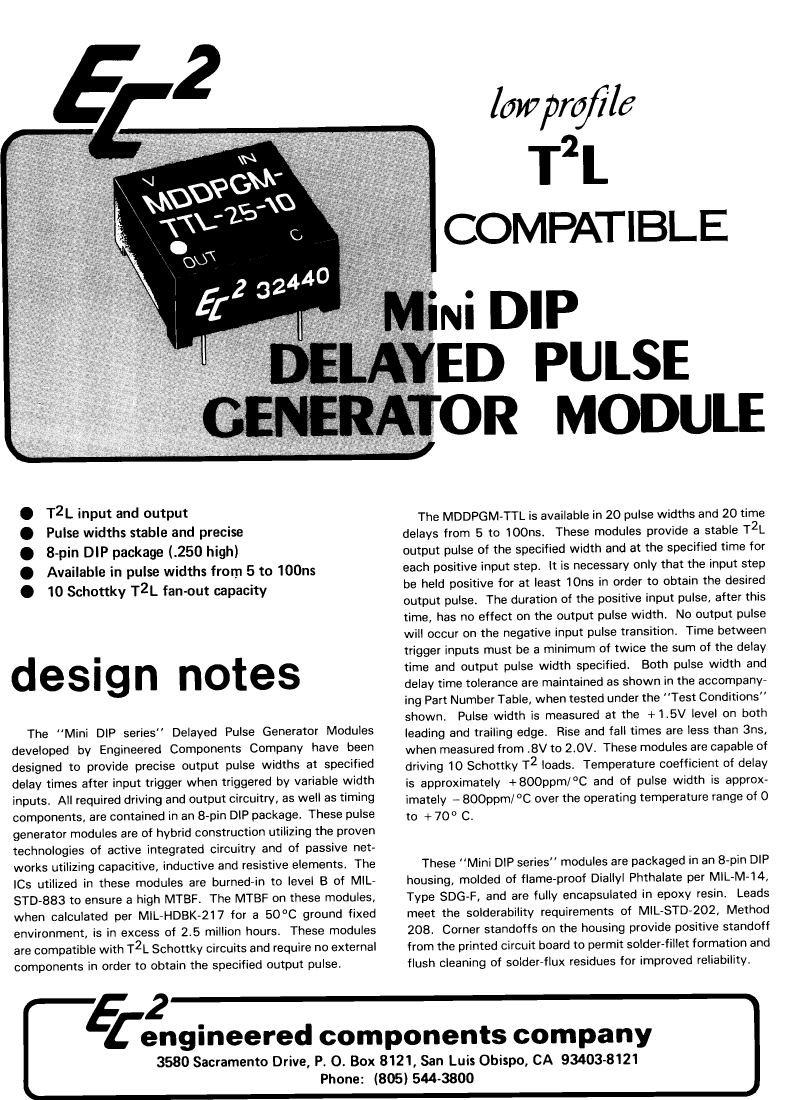

MDDPGM-TTL-45-75 Overview

Pulse Generator Delay Line, 1-Func, 1-Tap, True Output, TTL, PDIP4, 0.250 INCH HEIGHT, MINI, PLASTIC, MODULE, DIP-8/4

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	DIP,
Contacts	8/4
Reach Compliance Code	unknown
Other features	DELAY = 45NS; BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 50MA; MAX RISE TIME CAPTURED
series	TTL
Input frequency maximum value (fmax)	4.16667 MHz
JESD-30 code	R-PDIP-P4
length	12.7 mm
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
