Document 413-1

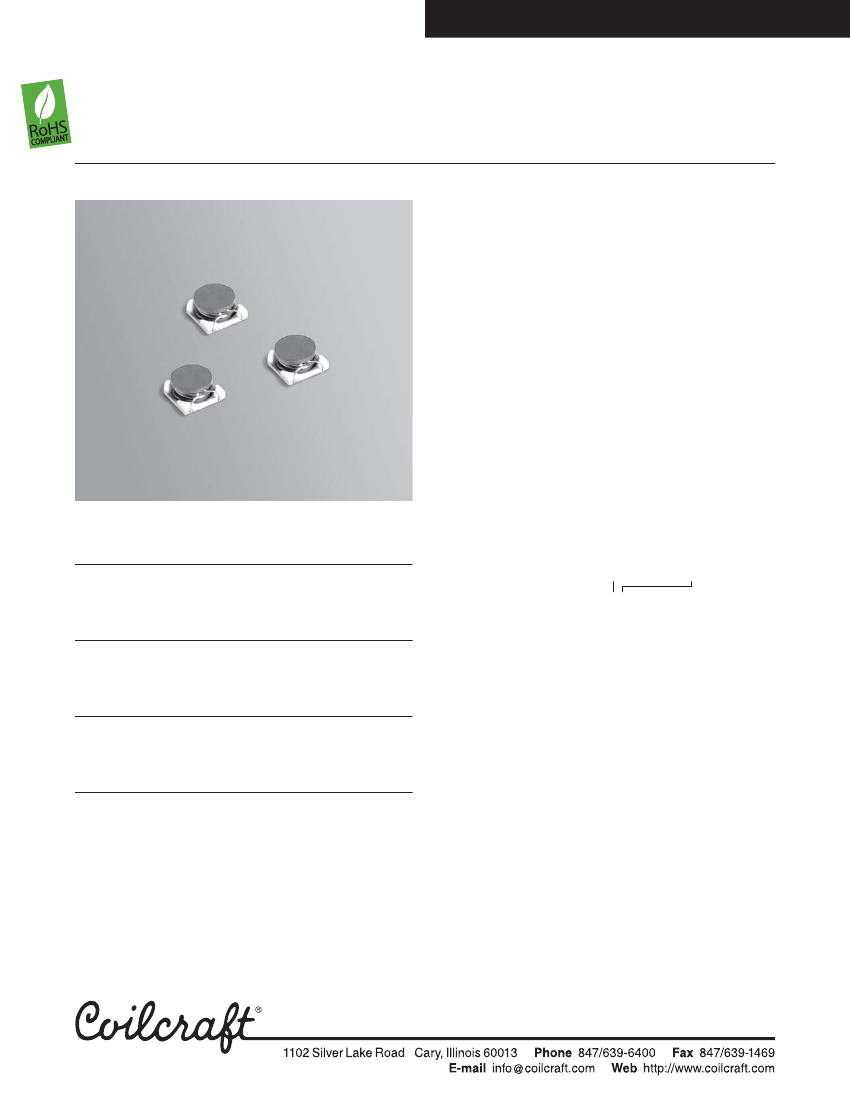

SMT Power Inductors – DO2010 Series
• Smallest power inductor, only 2 mm square and 1 mm high
• Can handle up to 2.4 A of saturating current
Designer’s Kit C399
contains 5 of each part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over silver-
platinum-glass frit. Other terminations available at additional cost.
Weight
11 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.19 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Inductance DCR
SRF
±20%
2
max
3
typ
4
Part number
1
(µH)
(Ohms) (MHz)
DO2010-501ML_
0.50
0.100 250
DO2010-681ML_
0.68
0.120 200
DO2010-801ML_
0.80
0.150 185
DO2010-102ML_
1.0
0.200 162
DO2010-152ML_
1.5
0.270 127
DO2010-202ML_
2.0
0.315 110
DO2010-222ML_
2.2
0.400 104
DO2010-332ML_
3.3
0.550
85
DO2010-472ML_
4.7
0.800
65
DO2010-682ML_
6.8
1.00
55
DO2010-822ML_
8.2
1.08
50
DO2010-103ML_
10
1.45
43
DO2010-123ML_
12
1.84
35
DO2010-153ML_
15
2.14
30
DO2010-223ML_
22
2.80
25
DO2010-333ML_
33
4.10
20
DO2010-473ML_
47
6.00
16
DO2010-683ML_
68
8.80
13
DO2010-104ML_ 100
15.7
11
DO2010-224ML_ 220
38.0
8.0
Isat
5
(A)
2.40
2.10
1.80
1.80
1.45
1.25
1.20
0.98
0.80
0.73
0.65
0.61
0.51
0.47
0.42
0.34
0.28
0.23
0.18
0.10
Irms
6
(A)
1.50
1.50
1.40
1.20
0.97
0.90
0.84
0.73
0.60
0.54
0.49
0.44
0.39
0.36
0.32
0.25
0.21
0.16
0.13
0.08
1. When ordering, please specify
termination
and
packaging
codes:
DO2010-123MLC
Termination: L
= RoHS compliant matte tin over nickel over silver-
platinum-glass frit
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (3500 parts per
full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4191A or equivalent.
5. DC current at which the inductance drops 10% (typ) from its value
without current.
6. Current that causes a 40°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.

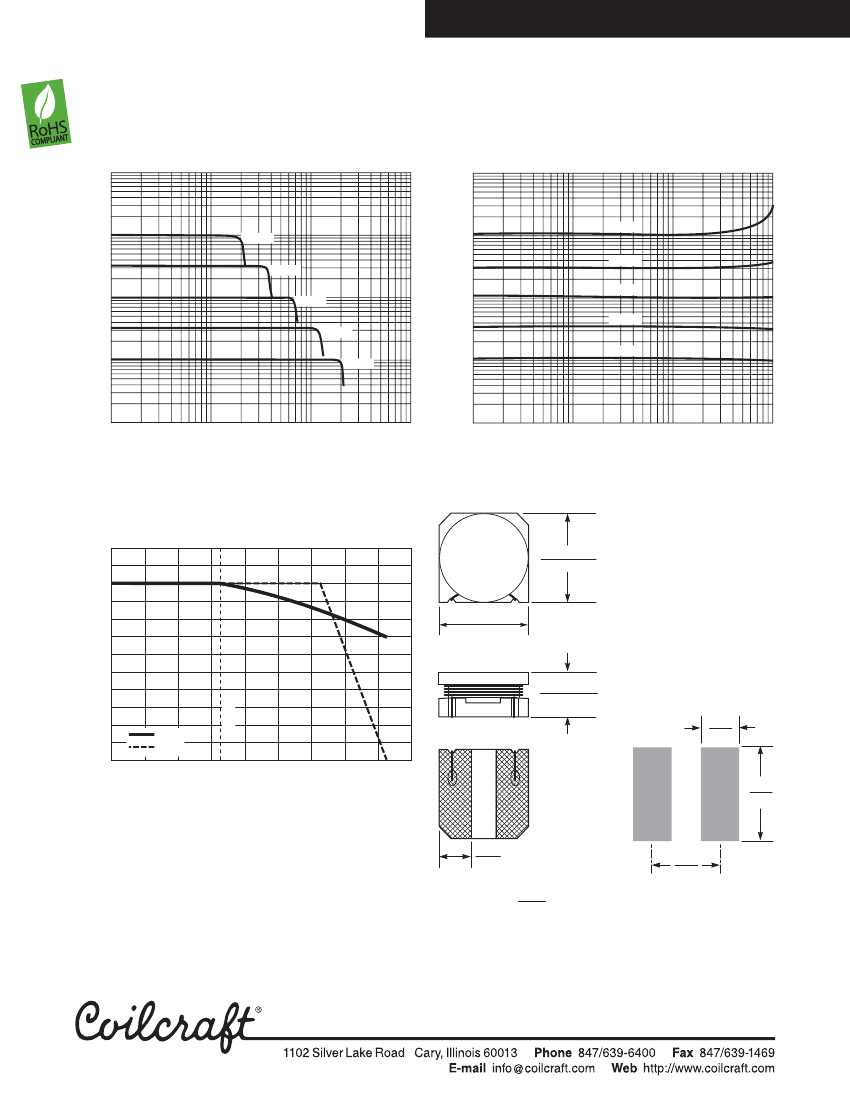

Document 413-1
Revised 10/08/08
© Coilcraft, Inc. 2009
