Ceramic SMD Automotive Grade Crystal
Model: FXA3225B Series
Page 1 of 2
RoHS Compliant
Rev. 5/28/2010
http://www.foxonline.com/need_a_sample.htm
FEATURES
•
•
•
•
•
Meets AEC-Q200 Requirements
Fundamental to 52 MHz
Temperatures to -40ºC ~ +125ºC
Seam Seal
Tape and Reel (3,000 pcs. STD)
• PART NUMBER
Learn More - Internet Required
Part Number
507B-Frequency-xxxxx
Model Number
FXA3225B
Frequency Range (MHz)
12.000 ~ 52.000
#4
Top
View
3.4 Max
#3
2.7 Max
• STANDARD SPECIFICATIONS
PARAMETERS
Frequency
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
-40 ~ +125ºC
-40 ~ +85ºC
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (C
O
)
Load Capacitance
(C
l
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
1
MARKING
#1
#2
MAX
(unless otherwise noted)
12.000 ~ 52.000 MHz
±50 PPM
1
±100 PPM
±50 PPM
1
(Customer Specified)
-40ºC ~ +125ºC
-55ºC ~ +150ºC
5pF
7pF~Series
(Customer Specified)
100µW
±5 PPM
260ºC / 10 Seconds
1
Au
Seam Seal
0.75 Max
1.0
#1
1.6
#4
Bottom
View
1.2
#3
#2
0.9
Other tolerances and stabilities available. Contact Fox Technical Support for specific requirements.
#2 and #4: Connected to lid
Frequency Range
(MHz)
12.000000 ~ 30.000000
30.000001 ~ 52.000000
Operating Mode
Fundamental
Fundamental
Max ESR
Ω
120
100
Recommended
Solder Pad Layout
1.3
1.1
0.8
#1
1
All dimensions are in millimeters.
Note: Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, etc. may vary.
The above specifications, having been carefully prepared and checked, are believed to be accurate at the time
of publication; however, no responsibility is assumed by Fox Electronics for inaccuracies.
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2010 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
Ceramic SMD Automotive Grade Crystal
Model: FXA3225B Series
Page 2 of 2
RoHS Compliant
Rev. 5/28/2010
http://www.foxonline.com/need_a_sample.htm

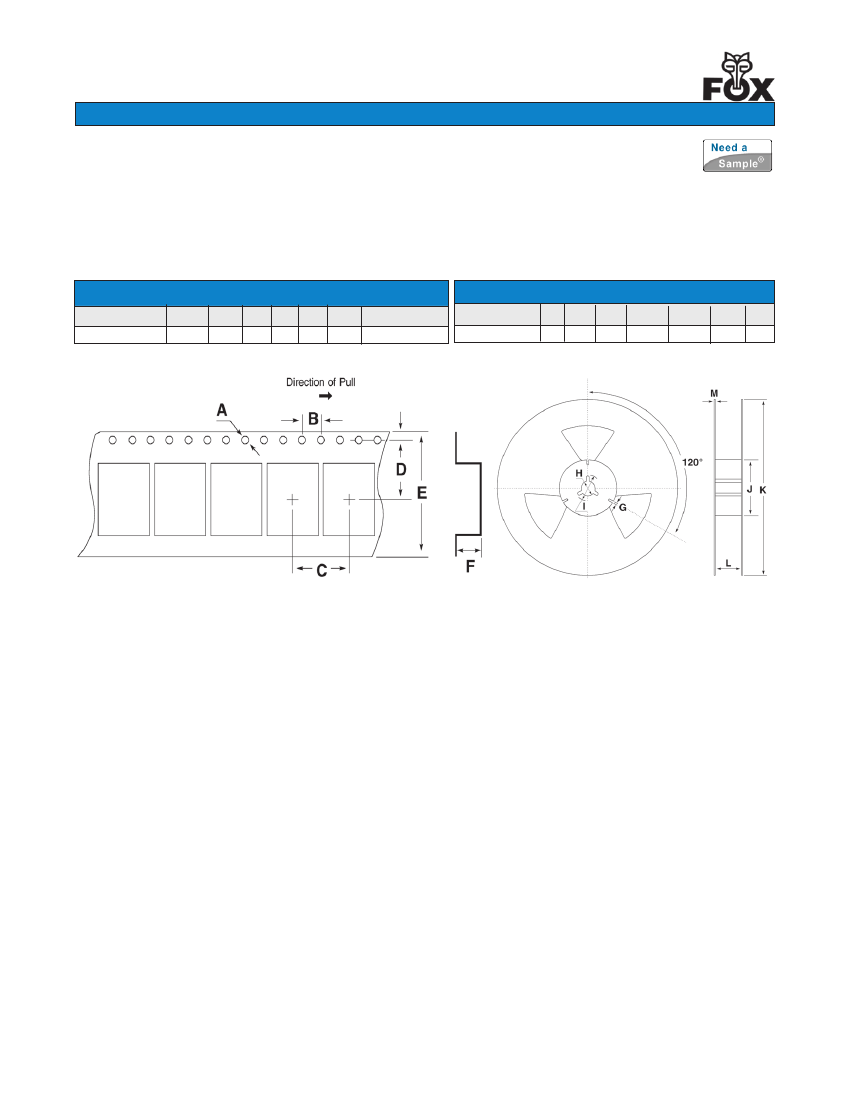

• TAPE SPECIFICATIONS
(millimeters)
MODEL
FXA3225B
A
∅1.0
B C D E
4.0 4.0 3.5 8.0
• REEL SPECIFICATIONS
(millimeters)
G H
I
J
K
L
M
2.5
∅13 ∅21 ∅60.2 ∅180
8.1 1.6
F
STD Reel QTY
MODEL
FXA3225B
1.4
3,000
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2010 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
