Operated at Commercial and Industrial Temperature Ranges.
CMOS SRAM
Revision History
Rev No.
Rev. 0.0
Rev. 1.0
History
Initial release with Preliminary.
1.1 Removed Low power Version.
1.2 Removed Data Retention Characteristics
1.3 Changed I
SB1
to 20mA
2.1 Relax D.C parameters.
Item
I
CC
12ns
15ns
20ns
Previous
190mA
185mA
180mA
Current
200mA
195mA
190mA
Draft Data
Feb. 12. 1999
Mar. 29. 1999
Remark
Preliminary
Preliminary
Rev. 2.0
Aug. 19. 1999
Preliminary
2.2 Relax Absolute Maximum Rating.
Item
Voltage on Any Pin Relative to Vss
Rev.3.0
3.1 Delete Preliminary
3.2 Update D.C parameters and 10ns part.
I
CC
-
200mA
195mA
190mA
Previous
I
sb
70mA
I
sb1
20mA
I
CC
185mA
175mA
165mA
160mA
Current
I
sb
60mA
I
sb1
10mA
Previous
-0.5 to 7.0
Current
-0.5 to Vcc+0.5
Mar. 27. 2000
Final
10ns
12ns
15ns
20ns
3.3 Added Extended temperature range
The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the
specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions on the parameters of this device. If you have any ques-
tions, please contact the SAMSUNG branch office near your office, call or contact Headquarters.
-1-
Rev 3.0
March 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM6164002C, KM6164002CE, KM6164002CI
256K x 16 Bit High-Speed CMOS Static RAM
FEATURES
• Fast Access Time 10,12,15,20ns(Max.)
• Low Power Dissipation
Standby (TTL)
: 60mA(Max.)
(CMOS) : 10mA(Max.)
Operating KM6164002C - 10 : 185mA(Max.)
KM6164002C - 12 : 175mA(Max.)
KM6164002C - 15 : 165mA(Max.)
KM6164002C - 20 : 160mA(Max.)
• Single 5.0V
±10%
Power Supply
• TTL Compatible Inputs and Outputs
• I/O Compatible with 3.3V Device
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• Center Power/Ground Pin Configuration
• Data Byte Control : LB : I/O1~ I/O8, UB : I/O9~ I/O16
• Standard Pin Configuration
KM6164002CJ : 44-SOJ-400
KM6164002CT : 44-TSOP2-400BF
KM6164002CF : 48-Fine pitch BGA with 0.75 Ball pitch
CMOS SRAM
GENERAL DESCRIPTION
The KM6164002C is a 4,194,304-bit high-speed Static Random
Access Memory organized as 262,144 words by 16 bits. The
KM6164002C uses 16 common input and output lines and has
an output enable pin which operates faster than address
access time at read cycle. Also it allows that lower and upper
byte access by data byte control(UB, LB). The device is fabri-
cated using SAMSUNG′s advanced CMOS process and
designed for high-speed circuit technology. It is particularly well
suited for use in high-density high-speed system applications.
The KM6164002C is packaged in a 400mil 44-pin plastic SOJ
or TSOP(II) forward or 48 Fine pitch BGA.
FUNCTIONAL BLOCK DIAGRAM
Clk Gen.
A
0
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
A
9
I/O
1
~I/O
8
I/O
9
~I/O
16
ORDERING INFORMATION
KM6164002C -10/12/15/20
Commercial Temp.
Extended Temp.
Industrial Temp.
KM6164002CE - 10/12/15/20
KM6164002CI -10/12/15/20
Pre-Charge Circuit
Row Select
Memory Array
1024 Rows
256 x 16 Columns
Data
Cont.
Data
Cont.
Gen.
CLK
I/O Circuit &
Column Select
A
10
A
11
A
12
A
13
A
14
A
15
A
16
A
17
WE
OE
UB
LB
CS
-2-
Rev 3.0
March 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM6164002C, KM6164002CE, KM6164002CI

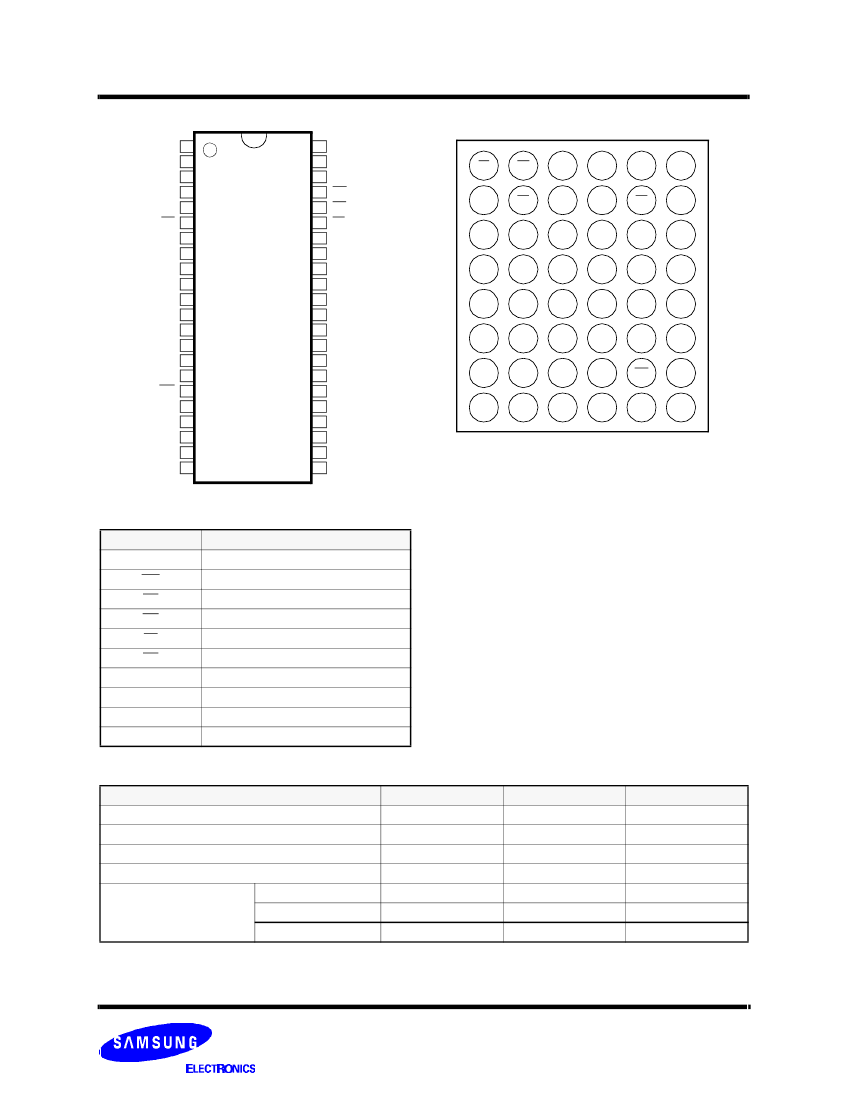

PIN CONFIGURATION
(Top View)
1
2
3
4
5
6
CMOS SRAM
A
0
A
1
A
2
A
3
A
4
CS
I/O
1
I/O
2
I/O
3
1
2
3
4
5
6
7
8
9
44 A
17
43 A
16
42 A
15
41 OE
40 UB
39 LB
38 I/O
16
37 I/O
15
36 I/O
14
D
Vss
I/O4
A17
A7
I/O12
Vcc
C
I/O2
I/O3
A5
A6
I/O11
I/O10
B
I/O1
UB
A3
A4
CS
I/O9
A
LB
OE
A0
A1
A2
N.C
I/O
4
10
Vcc 11
Vss 12
I/O
5
13
I/O
6
14
I/O
7
15
I/O
8
16
WE 17
A
5
18
A
6
19
A
7
20
A
8
21
A
9
22
SOJ/
TSOP2
35 I/O
13
34 Vss
33 Vcc
32 I/O
12
31 I/O
11
30 I/O
10
29 I/O
9
28 N.C
27 A
14
26 A
13
25 A
12
24 A
11
23 A
10
H
N.C
A8
A9
A10
A11
N.C
G
I/O8
N.C
A12
A13
WE
I/O16
F
I/O7
I/O6
A14
A15
I/O14
I/O15
E
Vcc
I/O5
N.C
A16
I/O13
Vss
48-CSP
PIN FUNCTION
Pin Name
A
0
- A
17
WE
CS
OE
LB
UB
I/O
1
~ I/O
16
V
CC
V
SS
N.C
Pin Function
Address Inputs
Write Enable
Chip Select
Output Enable
Lower-byte Control(I/O
1
~I/O
8
)
Upper-byte Control(I/O
9
~I/O
16
)
Data Inputs/Outputs
Power(+5.0V)
Ground
No Connection
ABSOLUTE MAXIMUM RATINGS*
Parameter
Voltage on Any Pin Relative to V
SS
Voltage on V
CC
Supply Relative to V
SS
Power Dissipation
Storage Temperature
Operating Temperature
Commercial
Extended
Industrial
Symbol
V
IN
, V
OUT
V
CC
P
D
T
STG
T
A
T
A
T
A
Rating
-0.5 to V
CC
+0.5
-0.5 to 7.0
1.0
-65 to 150
0 to 70
-25 to 85
-40 to 85
Unit
V
V
W
°C
°C
°C
°C
*
Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may affect reliability.
-3-
Rev 3.0
March 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM6164002C, KM6164002CE, KM6164002CI
RECOMMENDED DC OPERATING CONDITIONS*
(T
A
=0 to 70°C)
Parameter
Supply Voltage
Ground
Input High Voltage
Input Low Voltage
Symbol
V
CC
V
SS
V
IH
V
IL
Min
4.5
0
2.2
-0.5**
Typ
5.0
0
-
-
Max
5.5
0
V
CC
+0.5***
0.8
Unit
V
V
V
V
CMOS SRAM
* The above parameters are also guaranteed at industrial temperature range.
** V
IL
(Min) = -2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA
.
*** V
IH
(Max) = V
CC
+ 2.0V a.c (Pulse Width
≤
8ns) for I
≤
20mA.
DC AND OPERATING CHARACTERISTICS*
(T
A
=0 to 70°C, Vcc= 5.0V±10%, unless otherwise specified)
Parameter
Input Leakage Current
Output Leakage Current
Operating Current
Symbol
I
LI
I
LO
I
CC
V
IN
=V
SS
to V
CC
CS=V
IH
or OE=V
IH
or WE=V
IL
V
OUT
= V
SS
to V
CC
Min. Cycle, 100% Duty
CS=V
IL,
V
IN
=V
IH
or V
IL,
I
OUT
=0mA
Com.
10ns
12ns
15ns
20ns
Ext.
Ind.
10ns
12ns
15ns
20ns
Standby Current
I
SB
I
SB1
Output Low Voltage Level
Output High Voltage Level
V
OL
V
OH
V
OH1**
Min. Cycle, CS=V
IH
f=0MHz, CS≥V
CC
-0.2V,
V
IN
≥V
CC
-0.2V or V
IN
≤0.2V
I
OL
=8mA
I
OH
=-4mA
I
OH1
=-0.1mA
Test Conditions
Min
-2
-2
-
-
-
-
-
-
-
-
-
-
-
2.4
-
Max
2
2
185
175
165
160
200
190
180
175
60
10
0.4
-
3.95
V
V
V
mA
Unit
µA
µA
mA
* The above parameters are also guaranteed at extended and industrial temperature range.
** V
CC
=5.0V±5%
,
Temp.=25°C.
CAPACITANCE*
(T
A
=25°C, f=1.0MHz)
Item
Input/Output Capacitance
Input Capacitance
* Capacitance is sampled and not 100% tested.
Symbol
C
I/O
C
IN
Test Conditions
V
I/O
=0V
V
IN
=0V
MIN
-
-
Max
8
7
Unit
pF
pF
-4-
Rev 3.0
March 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM6164002C, KM6164002CE, KM6164002CI
AC CHARACTERISTICS
(T
A
=0 to 70°C, V
CC
=5.0V±10%, unless otherwise noted.)
TEST CONDITIONS*
Parameter
Input Pulse Levels
Input Rise and Fall Times
Input and Output timing Reference Levels
Output Loads
* The above test conditions are also applied at industrial temperature range.
CMOS SRAM
Value
0V to 3V
3ns
1.5V
See below
Output Loads(A)
Output Loads(B)
for t
HZ
, t
LZ
, t
WHZ
, t
OW
, t
OLZ
& t
OHZ
+5.0V
R
L
= 50Ω
D
OUT
V
L
= 1.5V
Z
O
= 50Ω
30pF*
480Ω
D
OUT
255Ω
5pF*
* Capacitive Load consists of all components of the
test environment.
* Including Scope and Jig Capacitance
READ CYCLE*
KM6164002C-10
KM6164002C-12
KM6164002C-15
KM6164002C-20
Parameter
Read Cycle Time
Address Access Time
Chip Select to Output
Output Enable to Valid Output
UB, LB Access Time
Chip Enable to Low-Z Output
Output Enable to Low-Z Output
UB, LB Enable to Low-Z Output
Chip Disable to High-Z Output
Output Disable to High-Z Output
UB, LB Disable to High-Z Output
Output Hold from Address
Symbol
t
RC
t
AA
t
CO
t
OE
t
BA
t
LZ
t
OLZ
t
BLZ
t
HZ
t
OHZ
t
BHZ
t
OH
Min
10
-
-
-
-
3
0
0
0
0
0
3
Max
-
10
10
5
5
-
-
-
5
5
5
-
Min
12
-
-
-
-
3
0
0
0
0
0
3
Max
-
12
12
6
6
-
-
-
6
6
6
-
Min
15
-
-
-
-
3
0
0
0
0
0
3
Max
-
15
15
7
7
-
-
-
7
7
7
-
Min
20
-
-
-
-
3
0
0
0
0
0
3
Max
-
20
20
9
9
-
-
-
9
9
9
-
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at extended and industrial temperature range.
Do you have any friends who studied computer science abroad and continued to develop embedded systems? Can you share their experiences? What do you think of studying embedded systems abroad? Some peop...
I have a computer, a remote control car and a remote control (the simplest joystick to control the front, back, left, and right). Now I want to connect the computer to the remote control to control th...
I downloaded the CMarkup class from the Internet and implemented the writing and reading of XML files in EVC. However, the XML files generated by the program written in VC6.0 using this class cannot b...
Smoothly complete your video processing application through reference design : https://training.eeworld.com.cn/course/2140Wouldn't it be great if you could develop your own video processing applicatio...
C:\WINCE600\PUBLIC\SHELL\OAK\HPC\EXPLORER\MAIN\desktop.cppbool CDesktopWnd::Create()
{IShellFolder*pSHF;FOLDERSETTINGS fs;RECT rc;HRESULT hr = E_FAIL;// Get a shell folder for the desktophr = SHGetDes...
This is a single-key bistable circuit I bought from Taobao. After copying it, I found that it can only be monostable. Q12 will output when power is turned on. What's the problem?...
Aromatic gases are widely present in food, medicine, cosmetics and various daily chemical products, such as snacks, liquor, spices, Chinese herbal medicines, plasters, perfumes, soaps, shampoos, et...[Details]
VP2188 is a color STN LCD module produced by Jingdian Pengyuan. This module is a dot matrix transmissive color STN display screen with a color scale of 65 k colors and white LED backlight. Its core...[Details]
Problems such as the depletion of natural resources, air pollution, traffic congestion, and rising fossil fuel prices have forced societies and individuals to seek alternative means of transportati...[Details]
OC faults may be the most frequent and the most frequent of all faults in the inverter. They alarm during the startup process, during the shutdown process, during operation, and even when powered o...[Details]
Motors, especially those with brushes, generate a lot of noise. This noise must be dealt with if the appliance is to meet the requirements of EMC standards. The means to solve EMC are nothing more ...[Details]
Abstract: Aiming at the needs of coal-rock acoustic emission signal monitoring system, a data acquisition circuit with 24-bit resolution and 16-channel synchronous data acquisition function is desi...[Details]
Preface
In recent years, white light LEDs have gradually replaced incandescent bulbs and fluorescent lamps because they have unparalleled advantages over traditional light sources in terms...[Details]
0 Introduction
With the rapid development of social economy and science and technology, electric locomotives, subways and electric vehicles will be widely used. The power conversion and cont...[Details]
Temperature compensated quartz crystal oscillator (TCXO) is widely used as a high-precision frequency source in communication systems, radar navigation systems, precision measurement and control sy...[Details]
LED is the abbreviation of the English word. Its main meanings are: LED = Light Emitting Diode, a solid-state semiconductor device that can convert electrical energy into visible light. It can dire...[Details]
Measurement compatibility
It is very important to ensure the compatibility between the pressure sensor and its actual application. Before making a pressure sensor selection, the fo...[Details]
1. Introduction
Stepper motor is a basic component that converts electrical energy into kinetic energy. It has been widely used in a variety of electromechanical equipment, such as various machine...[Details]
Stepper motors have been widely used in automatic or semi-automatic equipment such as CNC machine tools, medical equipment, and instruments. The usual way to control stepper motors with computers i...[Details]
Stepper motors, also called steppers, use the principles of electromagnetism to convert electrical energy into mechanical energy and have been used since the 1920s. With the increasing popularity o...[Details]
1. Introduction
The advancement of USB technology makes designers prefer USB interfaces in PC peripheral development. However, existing
virtual instrument
development platforms such...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
