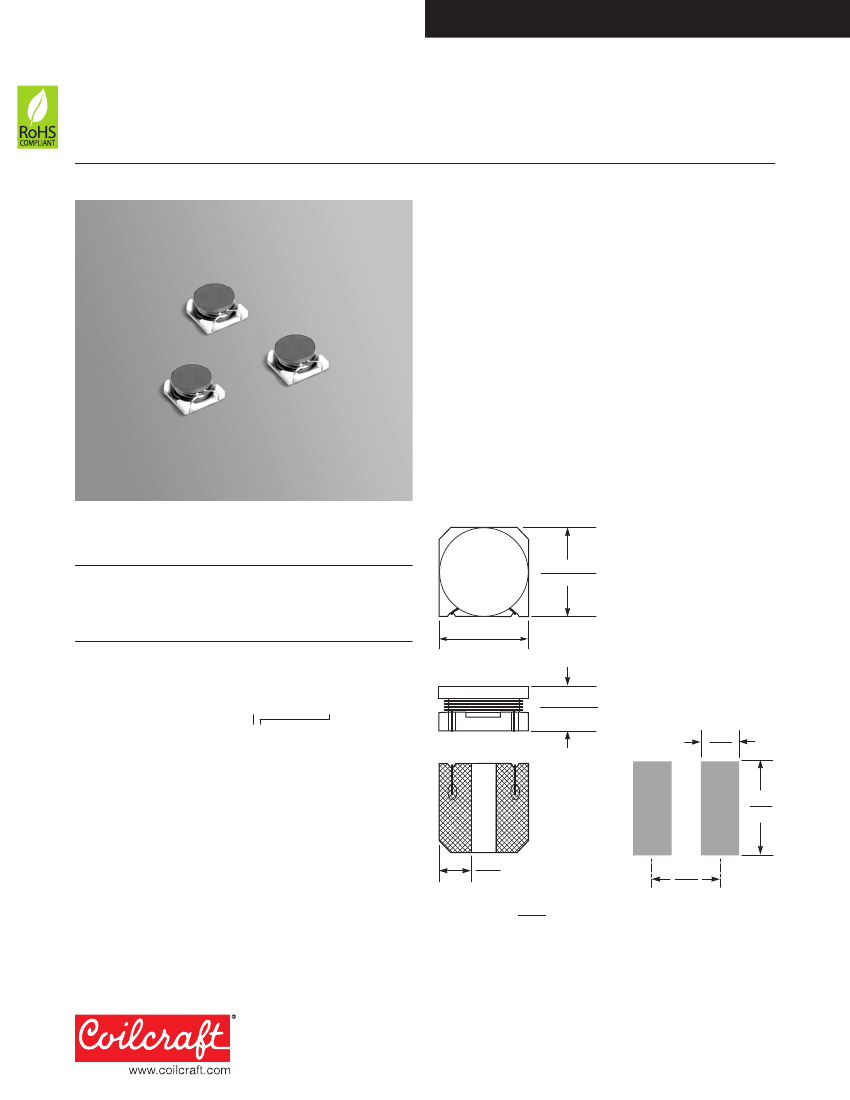

Document 413-1
SMT Power Inductors – DO2010
• Smallest power inductor, only 2 mm square and 1 mm high
• Can handle up to 0.51 A of saturating current
Designer’s Kit C399
contains 5 of each part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over silver-
platinum-glass frit. Other terminations available at additional cost.
Weight
11 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.19 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Inductance DCR
SRF
±20%
2
max
3
typ
4
1
Part number
(µH)
(Ohms) (MHz)
DO2010-123ML_
12
1.84
35
DO2010-153ML_
15
2.14
30
DO2010-223ML_
22
2.80
25
DO2010-333ML_
33
4.10
20
DO2010-473ML_
47
6.00
16
DO2010-683ML_
68
8.80
13
DO2010-104ML_
100
15.7
11
DO2010-224ML_
220
38.0
8.0
Isat
5
(A)
0.51
0.47
0.42
0.34
0.28
0.23
0.18
0.10
Irms
6
(A)
0.39
0.36
0.32
0.25
0.21
0.16
0.13
0.08
0.079 ±0.008
2,0 ±0,2
0.079 ±0.008
2,0 ±0,2
1. When ordering, please specify
termination
and
packaging
codes:
DO2010-123MLC
Termination: L
= RoHS compliant matte tin over nickel over silver-
platinum-glass frit
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (3500 parts per
full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4191A or equivalent.
5. DC current at which the inductance drops 10% (typ) from its value with-
out current.
6. Current that causes a 40°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
0.039 ±0.004
1,0 ±0,1
Recommended
Land Pattern
0.035
0,89
0.087
2,20
0.026
0,65
0.063
1,60
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 413-1
Revised 12/27/10
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 413-2
SMT Power Inductors – DO2010 Series
Typical L vs Current
1000
Typical L vs Frequency
1000
100
100 µH
47 µH
22 µH
100
100 µH
47 µH
22 µH
10
12 µH
10
12 µH
1
0.01
0.1
1
Current (A)
1
10
0.01
0.1
Frequency (MHz)
1
10
Typical Current Derating
120
110
Percent of rated current
100
90
80
70
60
50
40
20
10
0
Isat
Irms
-40
-20
0
20
25°C
40
30
60
80
100
120 140
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 413-2
Revised 12/27/10
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
