JANTXV2N5680 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> JANTXV2N5680

JANTXV2N5680: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size161KB，3 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

JANTXV2N5680 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTXV2N5680	-	-	View	Buy Now

JANTXV2N5680 Overview

Small Signal Bipolar Transistor, 1A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, TO-39, 3 PIN

JANTXV2N5680 Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
package instruction	TO-39, 3 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	120 V
Configuration	SINGLE
Minimum DC current gain (hFE)	5
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
Guideline	MIL-19500/582
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON

Preview

Download Datasheet

View All

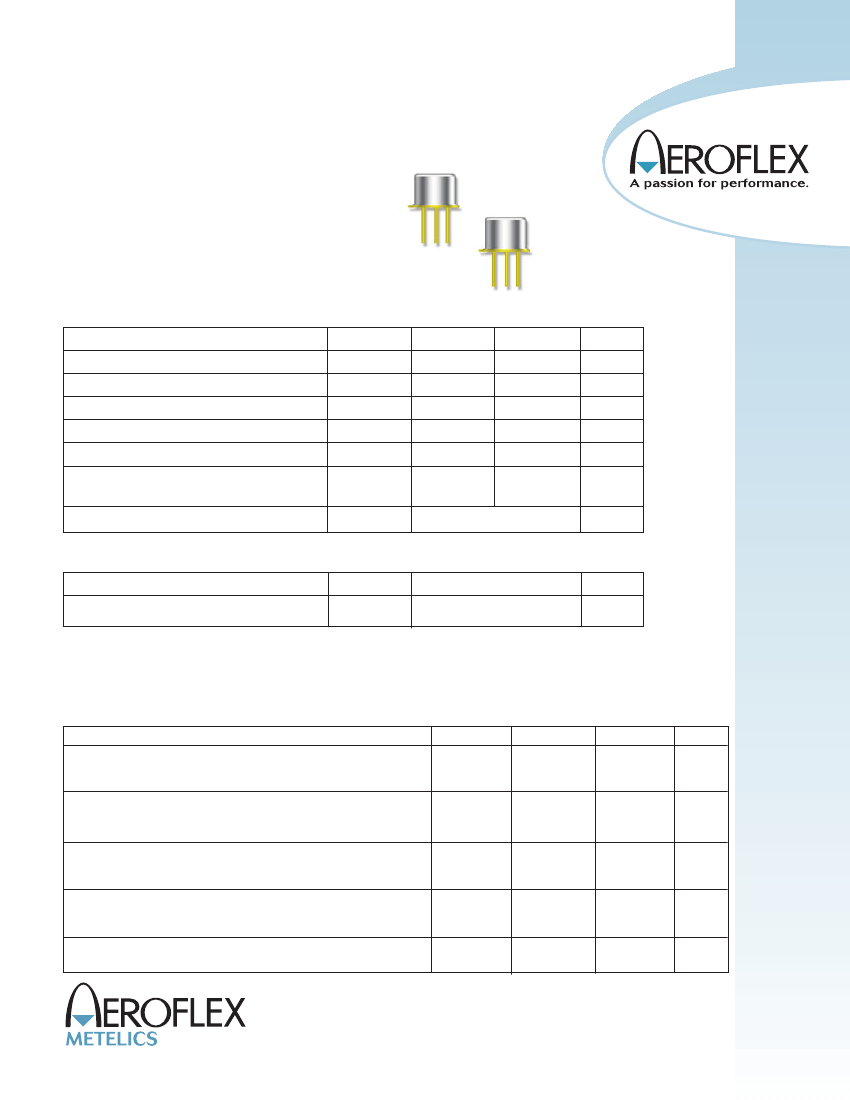

PNP Power Silicon Transistor

2N5679 & 2N5680

Features

•

Available in JAN, JANTX and JANTXV

per MIL-PRF-19500/582

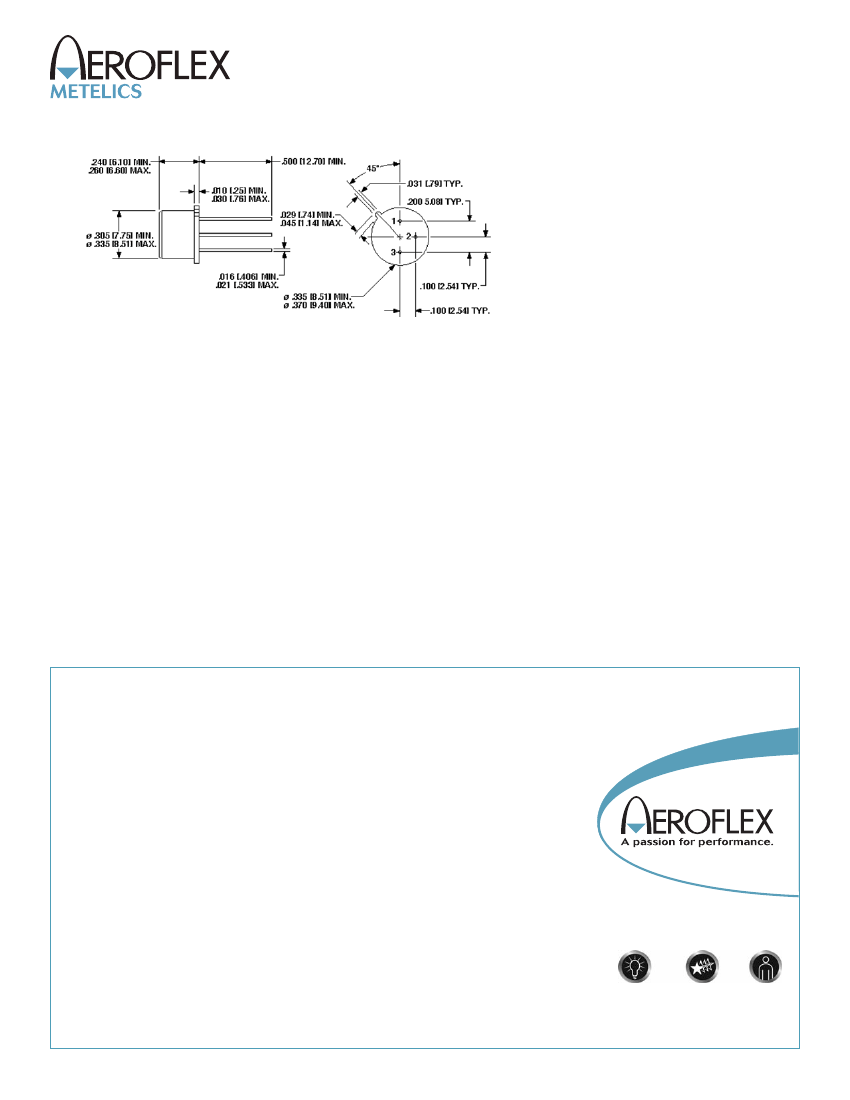

TO-39 (TO-205AD) Package

Maximum Ratings (TA = 25°C unless otherwise noted)

Ratings

Collector - Emitter Voltage

Collector - Base Voltage

Emitter - Base Voltage

Collector Current

Base Current

Total Power Dissipation @ TA = +25 °C

@ TC = +100 °C

Operating & Storage Temperature Range

Symbol

VCEO

VCBO

VEBO

Top, Tstg

2N5679

100

4.0

1.0

0.5

1.0

10.0

2N5680

120

4.0

1.0

0.5

1.0

10.0

Units

Vdc

Adc

°C

-65 to +200

Thermal Characteristics

Characteristics

Thermal Resistance, Junction-to-Case

Symbol

θJC

Maximum

7.0

Unit

°C/W

1) Derate linearly 5.7 mW/°C for TA > +25 °C

2) Derate linearly 57 mW/°C for TC > +25 °C

Electrical Characteristics (TA = 25°C unless otherwise noted)

OFF Characteristics

Collector - Emitter Breakdown Voltage

IC = 100 mAdc

2N5679

2N5680

Collector - Emitter Cutoff Current

VCE = 40 Vdc

VCE = 60 Vdc

Collector - Emitter Cutoff Current

VCE = 60 Vdc, VBE = 1.5 Vdc

VCE = 80 Vdc, VBE = 1.5 Vdc

Collector - Base Cutoff Current

VCB = 60 Vdc

VCB = 80 Vdc

Emitter - Base Cutoff Current

VEB = 7.0 Vdc

2N5679

2N5680

2N5679

2N5680

2N5679

2N5680

Symbol

V(BR)CEO

Mimimum

---

Maximum

---

Units

Vdc

ICEO

300

100

μAdc

ICEX

---

nAdc

ICBO

---

nAdc

IEBO

---

nAdc

Revision Date: 2/7/2014
