PPG-312F-9MC5: DescriptionPulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,; Categorylogic logic; File Size51KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

PPG-312F-9MC5 Overview

Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,

PPG-312F-9MC5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Reach Compliance Code	compliant
Other features	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK
series	F
Input frequency maximum value (fmax)	0.0271098 MHz
JESD-30 code	R-XDSO-G40
JESD-609 code	e3
length	52.832 mm
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	4095
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	200 mA
programmable delay line	YES
Certification status	Not Qualified
Maximum seat height	7.4168 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

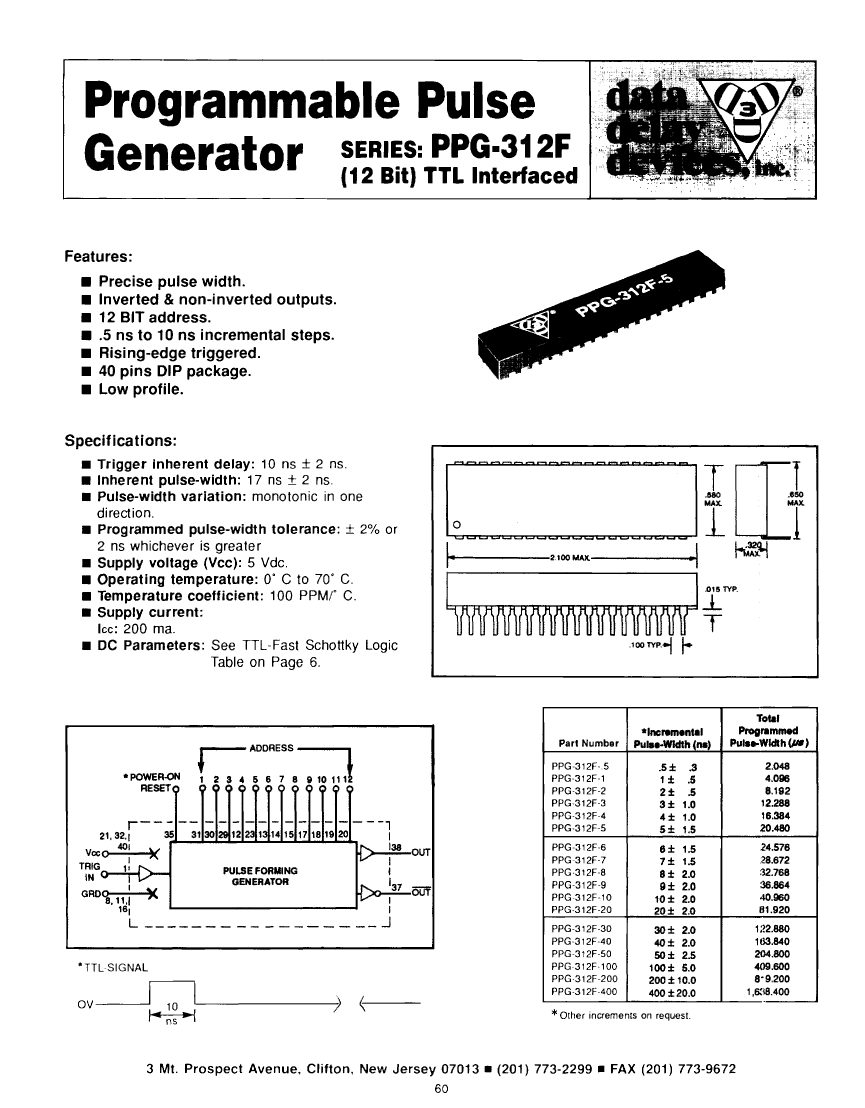

Preview

Download Datasheet

View All

PPG-312F-9MC5 Related Products

	PPG-312F-9MC5	PPG-312F-40MC5	PPG-312F-4MC5	PPG-312F-8MC5	PPG-312F-3MC5	PPG-312F-6MC5	PPG-312F-7MC5	PPG-312F-30MC5
Description	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,	Pulse Generator Delay Line, Programmable, 1-Func, 4095-Tap, Complementary Output, TTL,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 10+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK
series	F	F	F	F	F	F	F	F
Input frequency maximum value (fmax)	0.0271098 MHz	0.00610381 MHz	0.060931 MHz	0.0304952 MHz	0.0811886 MHz	0.0406471 MHz	0.0348468 MHz	0.00813789 MHz
JESD-30 code	R-XDSO-G40	R-XDSO-G40	R-XDSO-G40	R-XDSO-G40	R-XDSO-G40	R-XDSO-G40	R-XDSO-G40	R-XDSO-G40
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
length	52.832 mm	52.832 mm	52.832 mm	52.832 mm	52.832 mm	52.832 mm	52.832 mm	52.832 mm
Logic integrated circuit type	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE
Number of functions	1	1	1	1	1	1	1	1
Number of taps/steps	4095	4095	4095	4095	4095	4095	4095	4095
Number of terminals	40	40	40	40	40	40	40	40
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
programmable delay line	YES	YES	YES	YES	YES	YES	YES	YES
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.4168 mm	7.4168 mm	7.4168 mm	7.4168 mm	7.4168 mm	7.4168 mm	7.4168 mm	7.4168 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Data Delay Devices	Data Delay Devices	-	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices
