HM2P67PK5111GLLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P67PK5111GLLF

HM2P67PK5111GLLF: DescriptionBoard Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P67PK5111GLLF Overview

Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P67PK5111GLLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	127
UL Flammability Code	94V-0

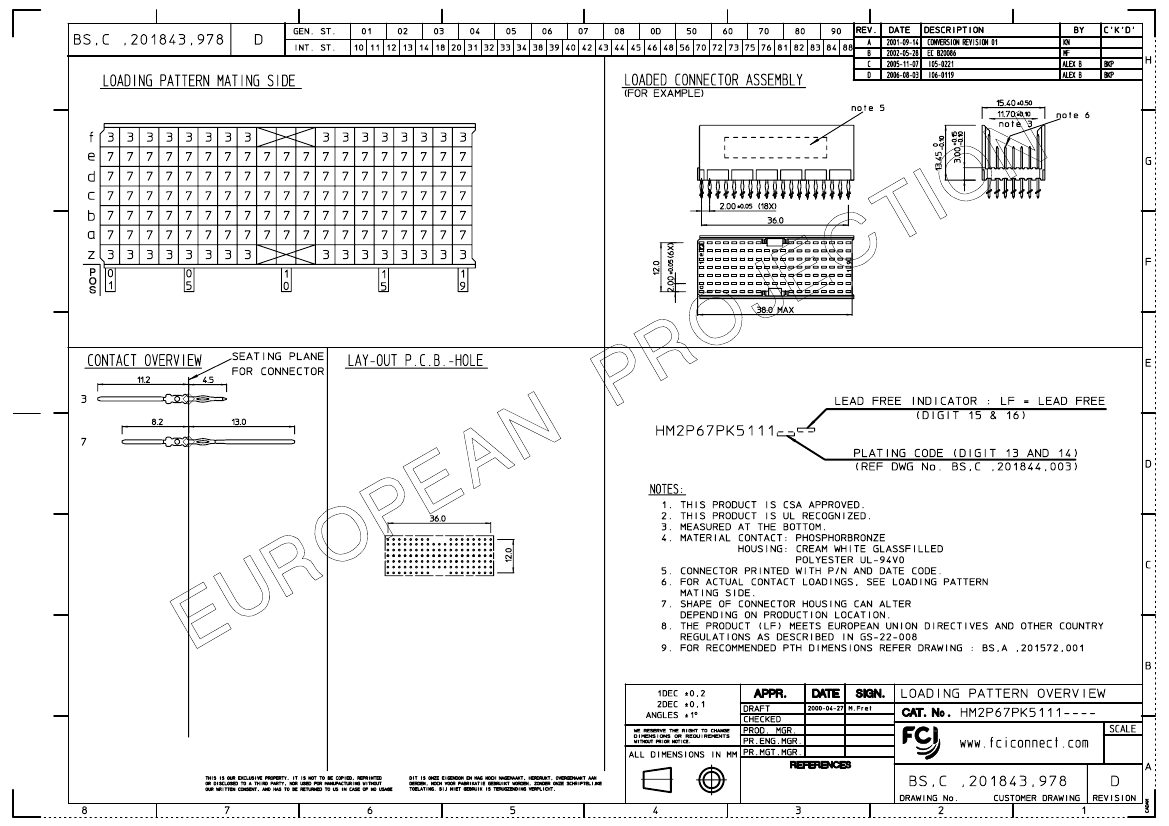

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Feb 01, 2010

HM2P67PK5111GLLF Related Products

	HM2P67PK5111GLLF	HM2P67PK5111GFLF	HM2P67PK5111GF	HM2P67PK5111GCLF	HM2P67PK5111GC	HM2P67PK5111GL
Description	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	MPAC 5R ST PF HDR	MPAC 5R ST PF HDR	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 127 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	127	127	127	127	127	127
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	MATTE TIN	-	TIN LEAD	MATTE TIN	TIN LEAD	TIN LEAD
JESD-609 code	e3	-	e0	e3	e0	e0
Manufacturer's serial number	HM2	-	HM2	HM2	HM2	HM2
