R570.523.035 datasheet, PDF - EEWORLD Datasheet

R570.523.035: DescriptionRF Coaxial Relay, SPDT, Failsafe, 0.14A (Coil), 28VDC (Coil), 3920mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size128KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

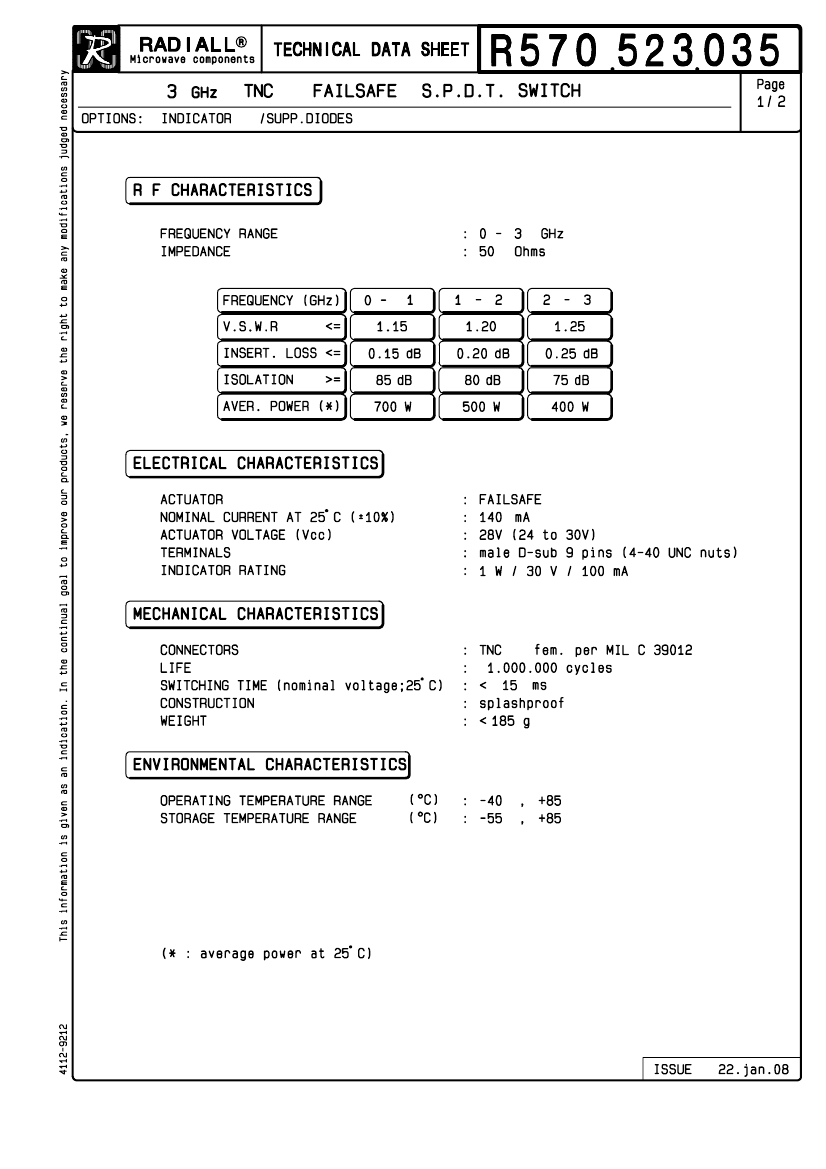

R570.523.035 Overview

RF Coaxial Relay, SPDT, Failsafe, 0.14A (Coil), 28VDC (Coil), 3920mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	5 weeks 5 days

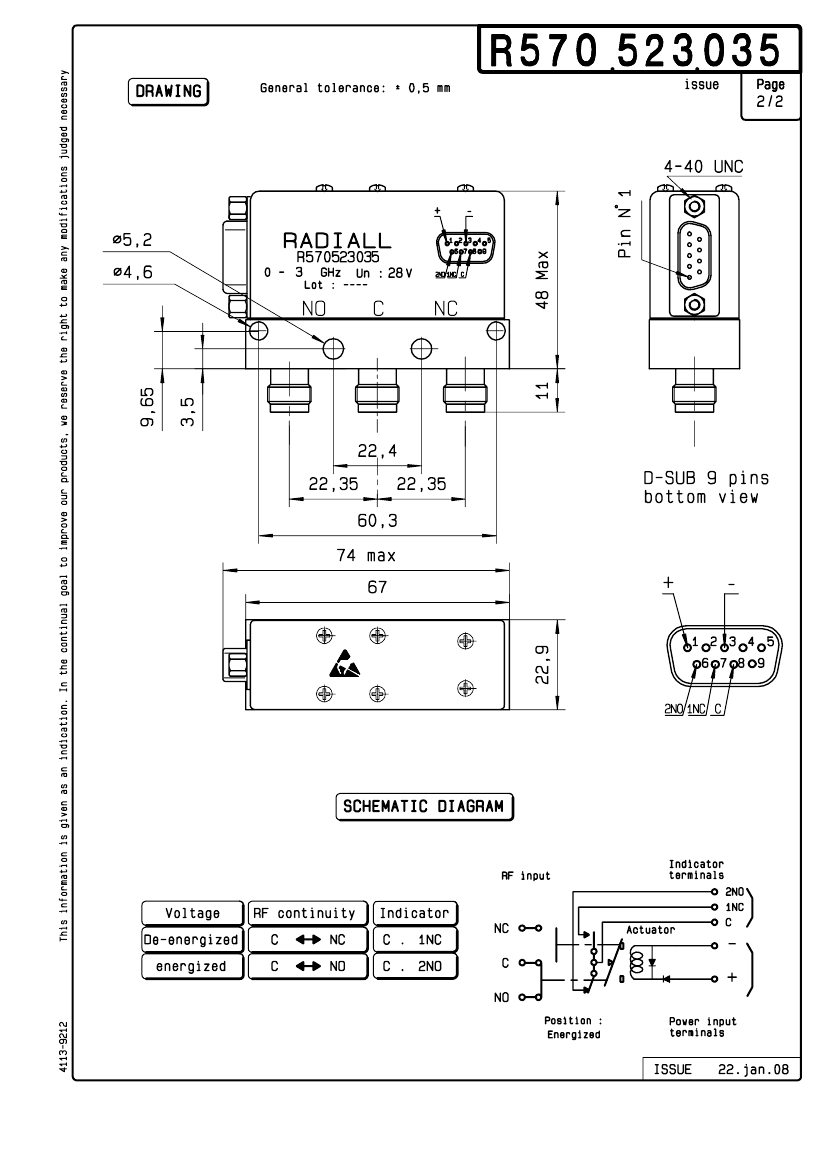

body width	22.9 mm
body height	48 mm
Body length or diameter	67 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.14 A
Coil power	3920 mW
Coil resistance	200 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum insertion loss	0.25 dB
Maximum isolation	75 dB
Manufacturer's serial number	R570.523.035
Installation features	PANEL MOUNT
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	67mm X 22.9mm X 48mm
Relay action	FAILSAFE
Relay function	SPDT
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.25
Base Number Matches	1
