321-93-151-41-001000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 321-93-151-41-001000

Preview

321-93-151-41-001000: DescriptionIC Socket, SIP51, 51 Contact(s),; CategoryThe connector socket; File Size255KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

321-93-151-41-001000 Overview

IC Socket, SIP51, 51 Contact(s),

321-93-151-41-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP51
JESD-609 code	e0
Number of contacts	51
Base Number Matches	1

Preview

Download Datasheet

View All

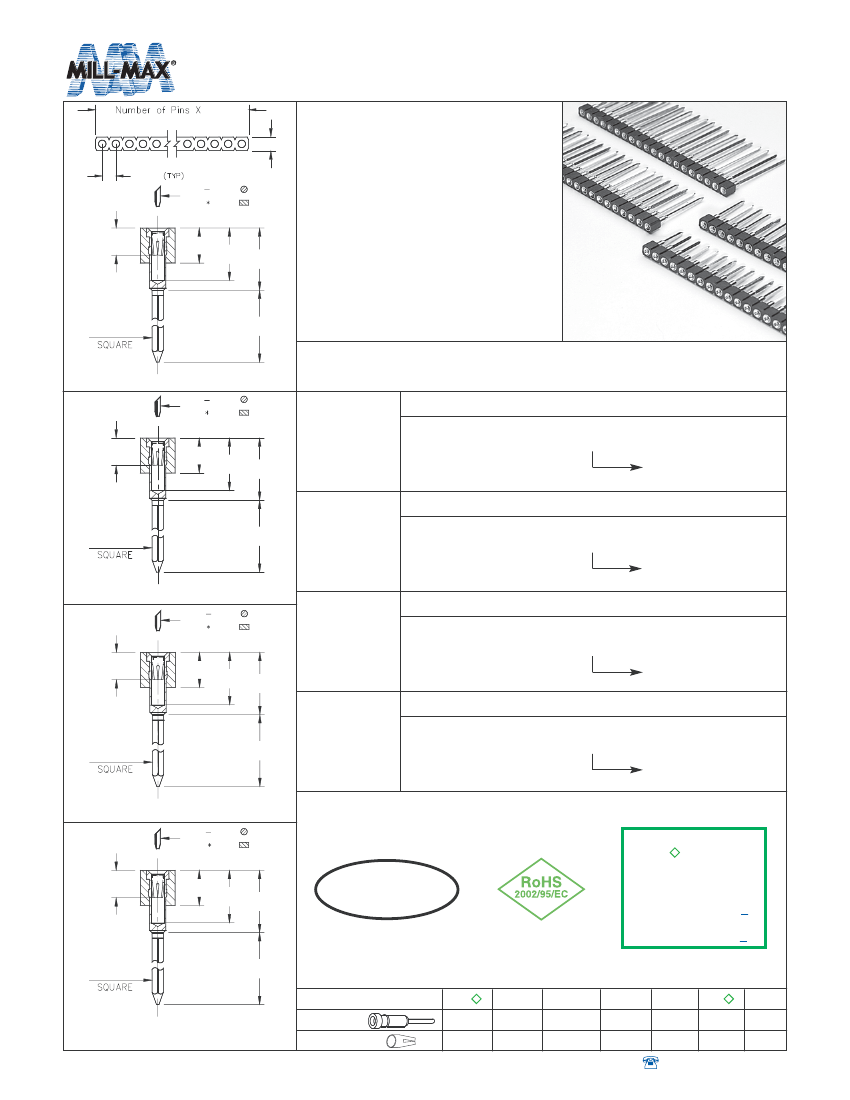

SINGLE-IN-LINE SOCKETS

Wrapost

Single Row

2,54

0,38

0,25

2,49

0,64

0,46

●

Series 321, 322

323, 324

Wraposts available in 4 levels

using M-M pin numbers:

1-Level

2-Level

3-Level

4-Level

uses

#

0040-1

0089-2

0088-3

0086-4

2,79

4,06

5,08

●

6,6

0,64

Hi-Rel, 4-finger BeCu #30 clip

rated at 3 amps. See page 208

for details.

Fig. 1

0,38

0,25

0,64

0,46

Ordering Information

Series 321...001

1 Level Wrapost

2,49

2,79

Fig. 1

4,06

4,9

321-XX-1_ _-41-001000

Specify # of pins

Series 322...001

01-64

2 Level Wrapost

0,64

9,4

Fig. 2

322-XX-1_ _-41-001000

Specify # of pins

01-64

3 Level Wrapost

Fig. 2

0,38

0,25

0,64

0,46

Series 323...001

Fig. 3

4,9

323-XX-1_ _-41-001000

Specify # of pins

Series 324...002

01-64

4 Level Wrapost

2,49

2,79

4,06

0,64

12,95

Fig. 4

324-XX-1_ _-41-002000

Specify # of pins

01-64

Fig. 3

0,38

0,25

0,64

0,46

2,49

2,79

4,06

4,9

XX=Plating Code

See Below

For RoHS compliance,

select



plating code.

For the all gold option

(XX=13) also change

part number from

32X-XX-1XX-41-00X000

to

32X-13-1XX-41-00X100

0,64

16,0

SPECIFY PLATING CODE XX=

13



0,76µm Au

91

10µ” Au

93

5,08µm Sn/Pb

0,76µm Au

99

Sn/Pb

41



43



44



Fig. 4

Sleeve (Pin)

Contact (Clip)

0,25µm Au

200µ”

Sn/Pb 200µ” Sn

5,08µm Sn

200µ” Sn

10µ” Au

0,76µm Au

200µ” Sn

w w w. m i l l - m a x . c o m

49



516-922-6000
