MSM5842GS datasheet, PDF - EEWORLD Datasheet

MSM5842GS: DescriptionMicrocontroller, 4-Bit, MROM, OLMS-40 CPU, 4MHz, CMOS, PDSO32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size378KB，8 Pages; ManufacturerLAPIS Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

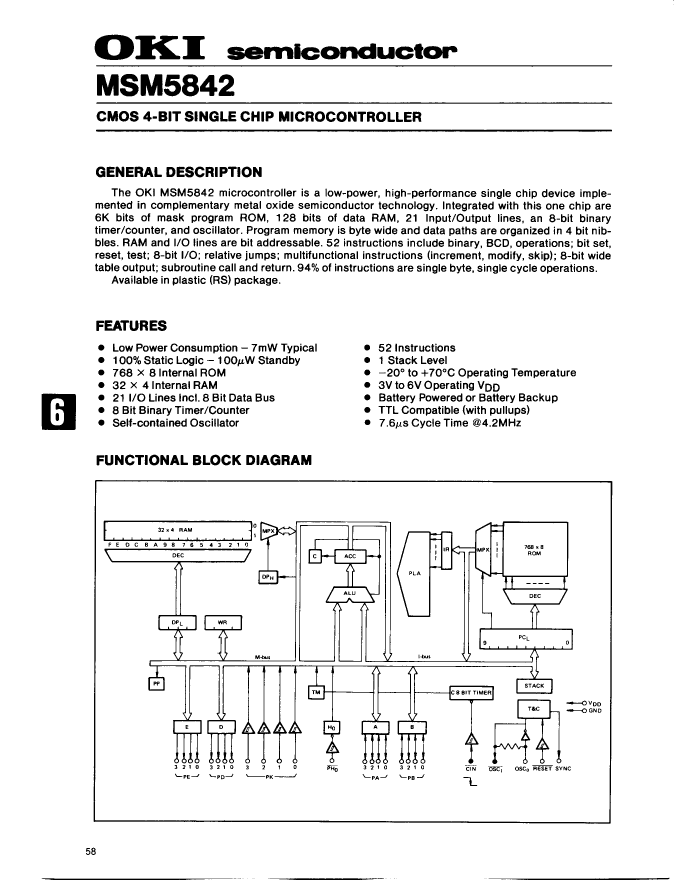

MSM5842GS Overview

Microcontroller, 4-Bit, MROM, OLMS-40 CPU, 4MHz, CMOS, PDSO32

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LAPIS Semiconductor Co., Ltd.
package instruction	SSOP, SOP32,.47,40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
CPU series	OLMS-40
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G32
JESD-609 code	e0

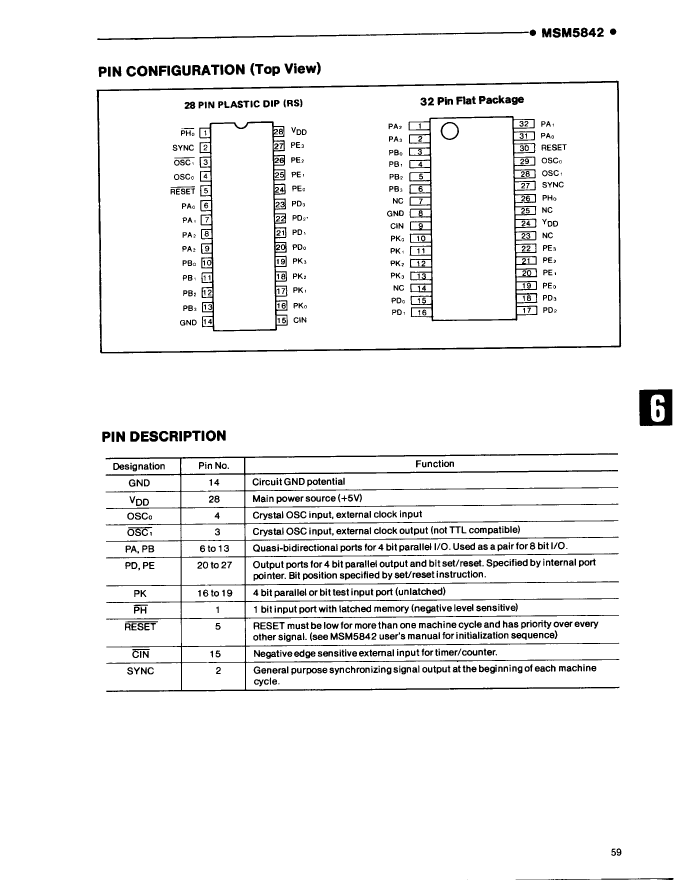

Number of I/O lines	21
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP32,.47,40
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
RAM (bytes)	16
rom(word)	768
ROM programmability	MROM

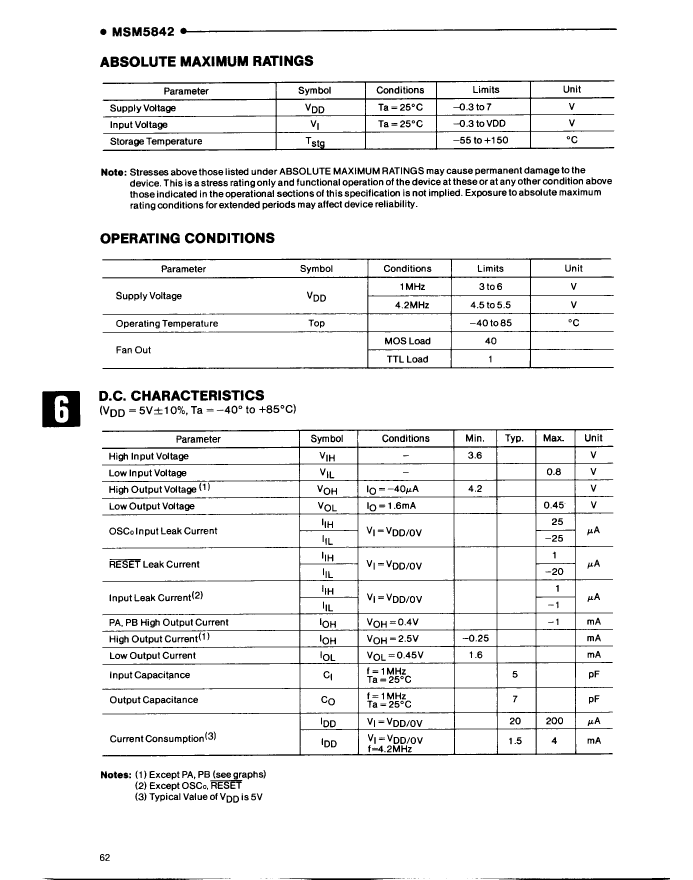

speed	4.2 MHz
Maximum slew rate	4 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL

	MSM5842GS	MSM5842RS
Description	Microcontroller, 4-Bit, MROM, OLMS-40 CPU, 4MHz, CMOS, PDSO32	Microcontroller, 4-Bit, MROM, OLMS-40 CPU, 4MHz, CMOS, PDIP28
Is it Rohs certified?	incompatible	incompatible
Maker	LAPIS Semiconductor Co., Ltd.	LAPIS Semiconductor Co., Ltd.
package instruction	SSOP, SOP32,.47,40	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
bit size	4	4
CPU series	OLMS-40	OLMS-40
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDSO-G32	R-PDIP-T28
JESD-609 code	e0	e0
Number of I/O lines	21	21
Number of terminals	32	28
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	DIP
Encapsulate equivalent code	SOP32,.47,40	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	IN-LINE
Certification status	Not Qualified	Not Qualified
RAM (bytes)	16	16
rom(word)	768	768
ROM programmability	MROM	MROM
speed	4.2 MHz	4.2 MHz
Maximum slew rate	4 mA	4 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1 mm	2.54 mm
Terminal location	DUAL	DUAL
