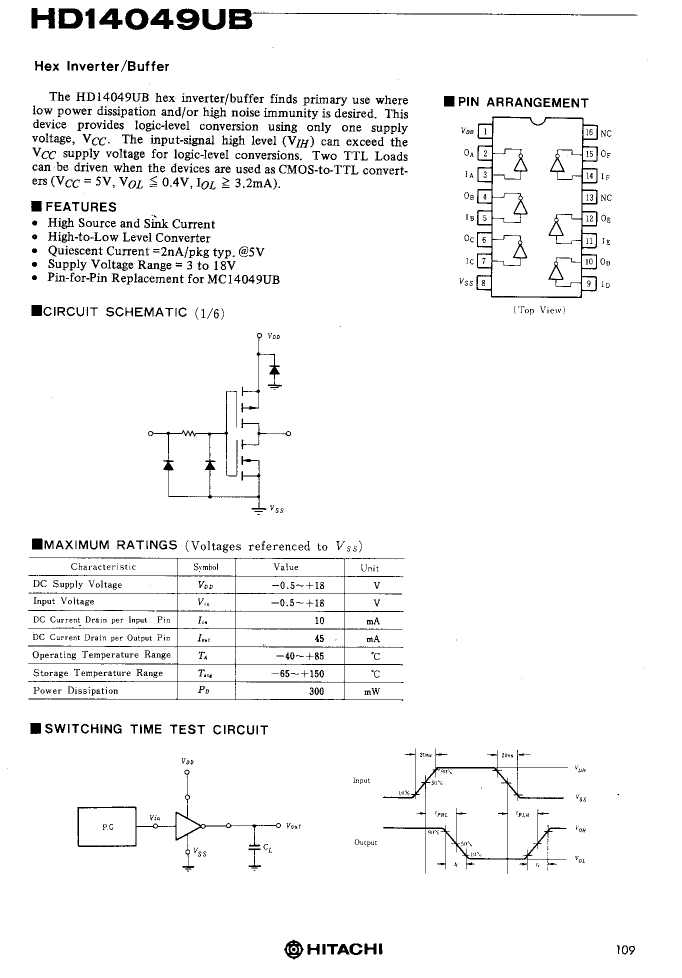

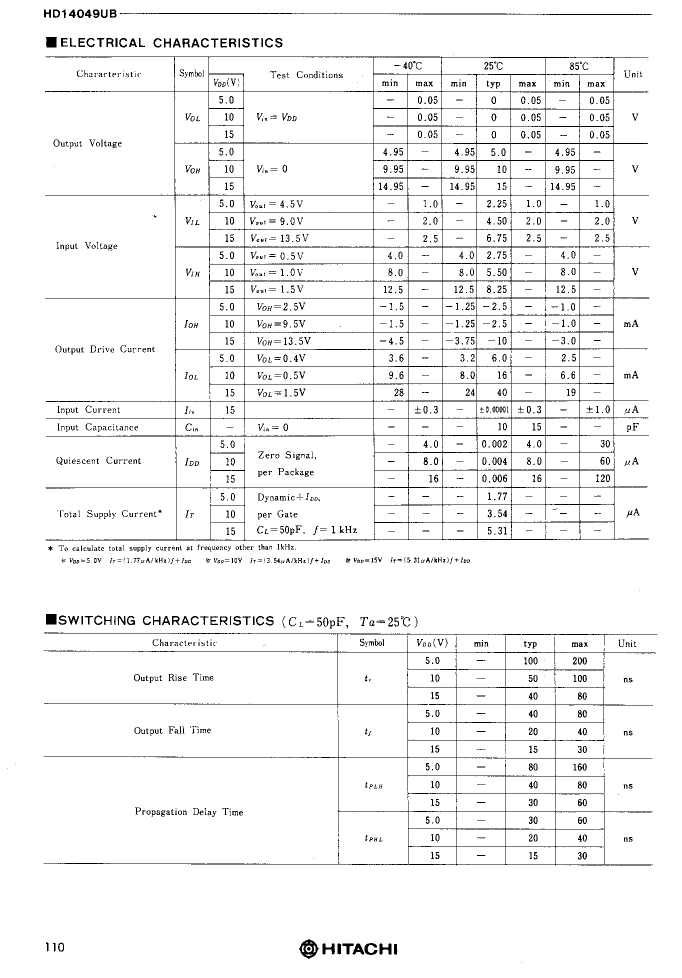

HD14049UBFP datasheet, PDF - EEWORLD Datasheet

HD14049UBFP: Description4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO16, FP-16DA; Categorylogic logic; File Size68KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HD14049UBFP Overview

4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO16, FP-16DA

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
length	10.06 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	160 ns
Certification status	Not Qualified
Maximum seat height	2.2 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.5 mm

	HD14049UBFP	HD14049UBP	HD14049UBRP
Description	4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO16, FP-16DA	4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDIP16, DP-16	4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO16, FP-16DN
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	DIP	SOIC
package instruction	SOP,	DIP,	SOP,
Contacts	16	16	16
Reach Compliance Code	unknown	compliant	compliant
series	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
length	10.06 mm	19.2 mm	9.9 mm
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	160 ns	160 ns	160 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.2 mm	5.06 mm	1.75 mm
Maximum supply voltage (Vsup)	18 V	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	5.5 mm	7.62 mm	3.9 mm
