KM736V689A-44 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM736V689A-44

KM736V689A-44: DescriptionStandard SRAM, 64KX36, 3.1ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100; Categorystorage storage; File Size1MB，15 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM736V689A-44 Overview

Standard SRAM, 64KX36, 3.1ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100

KM736V689A-44 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	LQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	3.1 ns
Other features	SELF-TIMED WRITE CYCLE
JESD-30 code	R-PQFP-G100
length	20 mm
memory density	2359296 bit
Memory IC Type	STANDARD SRAM
memory width	36
Number of functions	1
Number of terminals	100
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX36
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	RECTANGULAR
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm

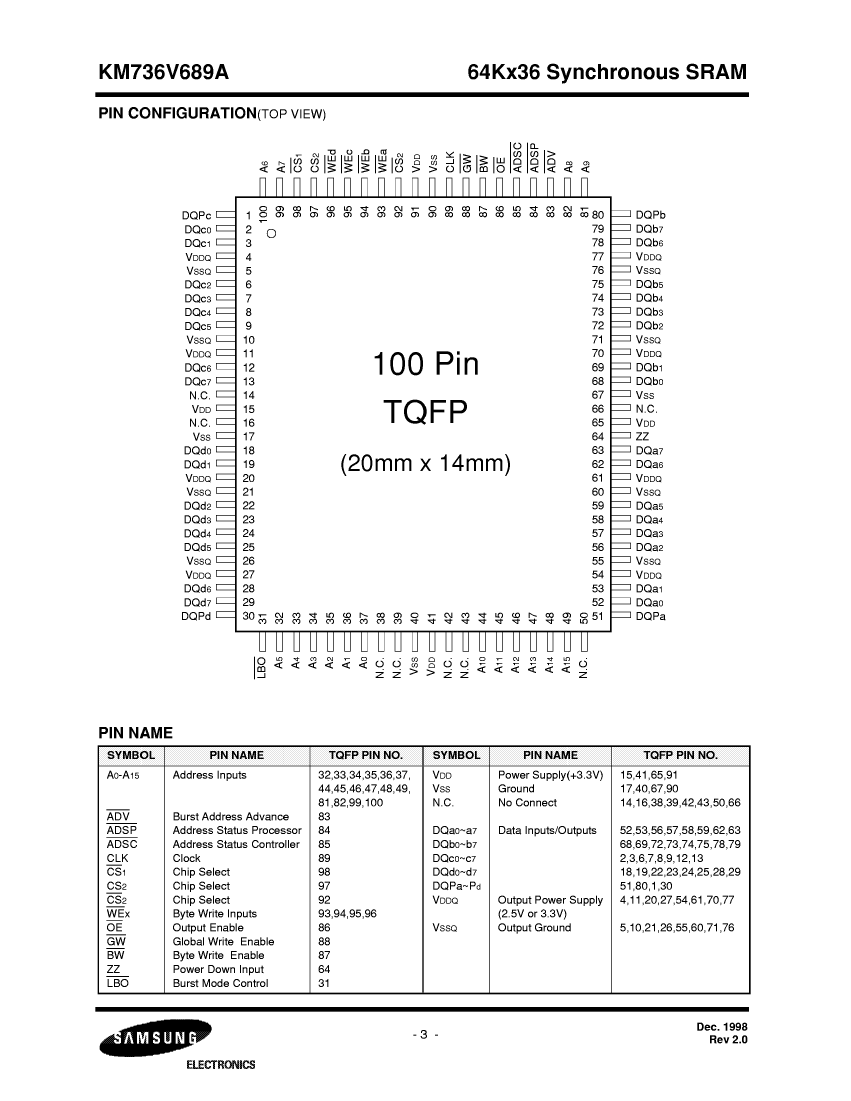

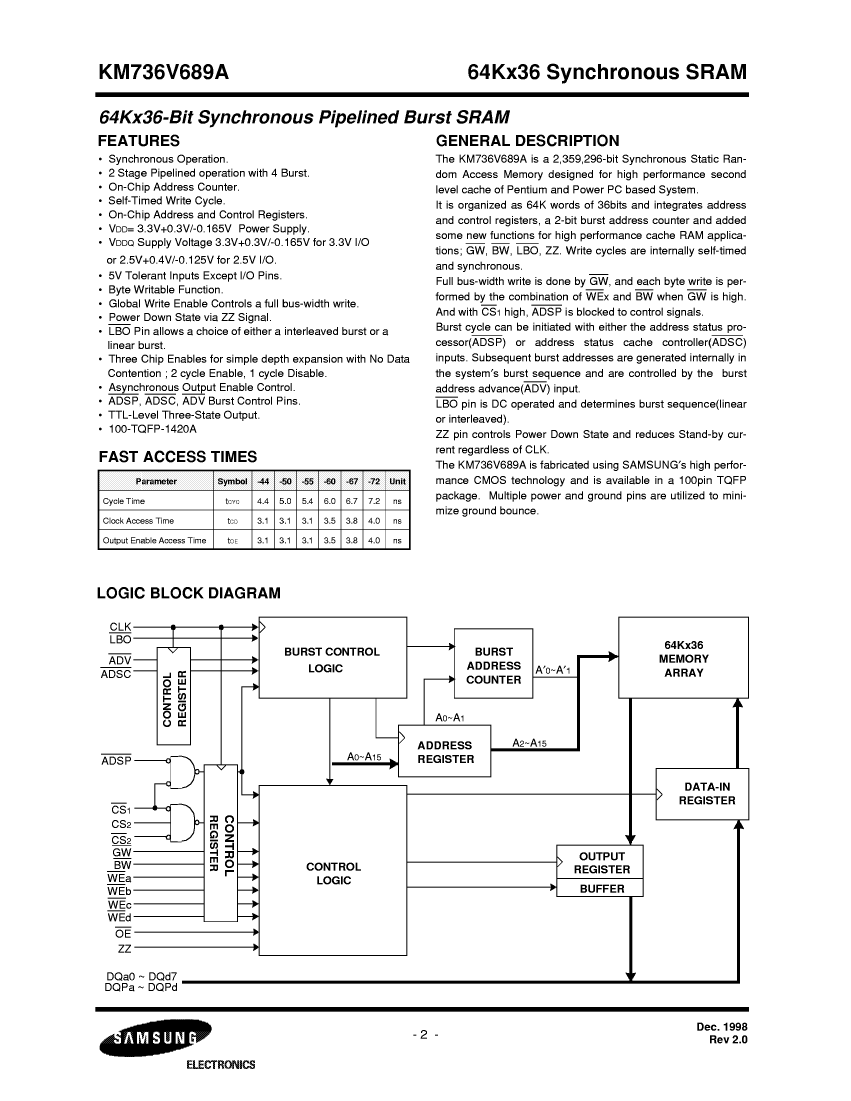

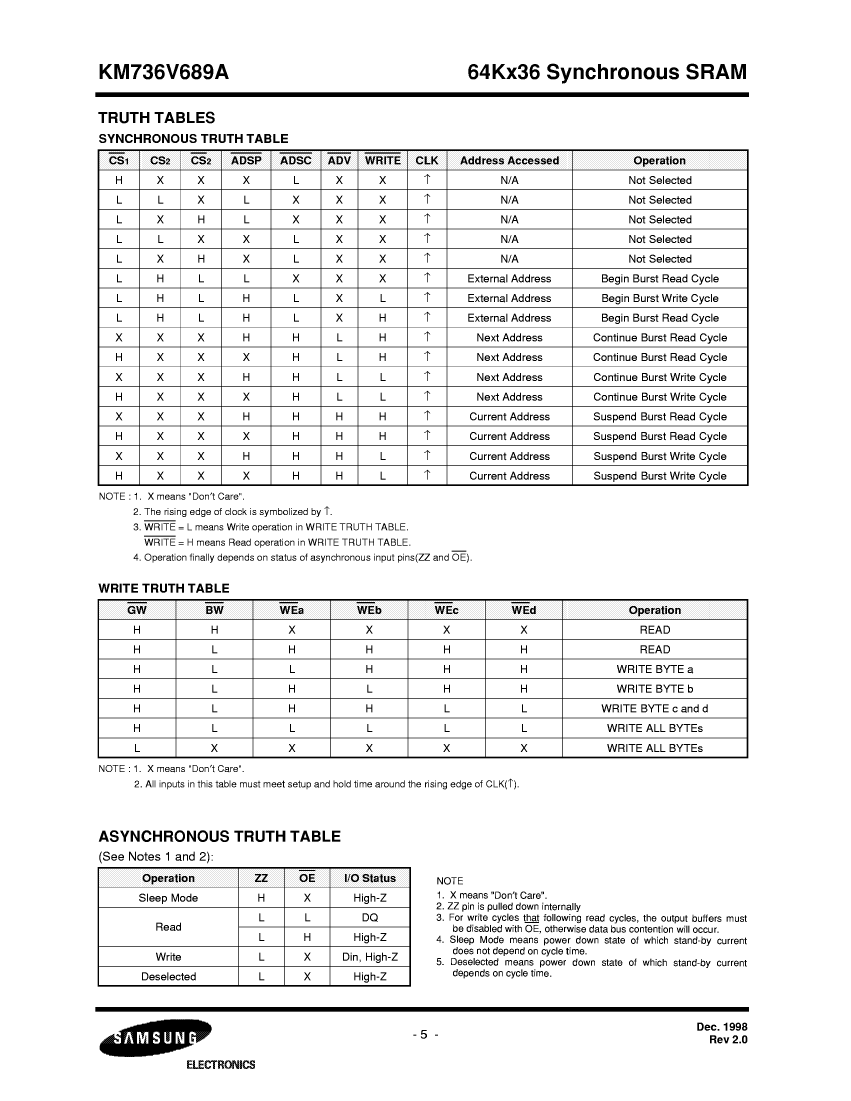

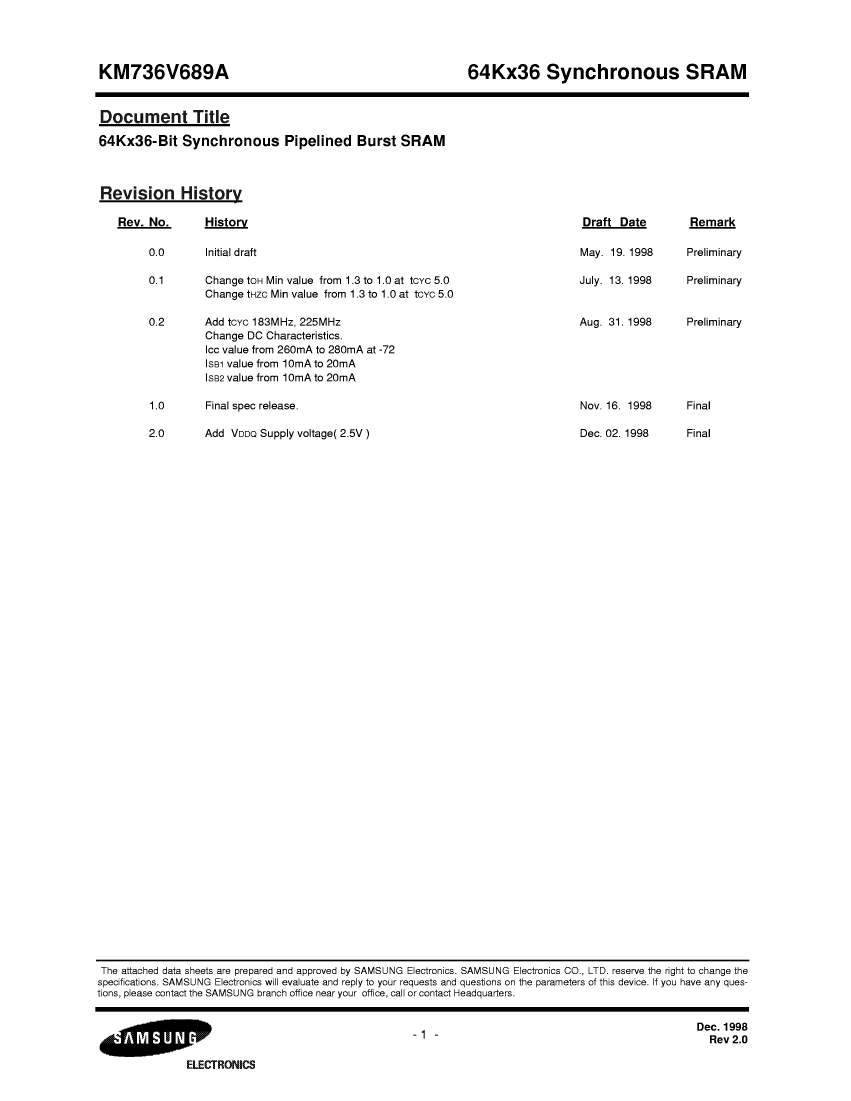

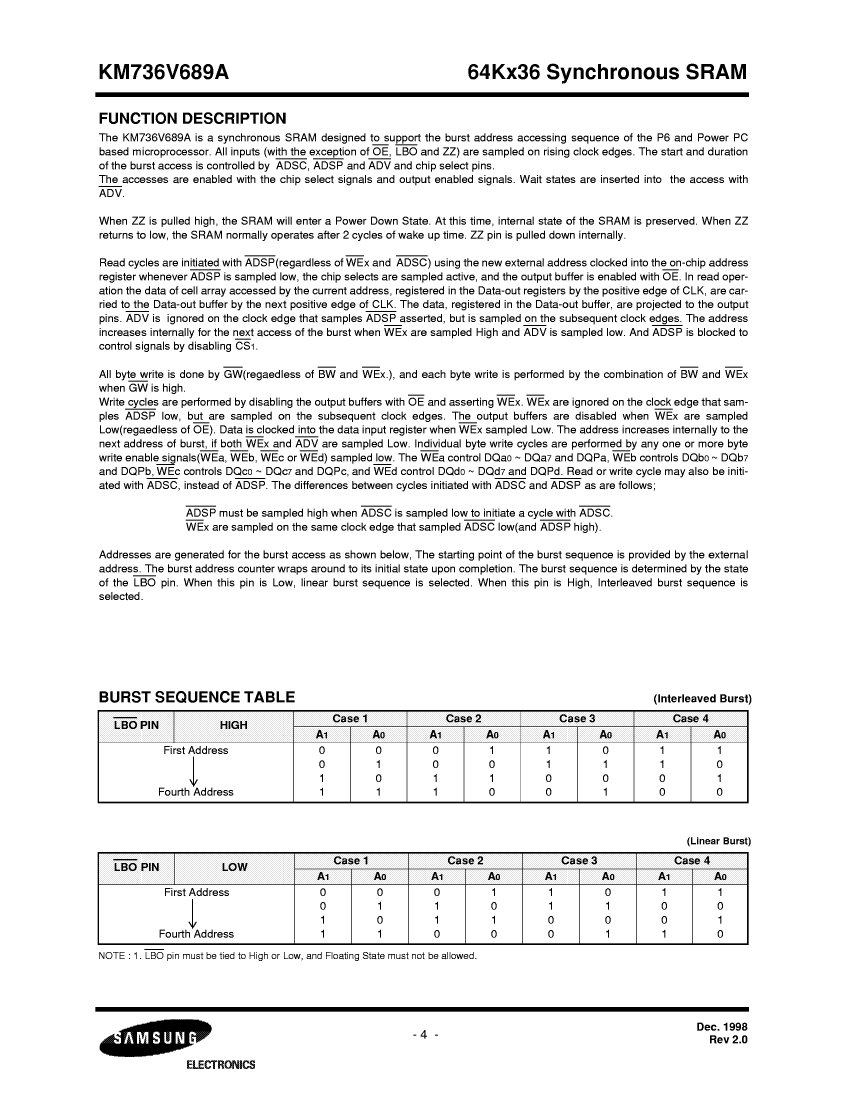

Preview

Download Datasheet

View All

KM736V689A-44 Related Products

	KM736V689A-44	KM736V689A-67	KM736V689A-55	KM736V689A-72	KM736V689A-50	KM736V689A-60
Description	Standard SRAM, 64KX36, 3.1ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Standard SRAM, 64KX36, 3.8ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Standard SRAM, 64KX36, 3.1ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Standard SRAM, 64KX36, 4ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Standard SRAM, 64KX36, 3.1ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Standard SRAM, 64KX36, 3.5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	LQFP,	LQFP,	LQFP,	LQFP,	LQFP,	LQFP,
Contacts	100	100	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	3.1 ns	3.8 ns	3.1 ns	4 ns	3.1 ns	3.5 ns
Other features	SELF-TIMED WRITE CYCLE	SELF-TIMED WRITE CYCLE	SELF-TIMED WRITE CYCLE	SELF-TIMED WRITE CYCLE	SELF-TIMED WRITE CYCLE	SELF-TIMED WRITE CYCLE
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	2359296 bit	2359296 bit	2359296 bit	2359296 bit	2359296 bit	2359296 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	36	36	36	36	36	36
Number of functions	1	1	1	1	1	1
Number of terminals	100	100	100	100	100	100
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX36	64KX36	64KX36	64KX36	64KX36	64KX36
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	LQFP	LQFP	LQFP	LQFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Maker	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
