XRO2LMR40DRV Overview

Single Color LED Array, Red, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-4

XRO2LMR40DRV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED, IC COMPATIBLE, HIGH RELIABILITY
color	RED
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	248.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	9.35 mm

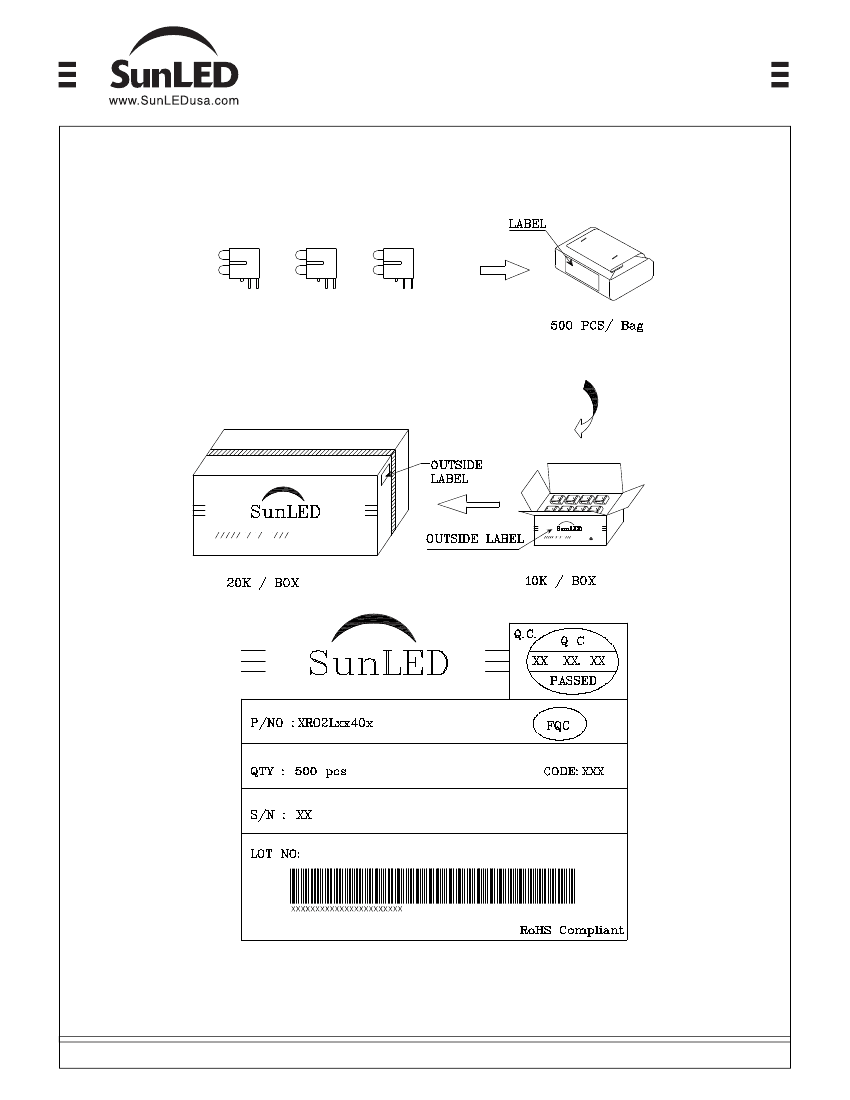

method of packing	BULK
peak wavelength	660 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

Part Number:

XRO2LMR40DRV

T-1 (3mm) BI-LEVEL CIRCUIT BOARD

INDICATOR

Features

●

PRE-TRIMMED LEADS FOR PC MOUNTING.

●

I.C. COMPATIBLE.

●

BLACK CASE ENHANCES CONTRAST RATIO.

●

WIDE VIEWING ANGLE.

●

HIGH RELIABILITY LIFE MEASURED IN YEARS.

●

UL RATING : 94V-0.

●

HOUSING MATERIAL: TYPE 66 NYLON.

●

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

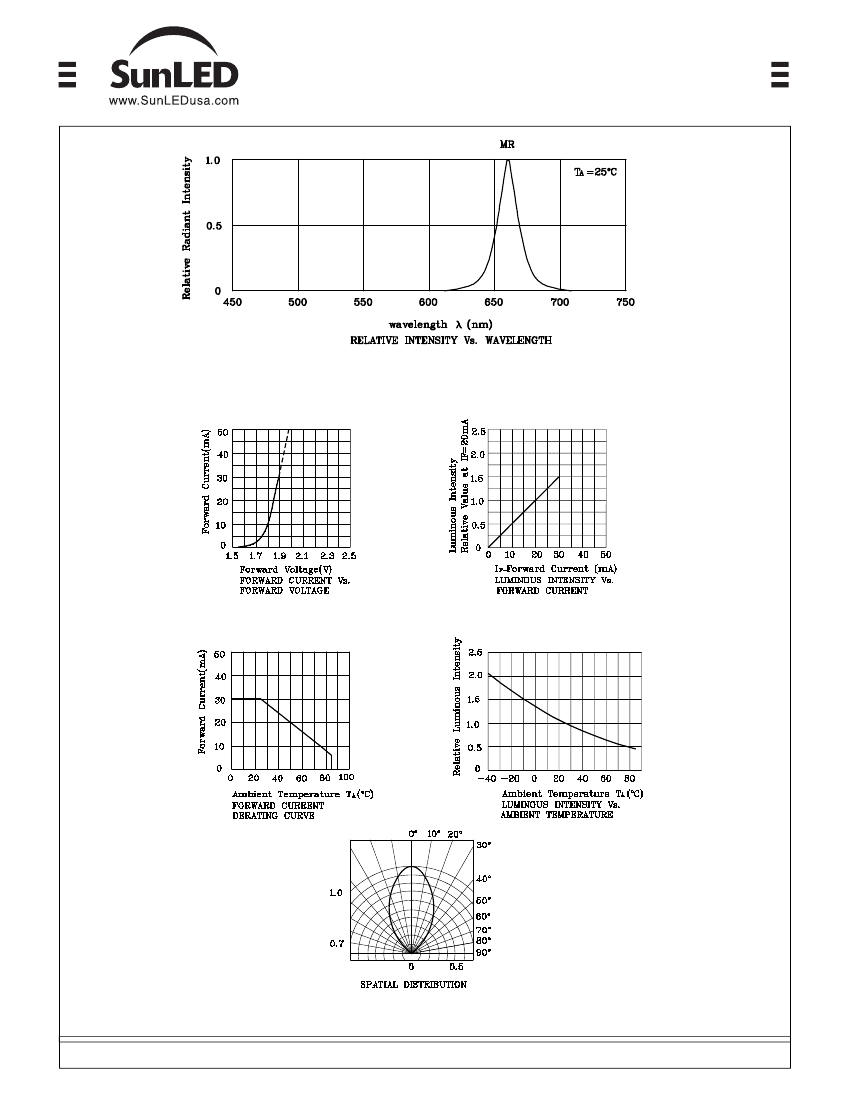

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=20mA)

Wavelength Of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaAlAs)

1.85

2.5

Unit

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Lead Solder Temperature

[5mm Below Package Base]

Tstg

(GaAlAs)

155

-40 ~ +85

Unit

°C

660

640

260°C For 3 Seconds

260°C For 5 Seconds

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

248

Wavelength

Viewing

Angle

1/2

XRO2LMR40DRV

Red

GaAlAs

Red Diffused

660

Published Date : JAN 16,2008

Drawing No : XDSA7887

Checked : B.L.LIU

P.1/4
