SN74S32N3: DescriptionOR Gate, S Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size1MB，22 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

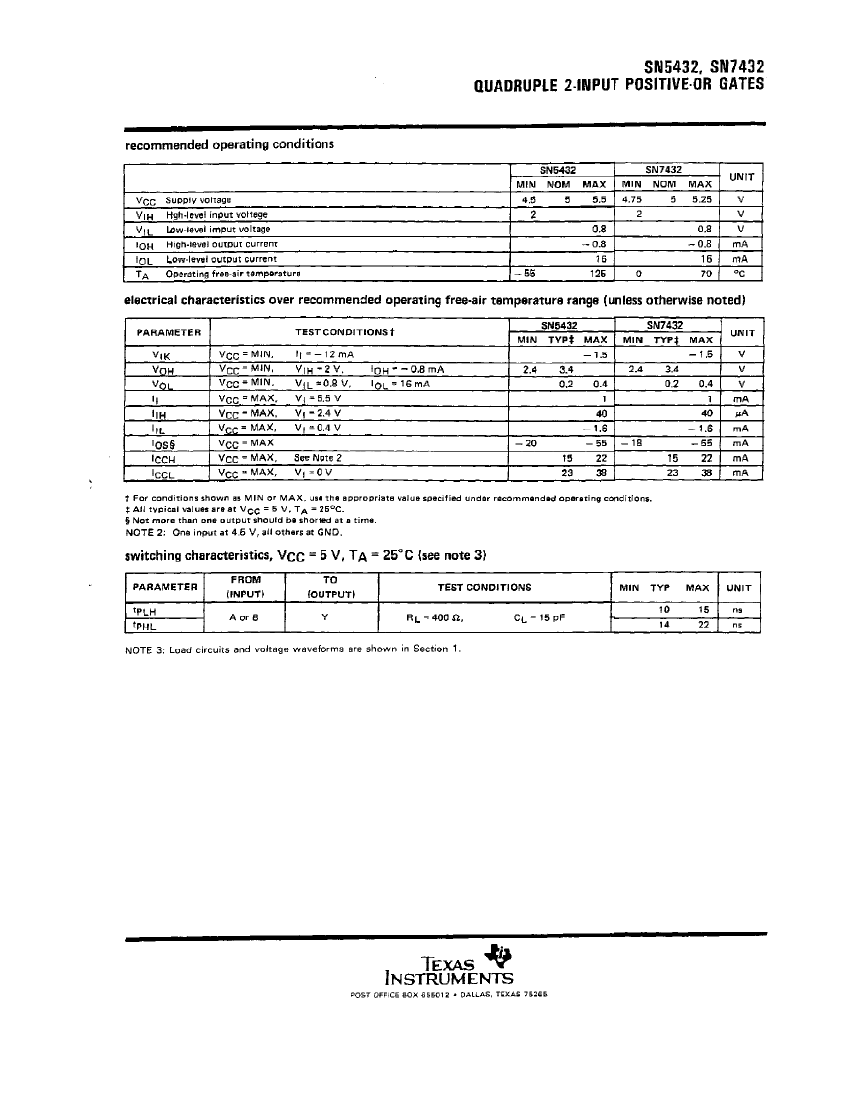

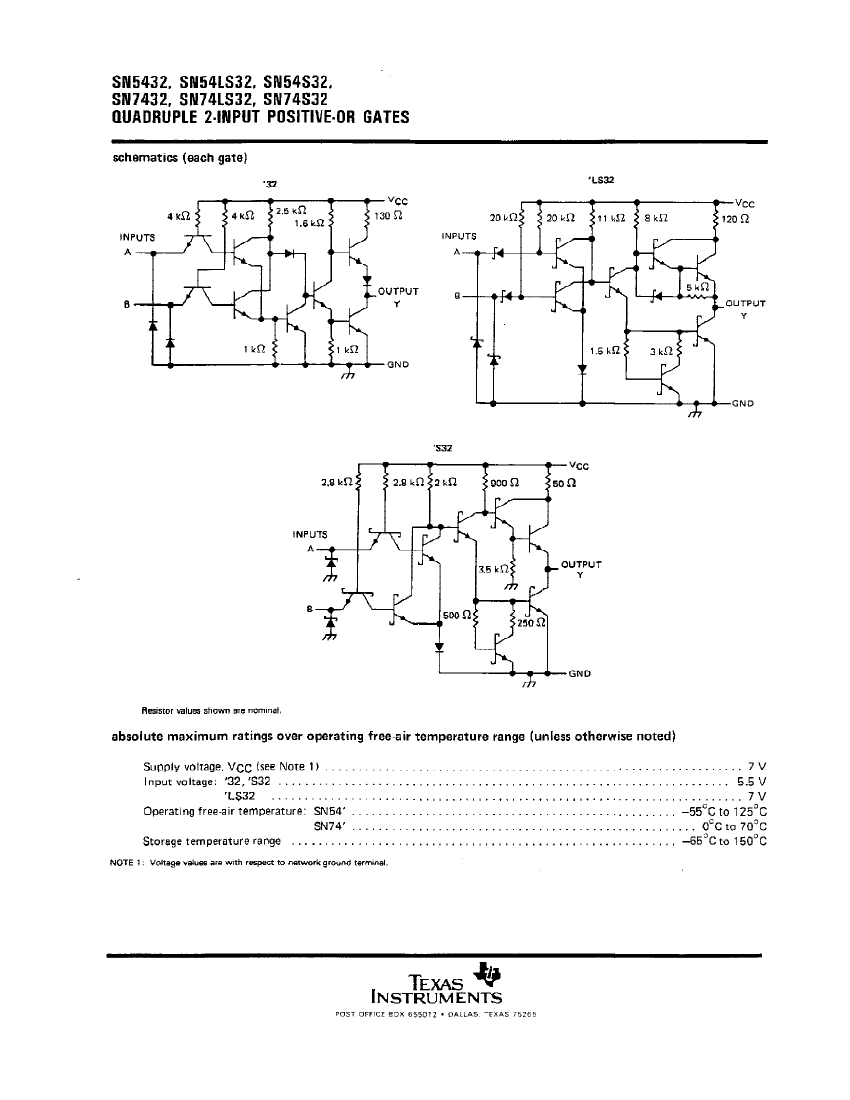

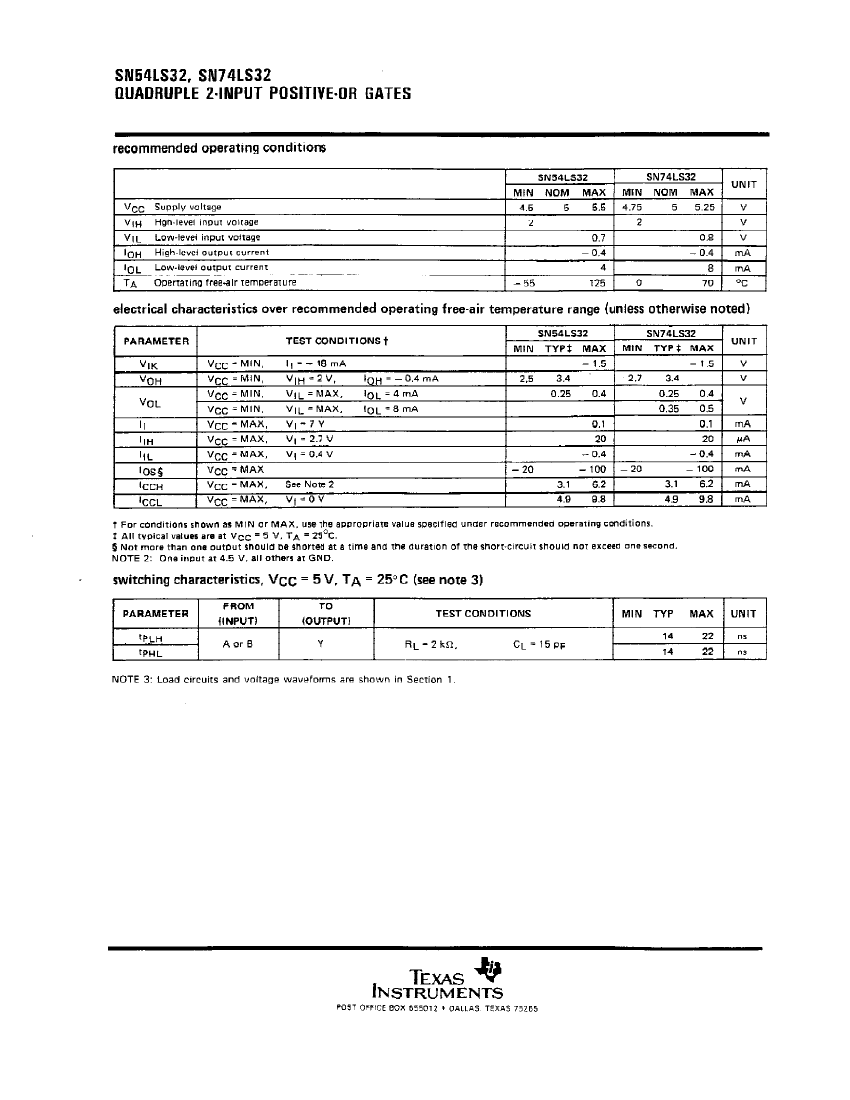

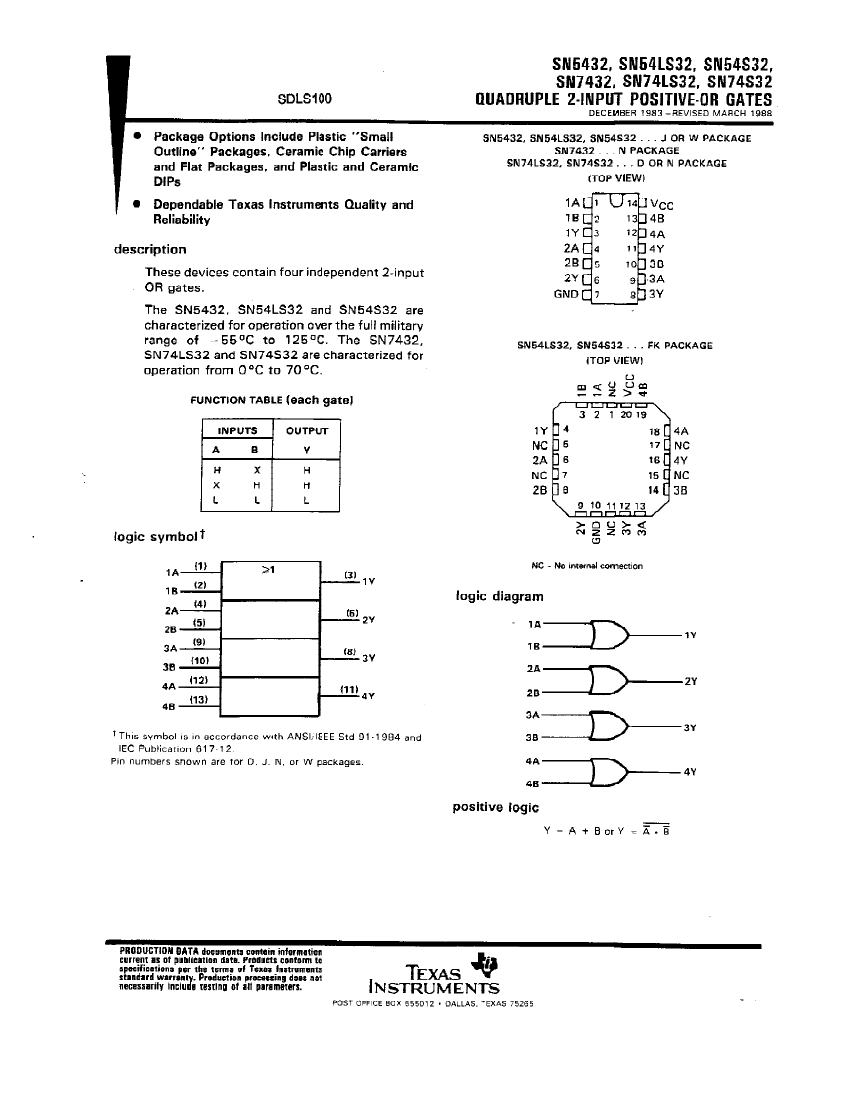

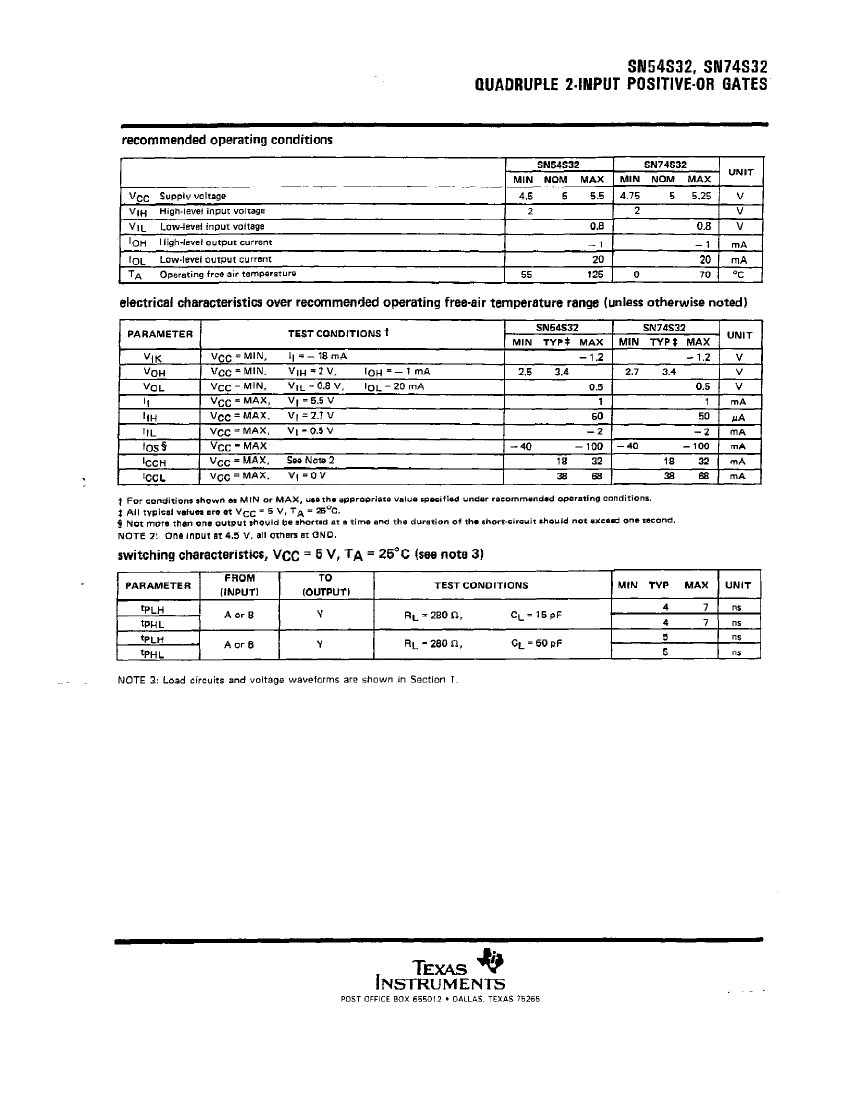

SN74S32N3 Overview

OR Gate, S Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-PDIP-T14
length	19.305 mm
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	7 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	SN74S32N3	SNJ54S32FK	SN7432N3	SN74LS32J
Description	OR Gate, S Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14	OR Gate, S Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20	OR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14	OR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14
package instruction	DIP,	CERAMIC, LCC-20	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	S	S	TTL/H/L	LS
JESD-30 code	R-PDIP-T14	S-CQCC-N20	R-PDIP-T14	R-GDIP-T14
length	19.305 mm	8.89 mm	19.305 mm	19.56 mm
Logic integrated circuit type	OR GATE	OR GATE	OR GATE	OR GATE
Number of functions	4	4	4	4
Number of entries	2	2	2	2
Number of terminals	14	20	14	14
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE
propagation delay (tpd)	7 ns	7 ns	22 ns	22 ns
Maximum seat height	5.08 mm	2.03 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL
width	7.62 mm	8.89 mm	7.62 mm	7.62 mm
Maker	Rochester Electronics	Rochester Electronics	-	Rochester Electronics
