24C04AT-I/SL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 24C04AT-I/SL

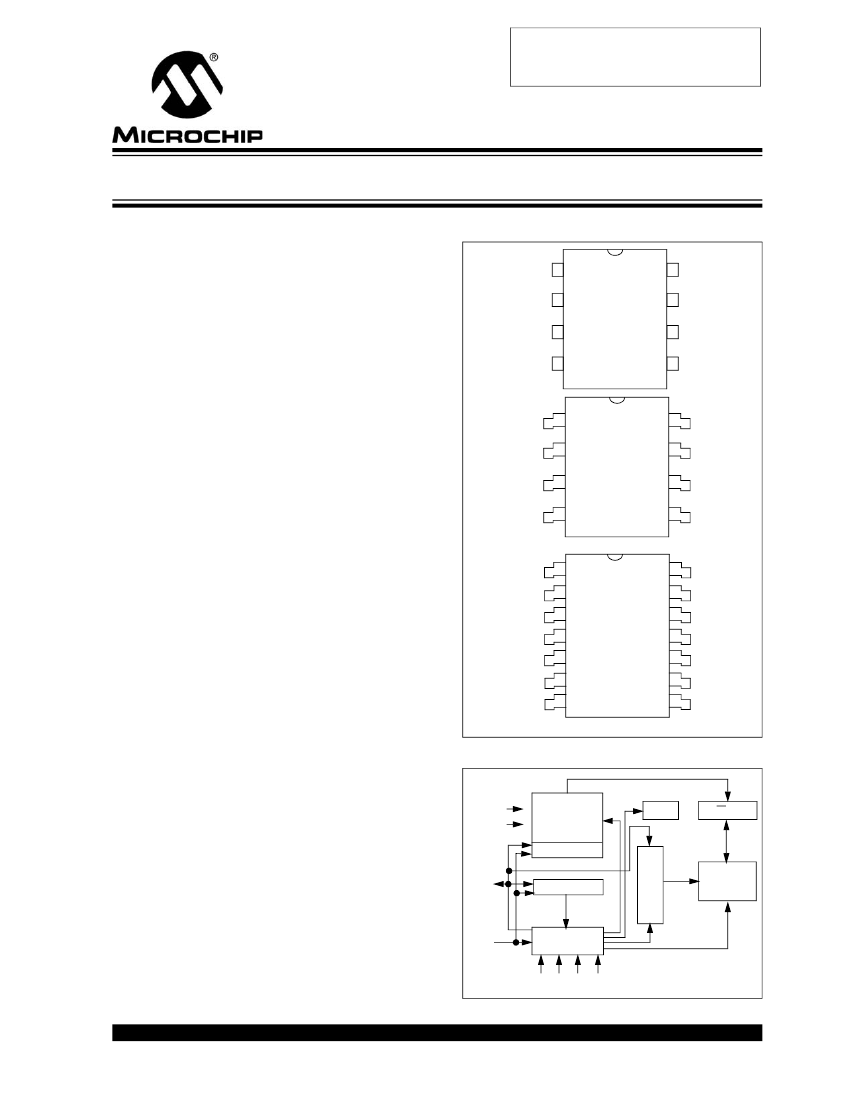

24C04AT-I/SL: DescriptionEEPROM, 512X8, Serial, CMOS, PDSO14, 0.150 INCH, PLASTIC, SOIC-14; Categorystorage storage; File Size775KB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

24C04AT-I/SL Overview

EEPROM, 512X8, Serial, CMOS, PDSO14, 0.150 INCH, PLASTIC, SOIC-14

24C04AT-I/SL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	2-WIRE I2C SERIAL INTERFACE BUS; DATA RETENTION > 200 YEARS; 1000000 ERASE/WRITE CYCLE GUARANTEED
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	200
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.66 mm
memory density	4096 bi
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	14
word count	512 words
character code	512
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512X8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.73 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Maximum write cycle time (tWC)	1 ms
Base Number Matches	1
