HN27128AP-20 datasheet, PDF - EEWORLD Datasheet

HN27128AP-20: Description16KX8 OTPROM, 200ns, PDIP28, PLASTIC, DIP-28; Categorystorage storage; File Size165KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

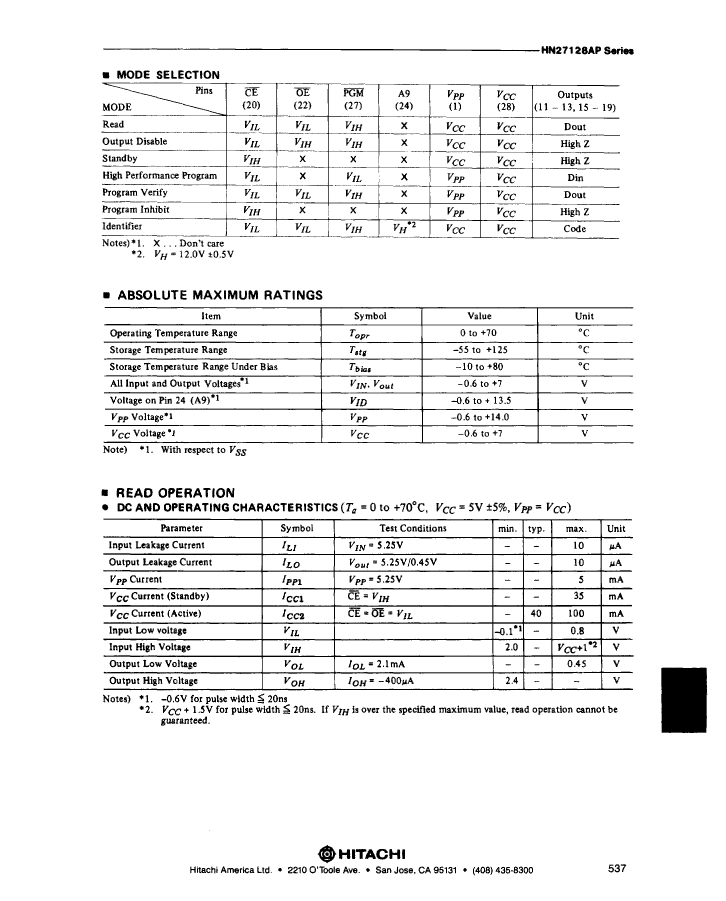

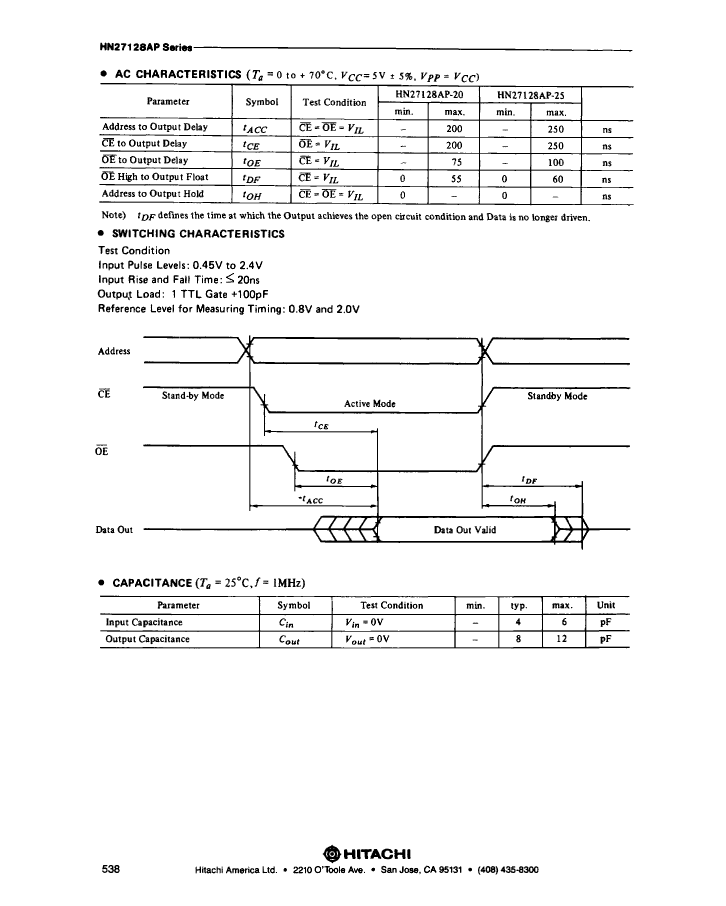

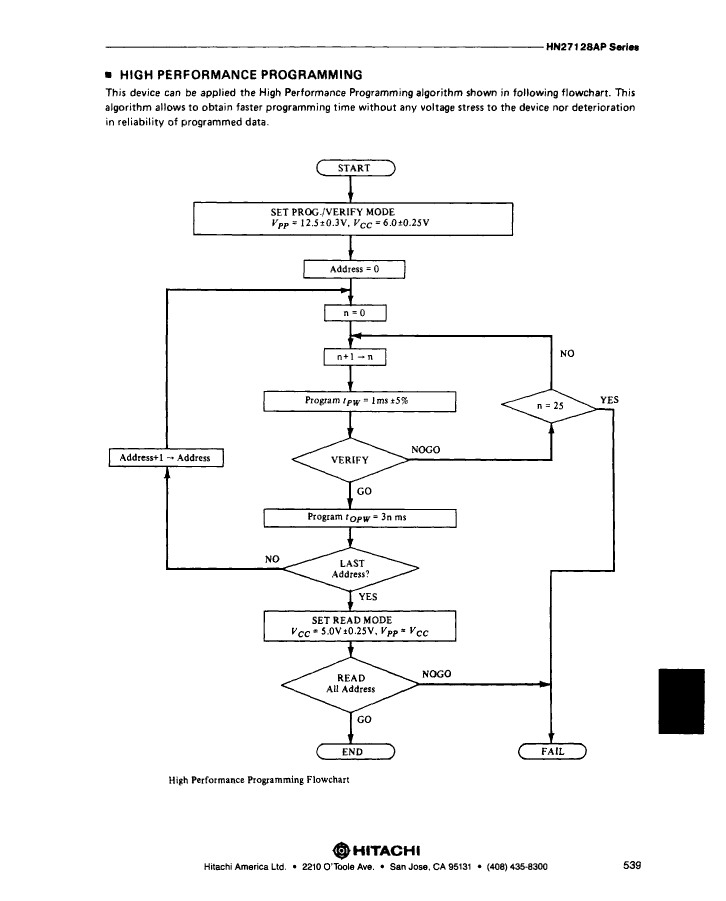

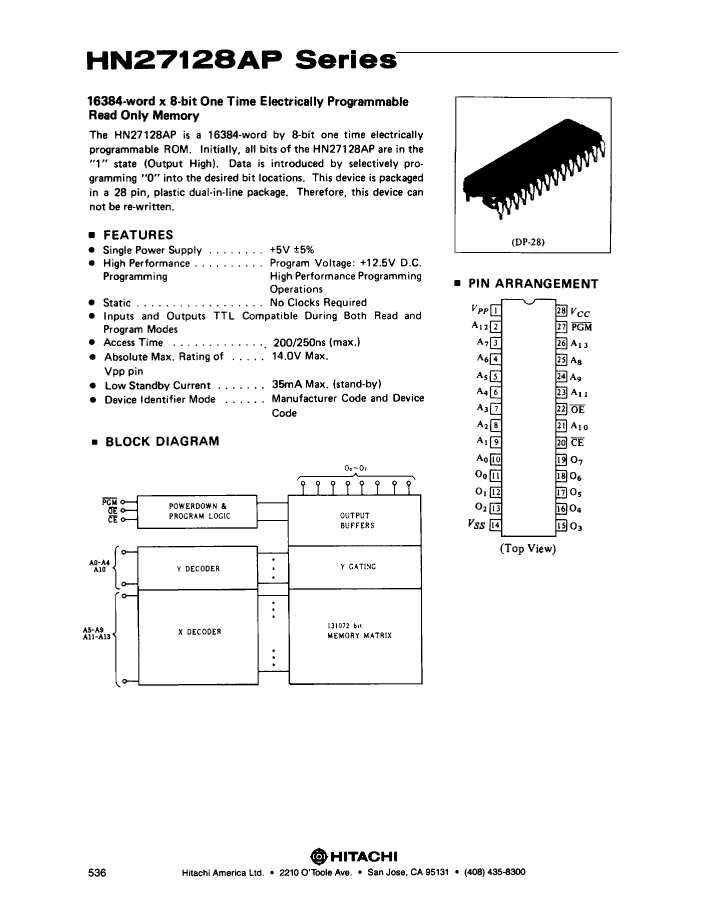

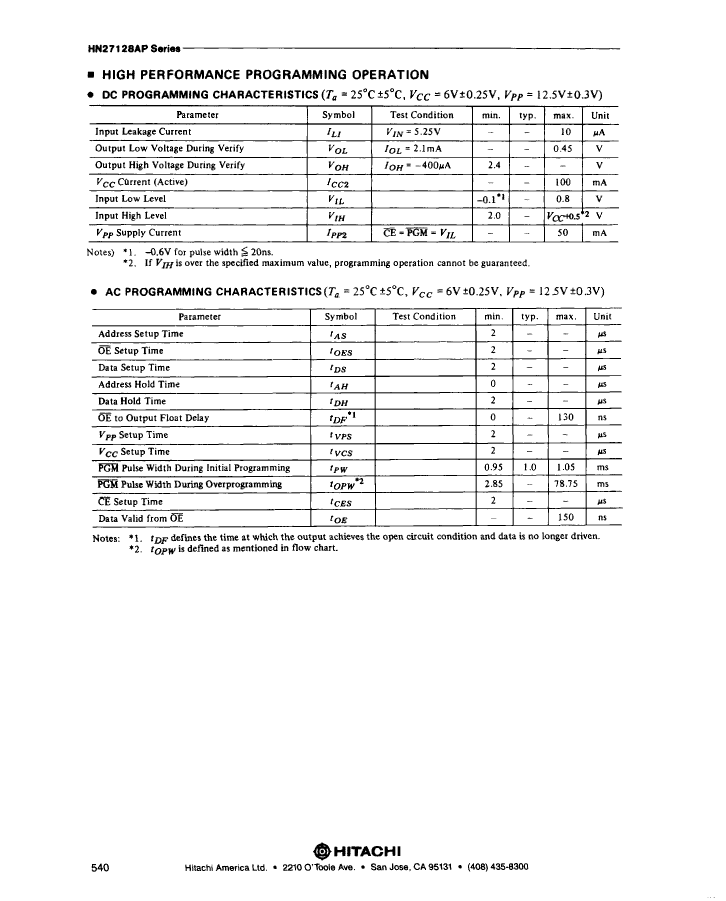

HN27128AP-20 Overview

16KX8 OTPROM, 200ns, PDIP28, PLASTIC, DIP-28

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	compli
ECCN code	EAR99
Maximum access time	200 ns
JESD-30 code	R-PDIP-T28
length	35.6 mm
memory density	131072 bi
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.7 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

	HN27128AP-20	HN27128AP-25
Description	16KX8 OTPROM, 200ns, PDIP28, PLASTIC, DIP-28	16KX8 OTPROM, 250ns, PDIP28, PLASTIC, DIP-28
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	28	28
Reach Compliance Code	compli	unknown
ECCN code	EAR99	EAR99
Maximum access time	200 ns	250 ns
JESD-30 code	R-PDIP-T28	R-PDIP-T28
length	35.6 mm	35.6 mm
memory density	131072 bi	131072 bit
Memory IC Type	OTP ROM	OTP ROM
memory width	8	8
Number of functions	1	1
Number of terminals	28	28
word count	16384 words	16384 words
character code	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	16KX8	16KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.7 mm	5.7 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
Base Number Matches	1	1
