MKT 1818
Vishay Roederstein
Metallized Polyester Film Capacitors
Related Document: IEC 60384-2
Dimensions in millimeters
W Max.
FEATURES
• Compliant to RoHS directive 2002/95/EC
Marking
L Max.
0.6
PERMISSIBLE AC VOLTAGES
(RMS) UP TO 60 Hz
40 V
AC
, 63 V
AC
, 160 V
AC
, 200 V
AC
, 220 V
AC
H Max.
- 0.4
7.5 - 0.4
Ø 0.6
6.0
-
1
TEST VOLTAGE
(ELECTRODE/ELECTRODE)
1.6 x U
R
for 2 s
MAIN APPLICATIONS
Blocking, bypassing, filtering and timing, high frequency
coupling and decoupling. Interference suppression in low
voltage applications.
INSULATION RESISTANCE
Measured with 100 V
DC
(63 V
DC
series at 50 V
DC
) after one
minute
For C
≤
0.33 µF and U
R
> 100 V
DC
:
30 000 MΩ minimum value (100,000 MΩ typical value)
For C
≤
0.33 µF and U
R
≤
100 V
DC
:
15 000 MΩ minimum value (50 000 MΩ typical value)
MARKING
Manufacturer's logo/type/C-value/rated voltage/tolerance/
date of manufacture
DIELECTRIC
Polyester film
TIME CONSTANT
Measured at 100 V
DC
(63 V
DC
series measured at 50 V
DC
)
after one minute
For C > 0.33 µF and U
R
≤
100 V
DC
:
5000 s minimum value (15 000 s typical value)
ELECTRODES
Vacuum deposited aluminum
COATING
Flame retardant plastic case (UL-class 94 V-0), epoxy resin
sealed
CAPACITANCE DRIFT
Up to + 40 °C, ± 1.5 % for a period of two years
CONSTRUCTION
Extended metallized film (refer to general information)
LEADS
Tinned wire
DERATING FOR DC AND AC. CATEGORY
VOLTAGE U
C
At + 85 °C: U
C
= 1.0 U
R
At + 100 °C: U
C
= 0.8 U
R
IEC TEST CLASSIFICATION
55/100/56, according to IEC 60068
SELF INDUCTANCE
~ 6 nH measured with 2 mm long leads
OPERATING TEMPERATURE RANGE
- 55 °C to + 100 °C
PULL TEST ON LEADS
≥
30 N in direction of leads according to IEC 60068-2-21
CAPACITANCE RANGE
1000 pF to 1.0 µF
RELIABILITY
Operational life > 300 000 Hz
Failure rate < 2 FIT (40 °C and 0.5 x U
R
)
CAPACITANCE TOLERANCES
± 20 % (M), ± 10 % (K), ± 5 % (J)
RATED VOLTAGES (U
R
)
63 V
DC
, 100 V
DC
, 250 V
DC
, 400 V
DC
, 630 V
DC
For further details, please refer to the general information available at
www.vishay.com/doc?26033.
Document Number: 26009
Revision: 16-Jun-10
For technical questions, contact:
dc-film@vishay.com
www.vishay.com
1
MKT 1818
Vishay Roederstein
MAXIMUM PULSE RISE TIME
PCM
(mm)
7.5
Maximum Pulse Rise Time dV/dt [V/µs]
63 V
DC
12
100 V
DC
20
250 V
DC
32
400 V
DC
41
630 V
DC
70
Metallized Polyester Film Capacitors
Related Document: IEC 60384-2
Note
If the maximum pulse voltage is less than the rated voltage higher dV/dt values can be permitted.
DISSIPATION FACTOR TAN
δ
MEASURED AT
1 kHz
10 kHz
100 kHz
C
≤
0.1 µF
8 x 10
-3
15 x 10
-3
25 x 10
-3
Maximum values
VOLTAGE
CODE 06
63 V
DC
/40 V
AC
W
-
-
-
-
-
-
-
-
-
-
-
-
2.5
2.5
3.0
4.0
4.5
5.0
5.7
H
-
-
-
-
-
-
-
-
-
-
-
-
7.5
7.5
8.5
9.0
9.5
10.5
11.5
L
-
-
-
-
-
-
-
-
-
-
-
-
10.0
10.0
10.0
10.0
10.0
10.3
10.3
VOLTAGE
CODE 01
100 V
DC
/63 V
AC
W
-
-
-
-
-
-
-
-
2.5
2.5
2.5
2.5
3.0
3.0
4.0
5.0
5.7
-
-
H
-
-
-
-
-
-
-
-
7.5
7.5
7.5
7.5
8.5
8.5
9.0
10.5
11.5
-
-
L
-
-
-
-
-
-
-
-
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.3
10.3
-
-
VOLTAGE
CODE 25
250 V
DC
/160 V
AC
W
-
-
-
-
-
-
2.5
2.5
3.0
3.0
4.0
4.5
5.0
-
-
-
-
-
-
H
-
-
-
-
-
-
7.5
7.5
8.5
8.5
9.0
9.5
10.5
-
-
-
-
-
-
L
-
-
-
-
-
-
10.0
10.0
10.0
10.0
10.0
10.0
10.3
-
-
-
-
-
-
VOLTAGE
CODE 40
400 V
DC
/200 V
AC
W
-
-
-
2.5
2.5
2.5
3.0
-
-
-
-
-
-
-
-
-
-
-
-
H
-
-
-
7.5
7.5
7.5
8.5
-
-
-
-
-
-
-
-
-
-
-
-
L
-
-
-
10.0
10.0
10.0
10.0
-
-
-
-
-
-
-
-
-
-
-
-
VOLTAGE
CODE 63
(1)
630 V
DC
/220 V
AC
W
2.5
2.5
2.5
3.0
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
H
7.5
7.5
7.5
8.5
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
L
10.0
10.0
10.0
10.0
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.1 µF < C
≤
1.0 µF
8 x 10
-3
15 x 10
-3
-
CAPACITANCE
1000 pF
1500 pF
2200 pF
3300 pF
4700 pF
6800 pF
0.01 µF
0.015 µF
0.022 µF
0.033 µF
0.047 µF
0.068 µF
0.1 µF
0.15 µF
0.22 µF
0.33 µF
0.47 µF
0.68 µF
1.0 µF
Notes
CAPACITANCE
CODE
-210
-215
-222
-233
-247
-268
-310
-315
-322
-333
-347
-368
-410
-415
-422
-433
-447
-468
-510
• Further values upon request
(1)
Not
suitable for mains applications.
Please refer to X-capacitors in our catalog “RFI Suppression Components”.
RECOMMENDED PACKAGING
LETTER
CODE
D
G
F
W
-
Note
(1)
TYPE OF
PACKAGING
Ammo
Ammo
Reel
Reel
Bulk
HEIGHT (H)
(mm)
16.5
18.5
16.5
18.5
-
REEL DIAMETER
(mm)
S
(1)
S
(1)
ORDERING CODE
EXAMPLE
MKT 1818-310-255-D
MKT 1818-310-255-G
MKT 1818-310-255-F
MKT 1818-310-255-W
MKT 1818-310-255
PCM
7.5
X
X
X
X
X
350
350
-
S = box size 55 mm x 210 mm x 340 mm (W x H x L)
www.vishay.com
2
For technical questions, contact:
dc-film@vishay.com
Document Number: 26009
Revision: 16-Jun-10
MKT 1818
Metallized Polyester Film Capacitors
Related Document: IEC 60384-2
Vishay Roederstein
100
7
5
3
2
10
7
5
3
2
1
10
3
63 V
DC
2
3
V
RMS
V
RMS
Capacitance in µF
0.1
0.1
5
0.2
2
0.3
3
0.4
7
0 .6
8
1.0
100
7
5
3
2
10
7
5
3
2
100 V
DC
2
3
5 7 10
3
2
3
0.0
22
0.0
33
0.0
0.4
7 0.3 0
3 .2 0 47
2 .1
0.0
6
8
5 7 10
4
2
3
5 7 10
5
2
3
5 7 10
6
f [Hz]
1
10
2
Capacitance in µF
4
5 7 10
2
3
5
5 7 10
f [Hz]

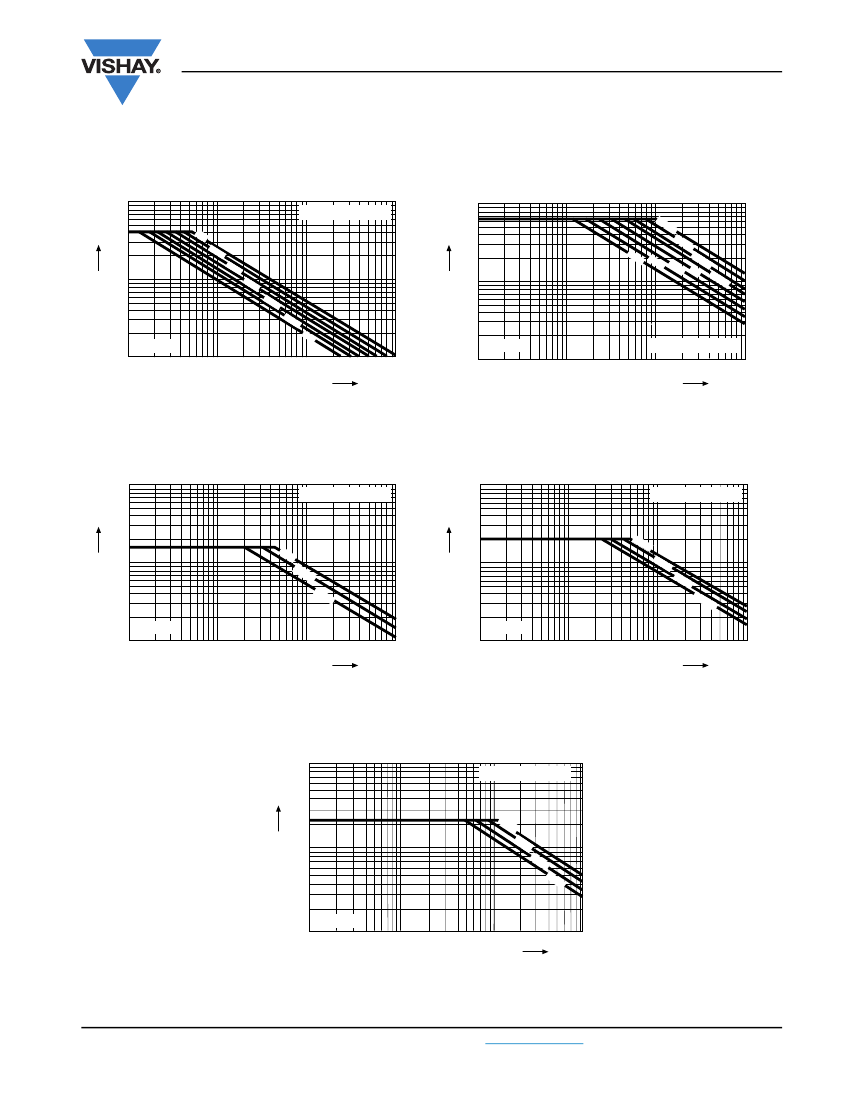

Permissible AC Voltage versus Frequency
Permissible AC Voltage versus Frequency
1000
7
5
3
2
100
7
5
3
2
10
10
2
250 V
DC
2
3
5 7 10
3
2
3
0.0
1
V
RMS
V
RMS
Capacitance in µF
1000
7
5
3
2
100
7
5
3
2
400 V
DC
2
3
5 7 10
3
2
3
Capacitance in pF
33
00
47
00
6
8
00
10
,00
0
0.0
22
0.0
47
4
5 7 10
2
3
5
5 7 10
f [Hz]
10
10
2
5 7 10
4
2
3
5 7 10
5
f [Hz]
Permissible AC Voltage versus Frequency
Permissible AC Voltage versus Frequency
V
RMS
1000
7
5
3
2
100
7
5
3
2
10
2
10
630 V
DC
2
3 5 7 10
3
2
3
Capacitance in pF
10
00
15
00
22
00
33
00
5 7 10
4
2
3
Permissible AC Voltage versus Frequency
5 7 10
5
f [Hz]
Document Number: 26009
Revision: 16-Jun-10
For technical questions, contact:
dc-film@vishay.com
www.vishay.com
3
