Surge arrester
2-electrode arrester
B88069X5010****
M51-C90X
Features
Small size
High current rating
Fast response time
Stable performance over life
Low capacitance
High insulation resistance
RoHS-compatible
Applications
Modem
XDSL-splitter
Data lines
Tuner
Antenna
Electrical specifications
DC spark-over voltage
1) 2)
Impulse spark-over voltage
at 100 V/µs - for 99% of measured values
- typical values of distribution
at 1 kV/µs
Service life
10 operations
1 operation
10 operations
1 operation
1 operation
300 operations
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking, blue negative
90
YY
O
1)
2)
3)
90
20
< 400
< 300
< 600
< 550
5
10
5
10
0.5
100
>1
<1
~ 15
~ 0.8
~ 60
~1
-40 ... +90
40/ 90/ 21
90 YY O
- Nominal voltage
- Year of production
- Non radioactive
V
%
V
V
V
V
A
A
kA
kA
kA
A
G
pF
V
A
V
g
°C
- for 99% of measured values
- typical values of distribution
50 Hz, 1 s
50 Hz, 0.18 s (9 cycles)
8/20 µs
8/20 µs
3)
10/350 µs
10/1000 µs
Insulation resistance at 50 V
DC
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
Electrical specifications may vary after stress test but device will remain in a safe mode
Terms in accordance with ITU-T Rec. K.12; IEC 61663-2 and IEC 61643-311.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
Issue 09 / 2013-09-25
Surge arrester
2-electrode arrester
B88069X5010****
M51-C90X

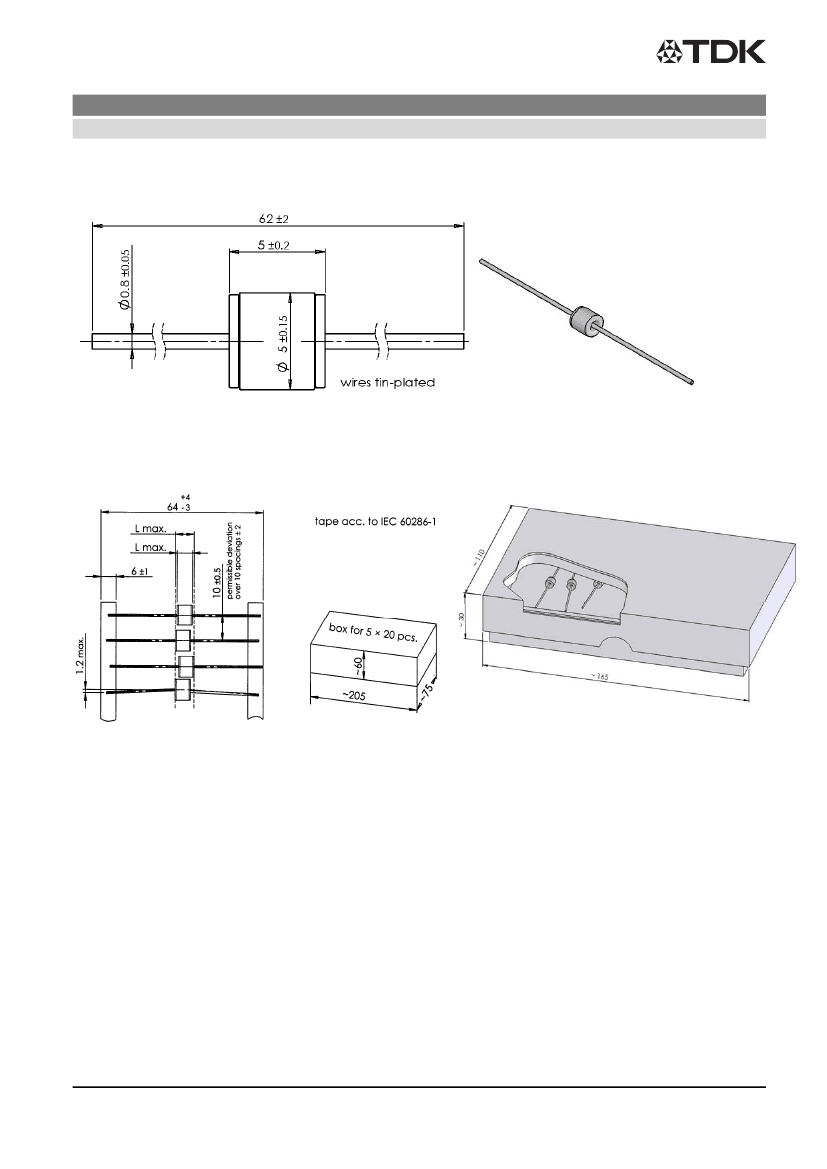

Dimensional drawing in mm
Ordering codes and packing advices
B88069X5010S102 = 100 pcs. on 5 taped stripes
B88069X5010C102 = 100 pcs. in container
Cautions and warnings
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
Surge arresters may be used only within their specified values. In case of overload, the lead
contacts may fail or the component may be destroyed.
Surge arresters must be handled with care and must not be dropped.
Damaged surge arresters must not be re-used.
