B623F-2T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> B623F-2T

B623F-2T: DescriptionSilicon Controlled Rectifier, 46000mA I(T), 800V V(RRM), 2 Element, ROHS COMPLIANT PACKAGE-6; CategoryAnalog mixed-signal IC Trigger device; File Size709KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

B623F-2T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B623F-2T	-	-	View	Buy Now

B623F-2T Overview

Silicon Controlled Rectifier, 46000mA I(T), 800V V(RRM), 2 Element, ROHS COMPLIANT PACKAGE-6

B623F-2T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	FLANGE MOUNT, R-XUFM-D6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON ANODE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	80 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G-2AK-CA-CK
Description of screw terminals	0
Maximum holding current	200 mA
JESD-30 code	R-XUFM-D6
On-state non-repetitive peak current	650 A
Number of components	2
Number of terminals	6
Maximum on-state current	46000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal surface	COPPER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

DataSheet

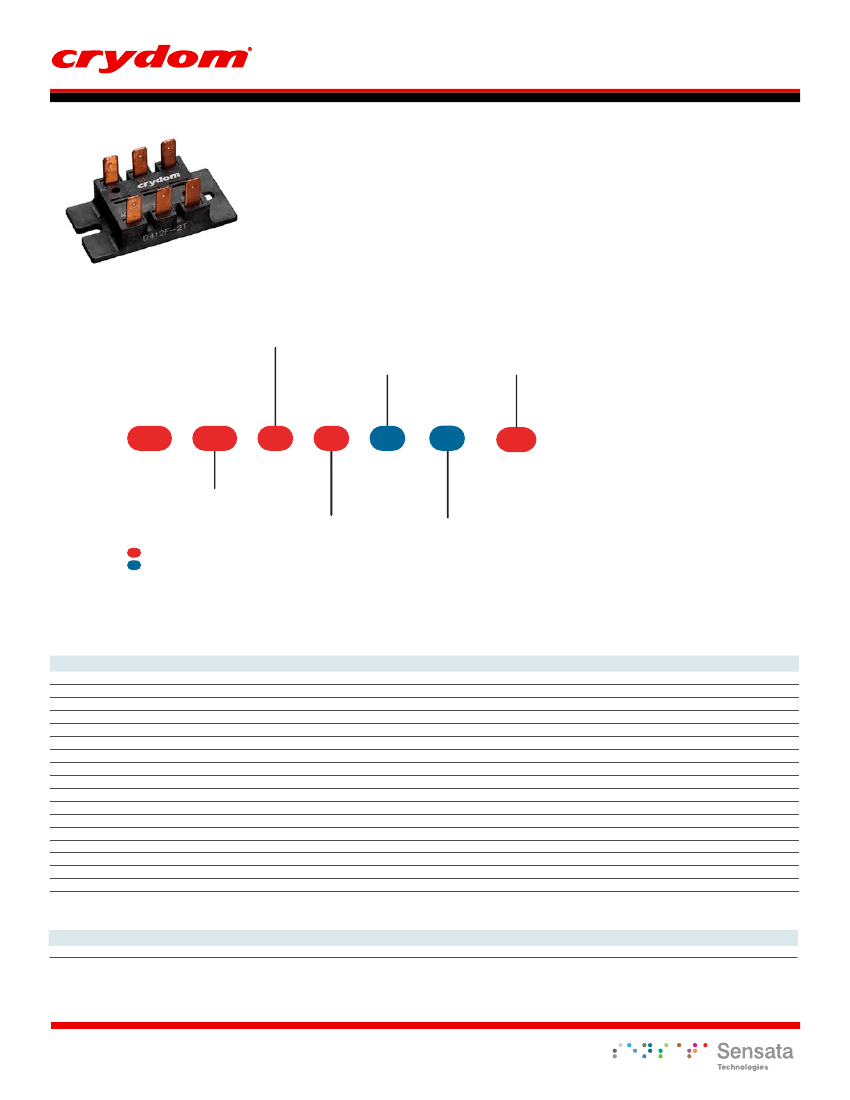

B-2T, B-2 Series

•

Eight Circuits to Choose from

•

For AC or DC Variable Voltage Output Up to 15KW

•

UL Recognized E72445

Power Modules

AVAILABLE OPTIONS

Circuit Type

1 2 3 4

5 6 7 8

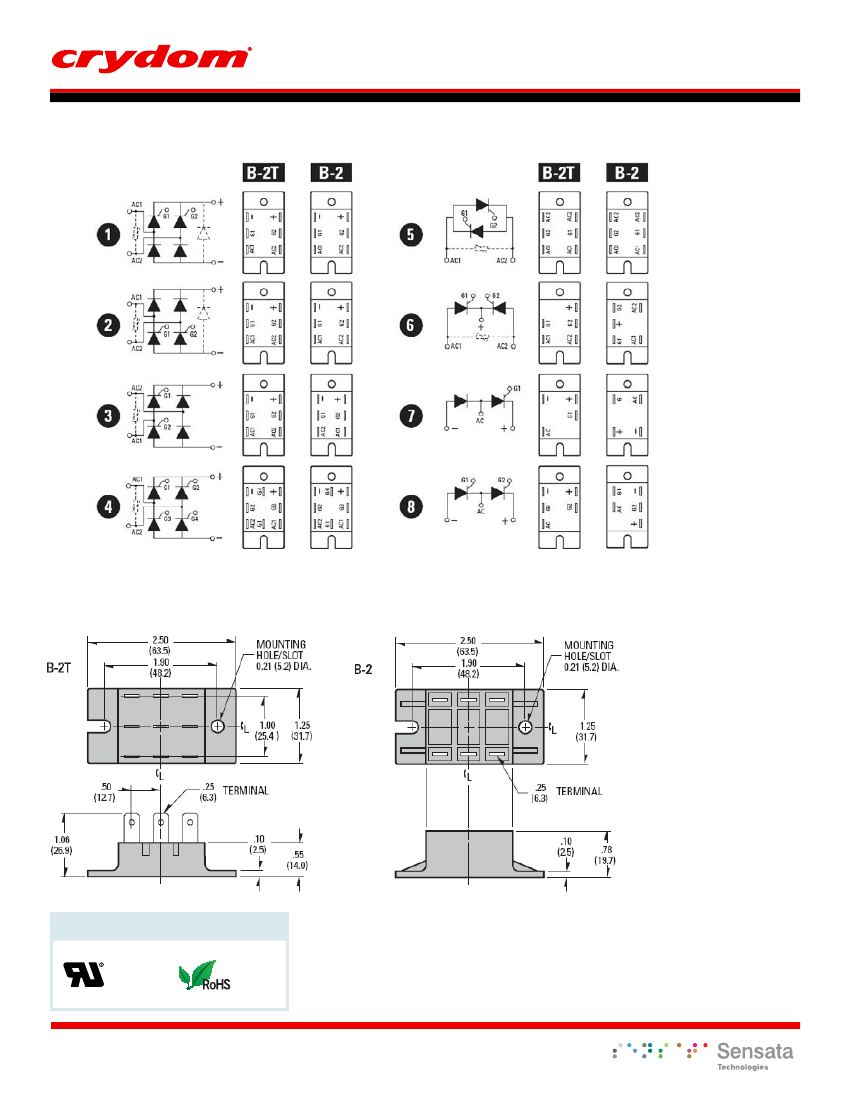

(see schematic

diagrams)

Free Wheeling Diode

Blank:

Not Included

Included

(For circuits 1 & 2 only)

Case Style

-2T:

Standard

-2:

With Isolation Barriers

Series

Current

25 Amps

42.5 Amps

AC Line Voltage

120 VAC

240 VAC

280 VAC

480 VAC

-2T

External Suppressor

Blank:

Not included

SE:

Included

(-2T only, Circuits 1-6 only)

Required for valid part number

For options only and not required for valid part number

Note: Not all combinations available

ELECTRICAL SPECIFICATIONS

Symbol

Maximum DC Output Current (Tc = 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Critical Rate of Rise of On-State Current @ TJ=125°C

Critical Rate of Rise of Off-State Voltage [V/ s]

AC Line Input Voltage (Repetitive Peak Reverse Voltage)

Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz)

Maximum I²T for Fusing (t=8.3ms) [A²sec]

Minimum Required Gate Current to Trigger @ 25°C

Minimum Required Gate Voltage to Trigger @ 25°C

Average Gate Power

Maximum Peak Reverse Gate Voltage

Maximum Thermal Resistance, Junction to Ceramic Base per Chip

Isolation Voltage

di/dt

dv/dt

RMS

TSM

G(AV)

ISOL

25A

1.65V @ 25A

-40 - 125°C

100A/ s

500V/ s

120 (400V

RMS

)

240 (400V

RMS

)

280 (400V

RMS

)

480 (400V

RMS

)

250A

260

60mA

2.5V

0.5W

5.0V

0.9°C/W

2500 Vrms

42.5A

1.65V @ 42.5A

-40 - 125°C

100A/ s

500V/ s

100 (400V

RMS

)

240 (400V

RMS

)

280 (400V

RMS

)

480 (400V

RMS

)

600A

1500

80mA

3.0V

0.5W

5.0V

0.7°C/W

2500 Vrms

GENERAL SPECIFICATIONS

Description

Weight (typical)

Parameters

1.5 oz (42.5g)

Do not forget to visit us at:

www.crydom.com
