E-Series Surface Mount Mixer
5 - 1000 MHz
EMRS-2MH, EMRSL-2MH
V3.00
Features
q
q
q
SM-1
LO Power: +13 dBm
Up to +9 dBm RF
Surface Mount
Specifications
@ 25°C
Frequency Range
RF
LO
IF
Conversion Loss (dB)
10 - 500 MHz
5 - 1000 MHz
Isolation (dB)
LO to RF
5 - 50 MHz
50 - 500 MHz
500 - 1000 MHz
LO to IF
5 - 50 MHz
50 - 500 MHz
500 - 1000 MHz
Typical
6.5
7.0
Typical
60
40
25
55
30
20
5 - 1000 MHz
5 - 1000 MHz
DC - 1000 MHz
Maximum
8.0
9.5
Minimum
40
20
18
30
20
12
Operating Characteristics
Impedance
RF input for 1dB Compression
50 Ohms Nominal
+ 9 dBm

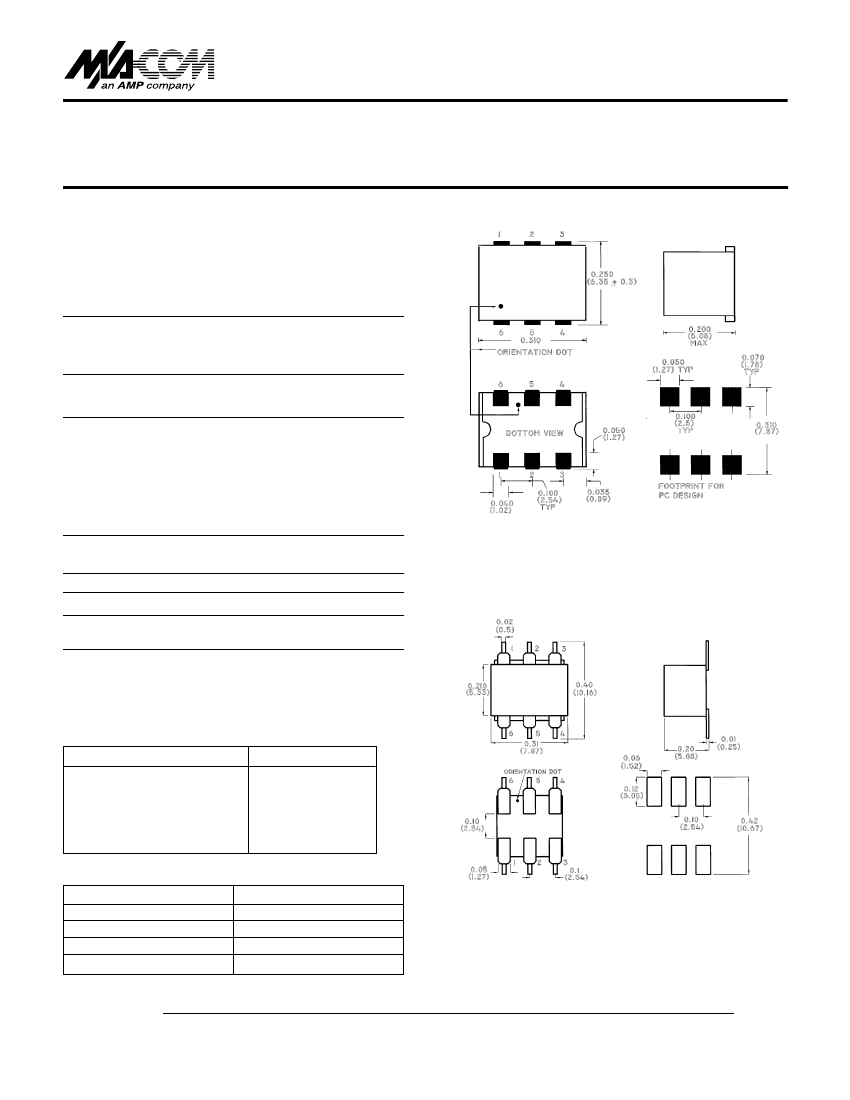

Dimensions in ( ) are in mm.
Unless Otherwise Noted: .x = ±0.04 (1.00)
.xx = ±0.02 (0.50)
.xxx = ±0.010 (0.250)
SM-24
Ordering Information
Part No.
EMRS-2MH
EMRS-2MHTR
EMRSL-2MH
EMRSL-2MHTR
Packaging
SM-1 in Tubes
SM-1 in Forward Tape & Reel
SM-24 in Tubes
SM-24 in Forward Tape & Reel
Absolute Maximum Ratings
Parameter
RF Power
Peak IF Current
Storage Temperature
Operating Temperature
Pin Temperature (10 Seconds)
Absolute Maximum
150 mW
40 mA
-55°C to 100°C
-55°C to 100°C
260°C
Pin Configuration (Typical)
Function
LO
RF
IF
Ground
Pin No.
1
4
5
2,3,6
S 0178 B, S 0523
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .x = ±0.04 (1.00)
.xx = ±0.02 (0.50)
.xxx = ±0.010 (0.250)
Specifications Subject to Change Without Notice.
