8406602QX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 8406602QX

8406602QX: DescriptionParallel I/O Port, 24 I/O, CMOS, CDIP40, CERAMIC, DIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size507KB，22 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

8406602QX Overview

Parallel I/O Port, 24 I/O, CMOS, CDIP40, CERAMIC, DIP-24

8406602QX Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	CERAMIC, DIP-24
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-CDIP-T40
Number of I/O lines	24
Number of ports	3
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

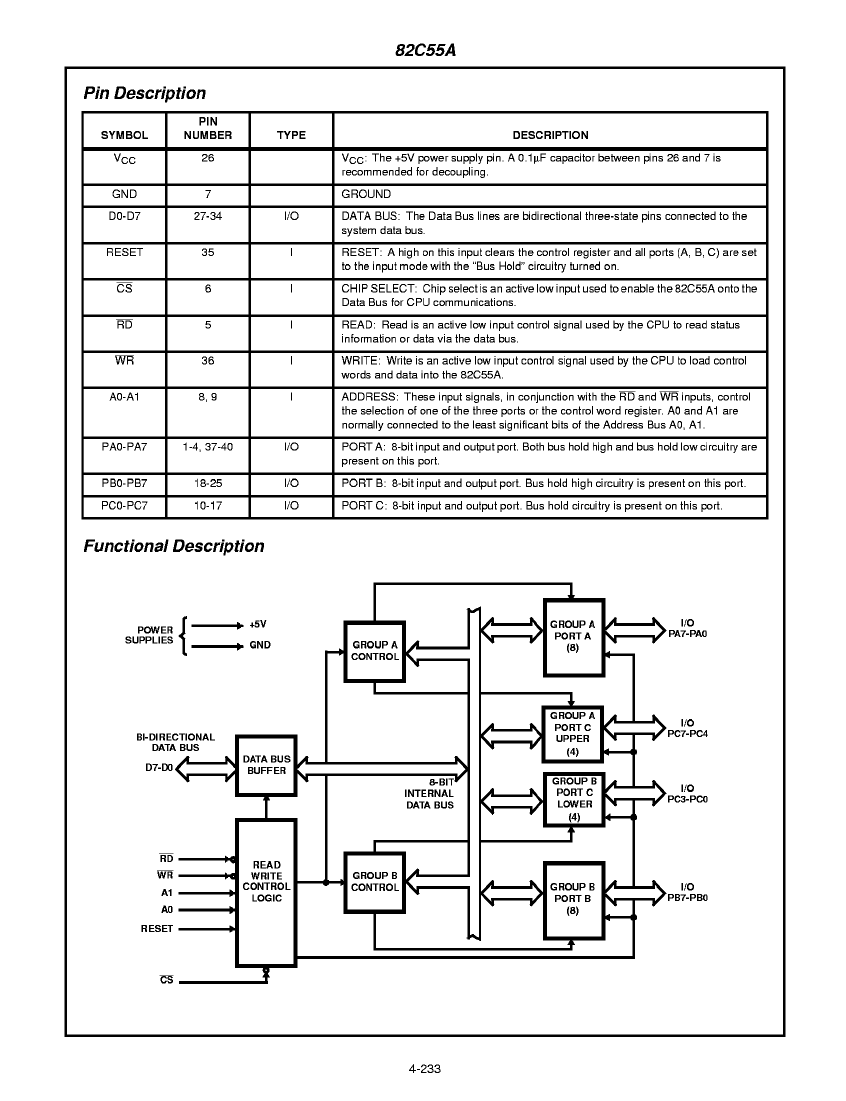

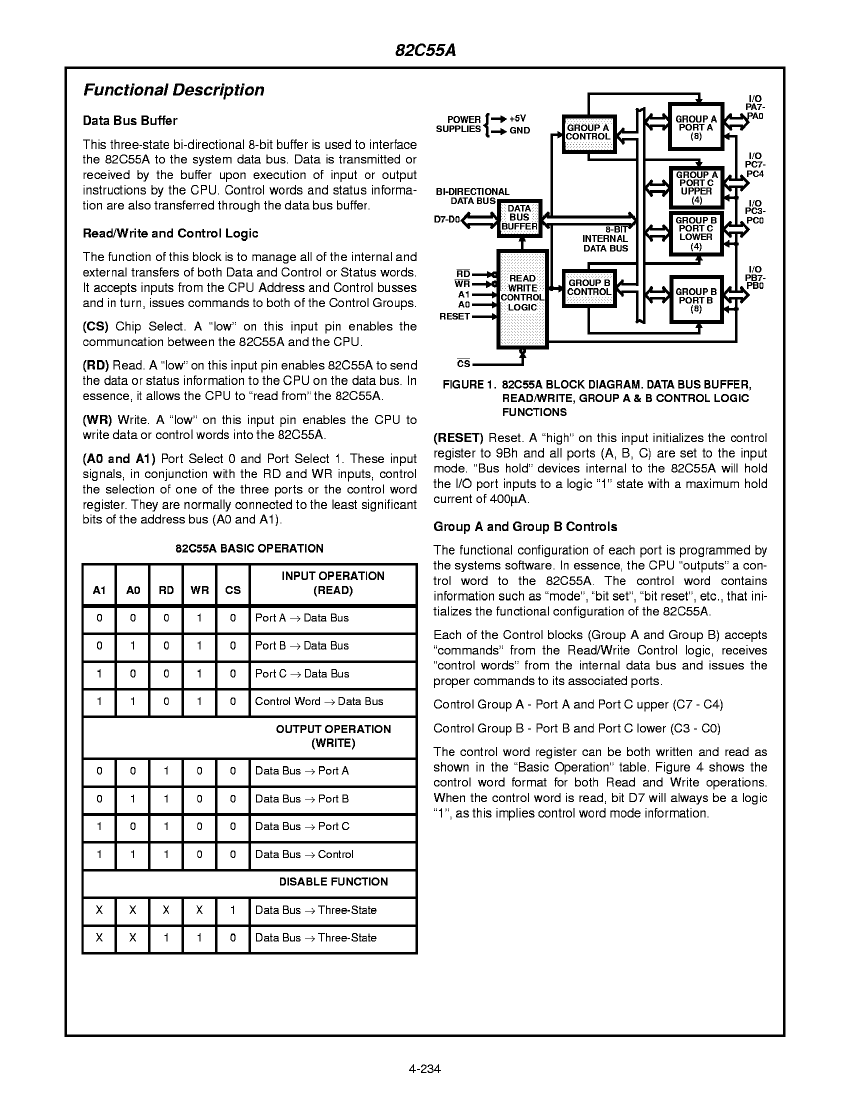

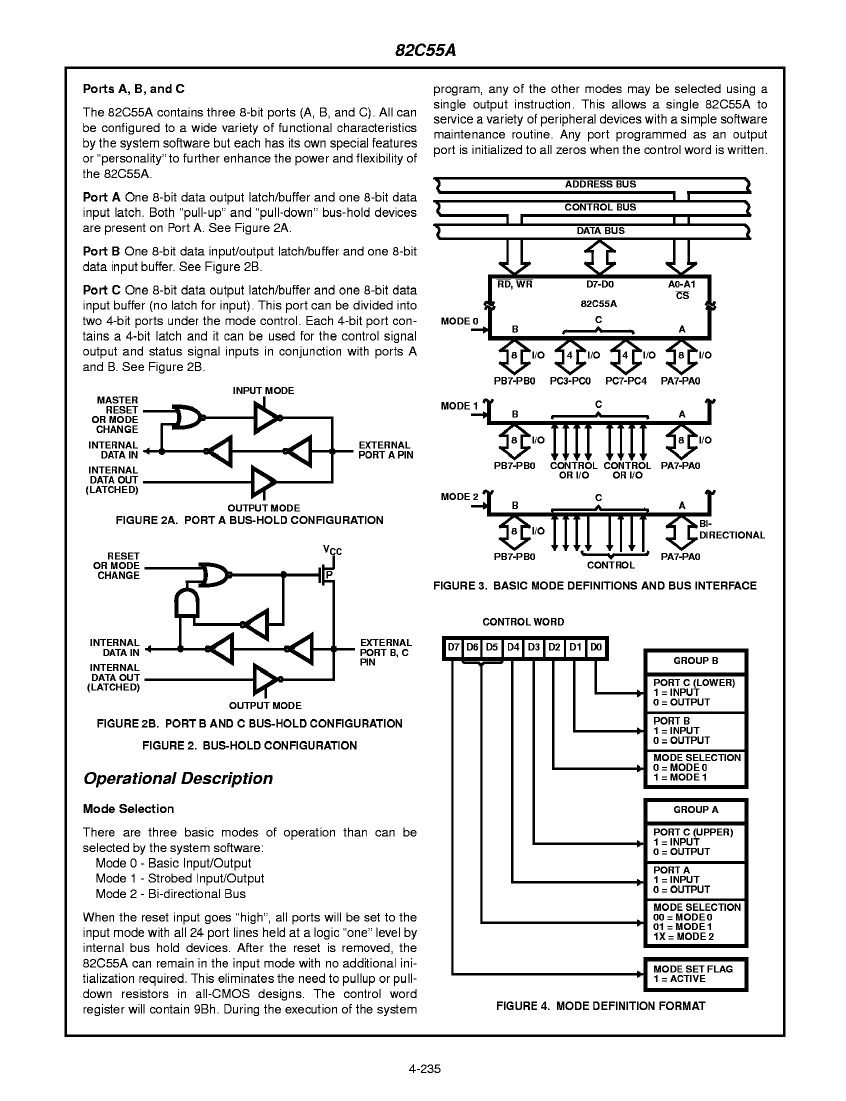

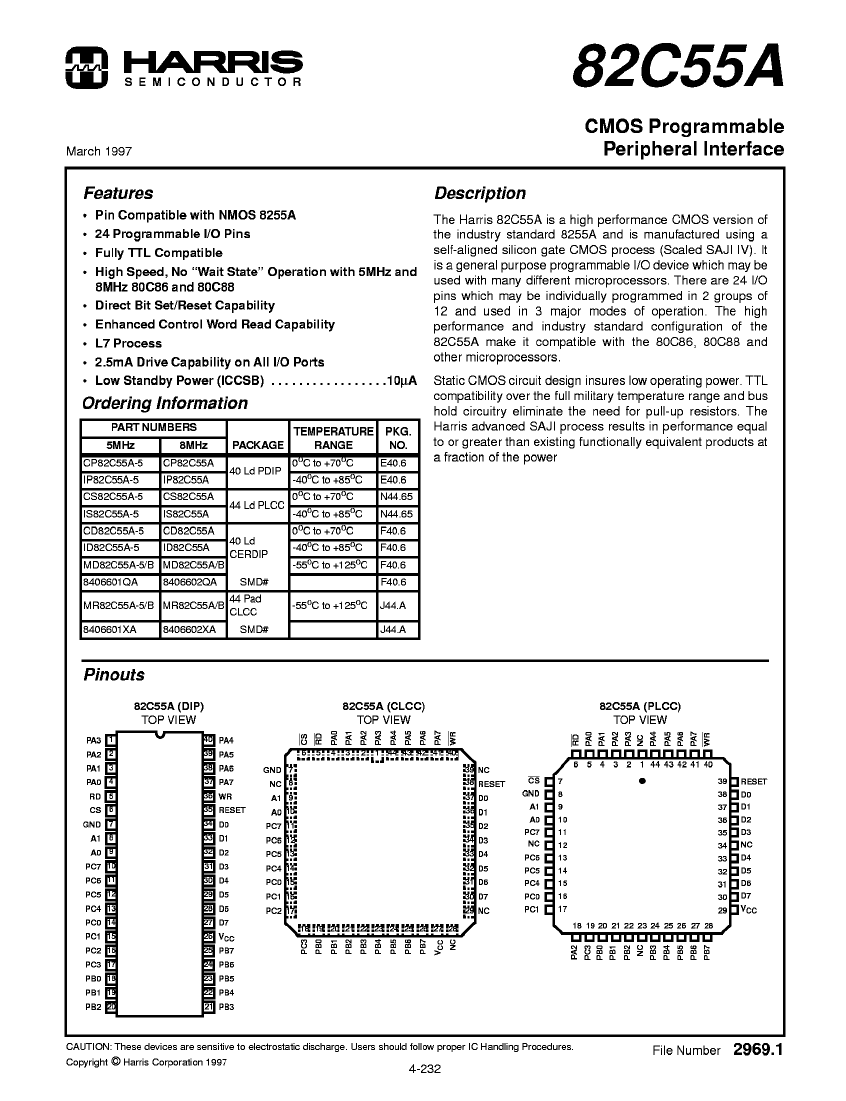

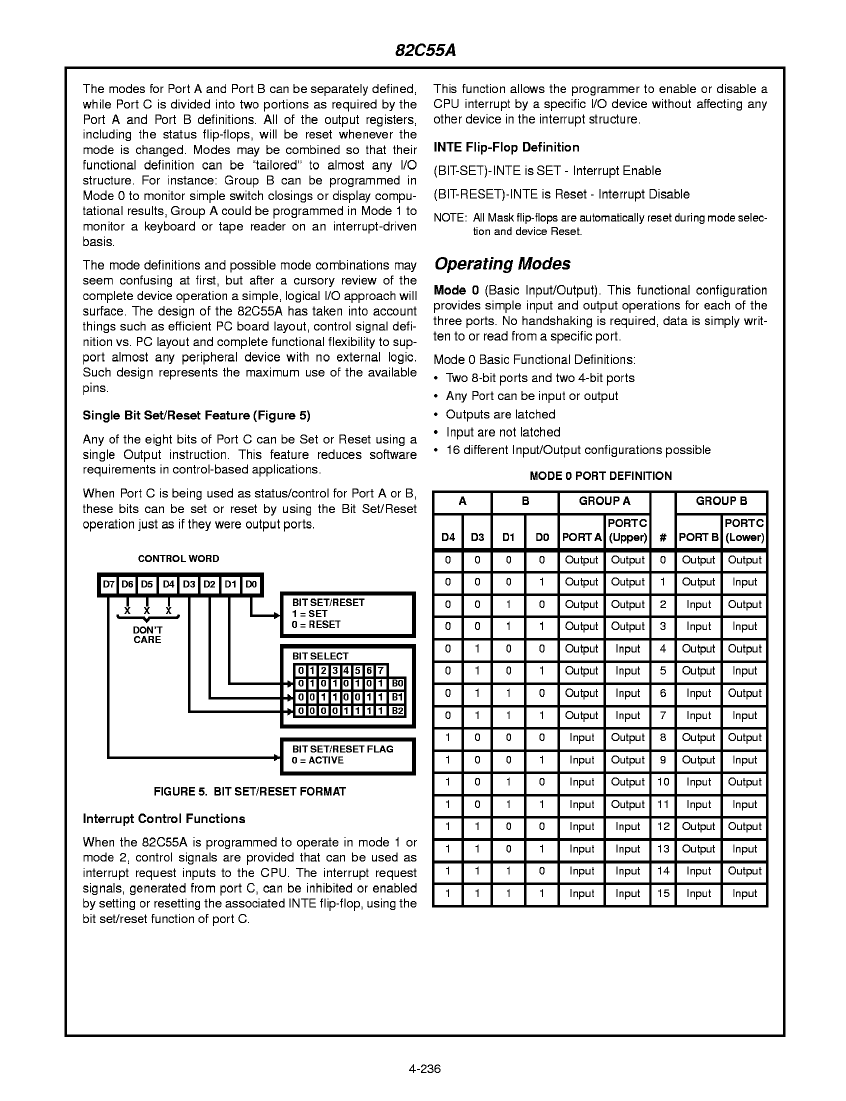

Preview

Download Datasheet

View All

8406602QX Related Products

	8406602QX	8406601QX	8406602XX	MD82C55A-5/B	MD82C55A/B	MR82C55A-5/B	8406601XX	MR82C55A/B
Description	Parallel I/O Port, 24 I/O, CMOS, CDIP40, CERAMIC, DIP-24	Parallel I/O Port, 24 I/O, CMOS, CDIP40, CERAMIC, DIP-40	Parallel I/O Port, 24 I/O, CMOS, CQCC44, CERAMIC, CC-44	Parallel I/O Port, 24 I/O, CMOS, CDIP40	Parallel I/O Port, 24 I/O, CMOS, CDIP40	Parallel I/O Port, 24 I/O, CMOS, CQCC44	Parallel I/O Port, 24 I/O, CMOS, CQCC44, CERAMIC, CC-44	Parallel I/O Port, 24 I/O, CMOS, CQCC44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-CDIP-T40	R-CDIP-T40	S-CQCC-N44	R-CDIP-T40	R-CDIP-T40	S-CQCC-N44	S-CQCC-N44	S-CQCC-N44
Number of I/O lines	24	24	24	24	24	24	24	24
Number of ports	3	3	3	3	3	3	3	3
Number of terminals	40	40	44	40	40	44	44	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
Maker	Harris	Harris	Harris	-	Harris	Harris	Harris	Harris
