FGAX329-720G: DescriptionIC Socket, BGA329, 329 Contact(s),; CategoryThe connector socket; File Size725KB，2 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

FGAX329-720G Overview

IC Socket, BGA329, 329 Contact(s),

FGAX329-720G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	BGA329
Shell material	GLASS FILLED EPOXY
JESD-609 code	e4
Number of contacts	329
Base Number Matches	1

Preview

Download Datasheet

View All

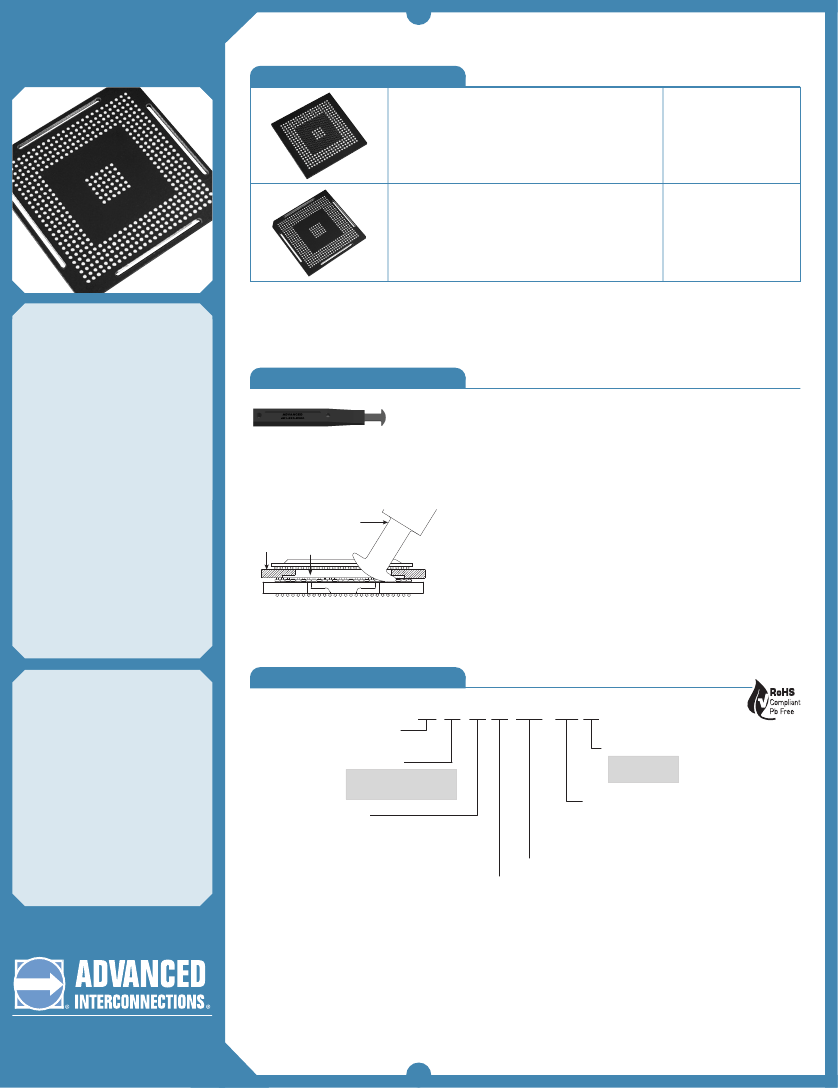

BGA Adapters

Table of Models

Ball Grid Array (BGA) Adapters

For use with BGA Sockets on pages 8-9

Description:

Standard Adapter (A)

Material: FR-4 Fiberglass Epoxy Board

Index: -40°C to 140°C (-40°F to 284°F)

Note: Mates with Standard Socket (S)

Insulator Size:

BGA device body

+.079/(2.00mm)

Description:

Extraction Slot Adapter (AX)

Material: FR-4 Fiberglass Epoxy Board

Index: -40°C to 140°C (-40°F to 284°F)

Note: Mates with Extraction Socket (SB)

Insulator Size:

BGA device body

+.157/(4.00mm)

Features:

• Soldering BGA Device to adapter

subjects BGA to less thermal

stress than soldering BGA directly

to a PCB due to the adapter’s

lower mass.

• Uses same footprint as BGA

device.

• Custom adapters available for

heat sink attachment.

• Gold plated screw-machined

terminals for superior durability.

• Unique SMT Adapter provides

reliable solution for mounting or

socketing LGA or re-worked BGA

devices.

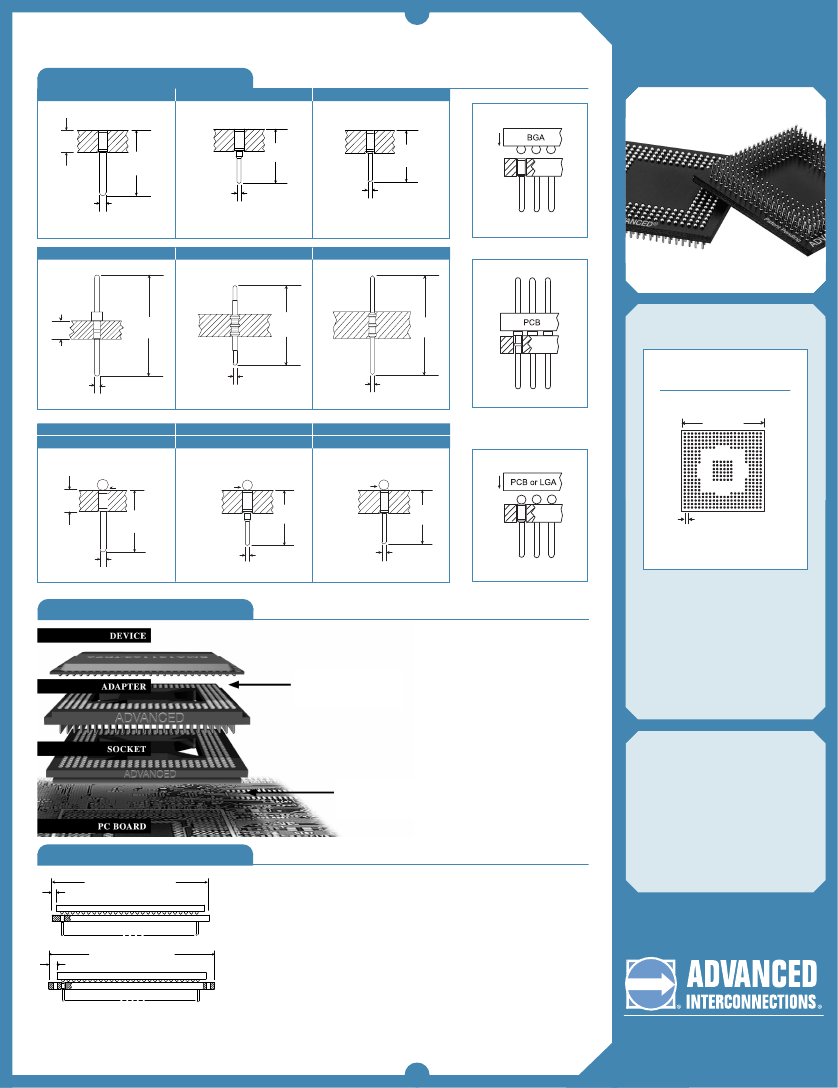

• SMT Adapters mate with our BGA

Sockets for LGA to BGA

conversion or SMT Board to

Board applications.

Note: For use with LGA or reworked BGA devices, select surface mount (SMT) terminals which

feature solder balls on device side. SMT Adapter terminals may also be used for surface mount

board to board applications.

Options

Extraction Tool

P/N 8125

• Insert “T” bar end of tool into extraction slot adapter.

• Slide tool to end of slot and pry adapter from socket.

• Repeat in additional slots until adapter is separated from socket.

• Works with LCP or FR-4 sockets.

Extraction

Tool

Adapter

Extraction

Slot

BGA Device

Socket

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Solder Ball:

Standard: 63Sn/37Pb

Lead-free: 95.5Sn/4.0Ag/0.5Cu

Plating:

G - Gold over Nickel

Gold per ASTM-B-488

Nickel per QQ-N-290

How To Order

Footprint Dash #

If Applicable*

H A XXX - 715 G

Terminal Plating

RoHS Compliant:

Body Type

RoHS Compliant Insulators:

G - Gold

Terminal Type

See options - available with Standard,

male to male, or surface mount

terminal styles.

F - FR-4

Pitch

G = .050/(1.27mm)

H = .039/(1.00mm)

J = .0315/(0.80mm)

Number of Positions

Model Type

A = Standard Adapter

AX = Extraction Slot Adapter

(1.27 and 1.00mm only)

*See footprints section or

online database.

Note: See pages 4-5 for 0.50mm and 0.65mm pitch.

Consult factory for custom 0.75mm pitch designs.

For SMT Adapters, select Model Type A or AX

and appropriate SMT Terminal Type from page 7.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Catalog 16 rev. Sept. 07

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

inch/(mm)
