UNISONIC TECHNOLOGIES CO., LTD
MJE13001
NPN SILICON POWER
TRANSISTOR
FEATURES
* Collector-base voltage: V
(BR)CBO
=600V
* Collector current: I
C
=0.2A
NPN SILICON TRANSISTOR
Lead-free:
MJE13001L
Halogen-free: MJE13001G
ORDERING INFORMATION
Normal
MJE13001-x-T92-B
MJE13001-x-T92-K
Ordering Number
Lead Free
Halogen Free
MJE13001L-x-T92-B MJE13001G-x-T92-B
MJE13001L-x-T92-K MJE13001G-x-T92-K
Package
TO-92
TO-92
Pin Assignment
1
2
3
B
C
E
B
C
E
Packing
Tape Box
Bulk
MJE13001L-x-T92-B
(1)Packing Type
(2)Package Type
(3)Rank
(4)Lead Plating
(1) B: Tape Box, K: Tape Box
(2) T92: TO-92
(3) x: refer to Classification of h
FE
(4) G: Halogen Free, L: Lead Free, Blank: Pb/Sn
www.unisonic.com.tw
1 of 3
QW-R201-055.E
Copyright © 2011 Unisonic Technologies Co., Ltd
MJE13001
ABSOLUTE MAXIMUM RATINGS
NPN SILICON TRANSISTOR
PARAMETER
SYMBOL
RATINGS
UNIT
Collector-Emitter Voltage
V
CEO
400
V
Collector-Base Voltage
V
CBO
600
V
Emitter Base Voltage
V
EBO
7
V
Collector Current
I
C
200
mA
Collector Power Dissipation
P
C
750
mW
Junction Temperature
T
J
+150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
a
=25℃, unless otherwise specified)
PARAMETER
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Base-Emitter Voltage
Collector Cutoff Cut-Off Current
Collector Emitter Cut-Off Current
Emitter Cutoff Cut-Off Current
ON CHARACTERISTICS
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
SMALL-SIGNAL CHARACTERISTICS
Current Gain Bandwidth Product
Resistive Load
Storage Time
Fall Time
SYMBOL
BV
CBO
BV
CEO
BV
EBO
V
BE
I
CBO
I
CEO
I
EBO
h
FE1
*
h
FE2
V
CE(SAT)
V
BE(SAT)
f
T
t
S
t
F
TEST CONDITIONS
I
C
=100
μA,
I
E
=0
I
C
=1mA, I
B
=0
I
E
=100
μA,
I
C
=0
I
E
=100 mA
V
CB
=600V,I
E
=0A
V
CE
=400V, I
B
=0
V
EB
=7V, I
C
=0A
V
CE
=20 V, I
C
=20mA
V
CE
=10V, I
C
=0.25mA
I
C
=50mA, I
B
=10mA
I
C
=50mA, I
B
=10mA
I
C
=20mA, V
CE
=20V, f=1MHz
I
C
=50mA, I
B1
=-I
B2
=5mA, V
CC
=45V
MIN
600
400
7
TYP
MAX UNIT
V
V
V
V
μA
μA
μA
1.1
100
200
100
10
5
0.5
1.2
8
1.5
0.3
70
V
V
MHz
μs
μs
CLASSIFICATION OF h
FE1
*
RANK
A
B
15-20
C
20-25
D
25-30
E
30-35
F
35-40
G
40-45
H
45-50
I
50-55
J
55-60
K
60-65
L
65-70
RANGE 10-15
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R201-055.E
MJE13001

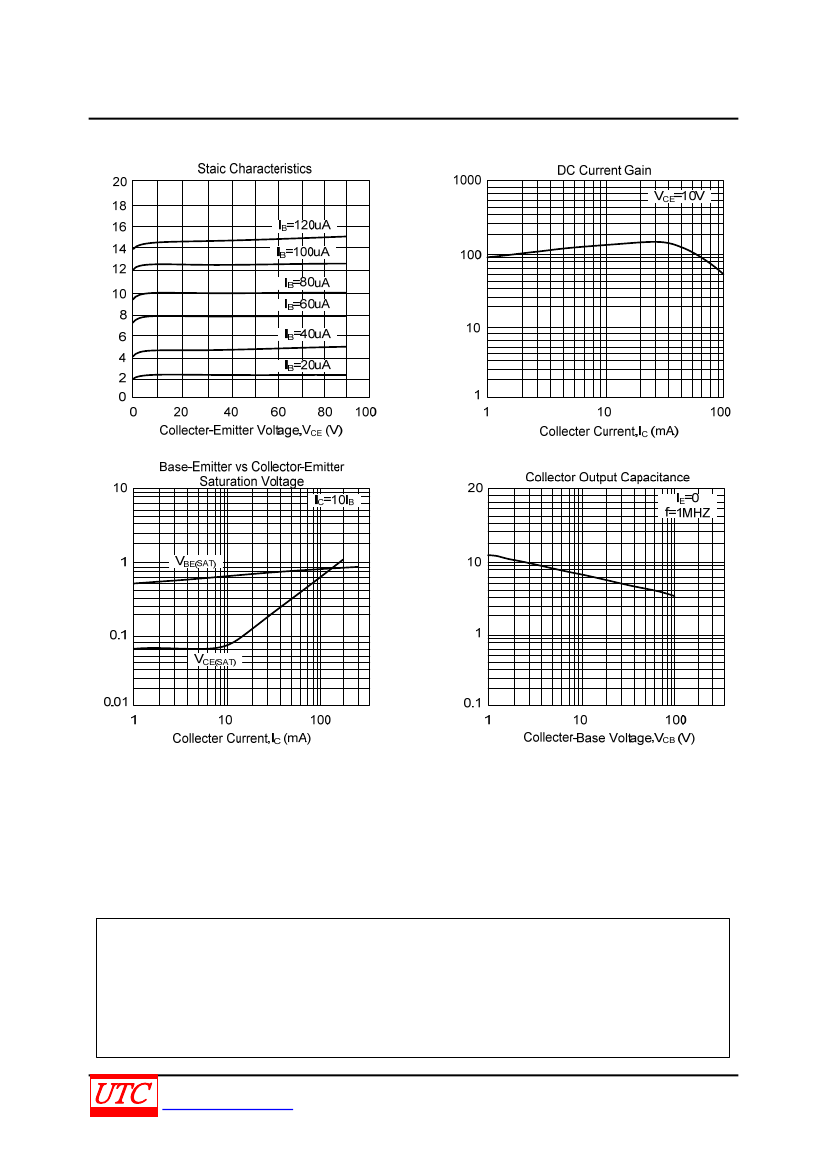

TYPICAL CHARACTERISTICS
NPN SILICON TRANSISTOR
Collecter Current,I
C
(mA)
Saturation Voltage,V
BE(SAT)
,V
CE(SAT)
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
Capacitance,C
OB
(pF)
DC Current Gain,h
FE
3 of 3
QW-R201-055.E
