2072-3301 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2072-3301

2072-3301: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2072-3301 Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

2072-3301 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.248 inch
subject depth	0.362 inch
body length	1.285 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Manufacturer's serial number	2072
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

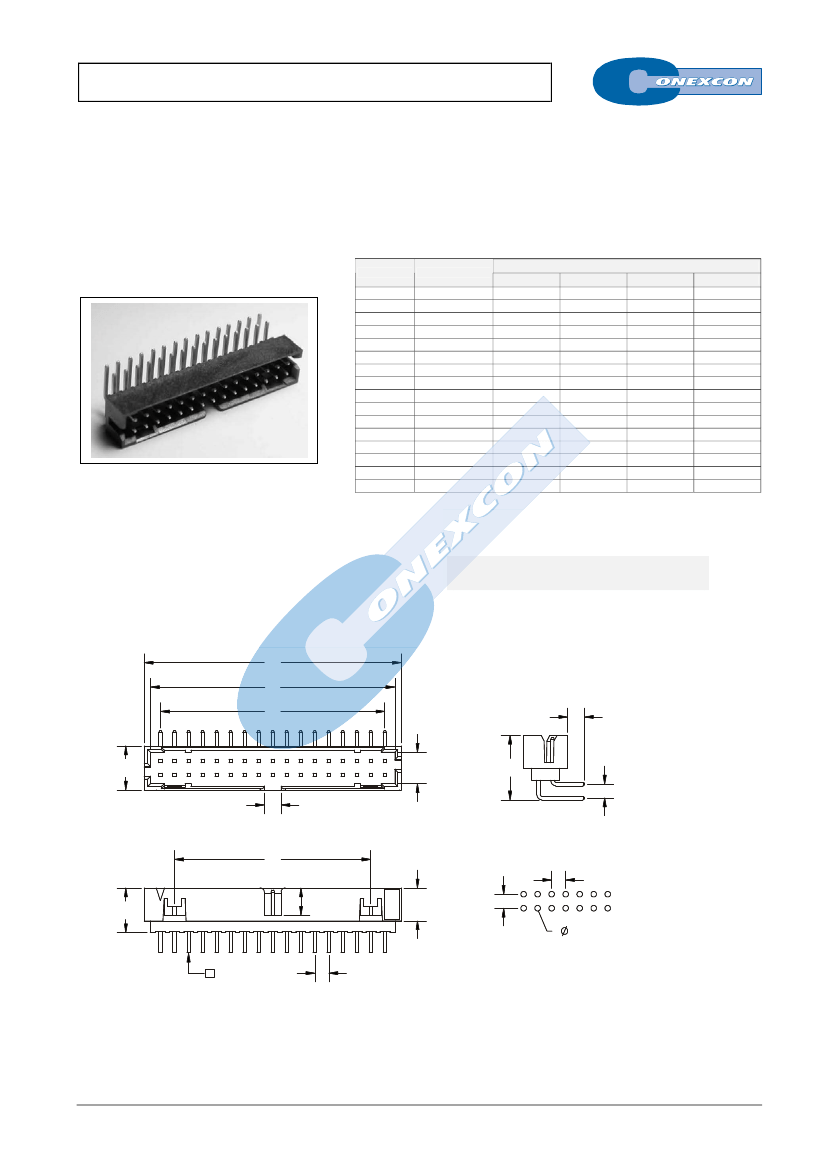

2.00mm RIGHT ANGLE SHROUDED HEADER

2072 SERIES.

2.00 x 2.00mm(0.079 x 0.079”). Low Profile. For PCB Solder

Features





Available in 6, 8, 10, 12, 14, 16, 20, 22, 24, 26, 30, 34, 36,

40, 44, 50 and 68 circuits

Insulator Material : LCP Glass filled UL 94V-0



Low profile. Fully shrouded

0.50mm square pin. Different plating options are available

Mates with 2070 series IDC connector

Ordering and Dimensional Information

Dimensions

8.65(0.341)

10.65(0.420)

12.65(0.498)

14.65(0.577)

16.65(0.655)

18.65(0.734)

22.65(0.892)

24.65(0.970)

26.65(1.049)

28.65(1.128)

32.65(1.285)

36.65(1.443)

42.65(1.679)

46.65(1.837)

52.65(2.073)

70.65(2.781)

6.85(0.270)

8.85(0.348)

10.85(0.427)

12.85(0.506)

14.85(0.585)

16.85(0.663)

20.85(0.821)

22.85(0.900)

24.85(0.978)

26.85(1.057)

30.85(1.214)

34.85(1.372)

40.85(1.608)

44.85(1.766)

50.85(2.002)

68.85(2.711)

4.00 (0.157)

6,00(0,236)

8,00(0,315)

10,00(0,394)

12,00(0,472)

14,00(0,551)

18,00(0,709)

20,00(0,787)

22,00(0,866)

24,00(0,945)

28,00(1,102)

32,00(1,260)

38,00(1,496)

42,00(1,654)

48,00(1,890)

66,00(2,598)

8,00(0,315)

10,00(0,394)

14,00(0,551)

16,00(0,630)

18,00(0,709)

20,00(0,787)

24,00(0,945)

28,00(1,102)

34,00(1,339)

38,00(1,496)

44,00(1,732)

62,00(2,441)

Dimensional Information

Circuit Size

Part Number

2072-T061

2072-T081

2072-T101

2072-T121

2072-T141

2072-T161

2072-T201

2072-T221

2072-T241

2072-T261

2072-T301

2072-T341

2072-T401

2072-T441

2072-T501

2072-T681

T = Contact Plating



T =

Tin plated.

T =

Gold flash over 50µ” nickel.

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

2.4

6.3

2.4

4.5

9.2

2.0

6.4

3.9

4.7

2.0

0.81±0.05

0.5*0.5

2.0

RECOMMENDED HOLE PATTERN
