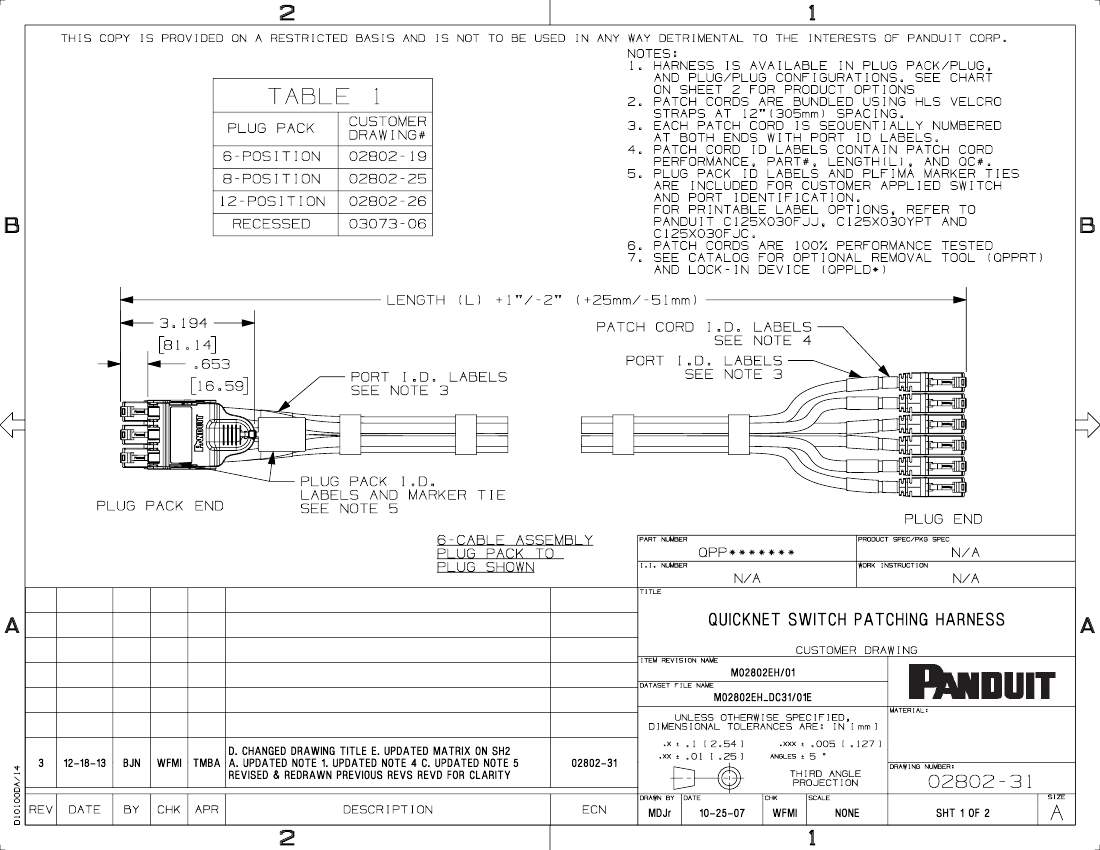

NOTES:
1. HARNESS IS AVAILABLE IN PLUG PACK/PLUG,
AND PLUG/PLUG CONFIGURATIONS. SEE CHART
ON SHEET 2 FOR PRODUCT OPTIONS
2. PATCH CORDS ARE BUNDLED USING HLS VELCRO
STRAPS AT 12"(305mm) SPACING.
3. EACH PATCH CORD IS SEQUENTIALLY NUMBERED
AT BOTH ENDS WITH PORT ID LABELS.
4. PATCH CORD ID LABELS CONTAIN PATCH CORD
PERFORMANCE, PART#, LENGTH(L), AND QC#.
5. PLUG PACK ID LABELS AND PLFIMA MARKER TIES
ARE INCLUDED FOR CUSTOMER APPLIED SWITCH
AND PORT IDENTIFICATION.
FOR PRINTABLE LABEL OPTIONS, REFER TO
PANDUIT C125X030FJJ, C125X030YPT AND
C125X030FJC.
6. PATCH CORDS ARE 100% PERFORMANCE TESTED
7. SEE CATALOG FOR OPTIONAL REMOVAL TOOL (QPPRT)
AND LOCK-IN DEVICE (QPPLD*)
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
TABLE 1
PLUG PACK
6-POSITION
8-POSITION
12-POSITION
CUSTOMER
DRAWING#
02802-19
02802-25
02802-26
03073-06
B
RECESSED
B
LENGTH (L) +1"/-2" (+25mm/-51mm)
3.194
81.14
.653
16.59
PORT I.D. LABELS
SEE NOTE 3
PATCH CORD I.D. LABELS
SEE NOTE 4
PORT I.D. LABELS
SEE NOTE 3
PLUG PACK END
PLUG PACK I.D.
LABELS AND MARKER TIE
SEE NOTE 5
6-CABLE ASSEMBLY
PLUG PACK TO
PLUG SHOWN
PART NUMBER
PLUG END
PRODUCT SPEC/PKG SPEC
QPP*******
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
QUICKNET
SWITCH
PATCHING
HARNESS
CUSTOMER DRAWING
ITEM REVISION NAME
A
M02802EH/01
DATASET FILE NAME
M02802EH_DC31/01E
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
MATERIAL:
D.
CHANGED
DRAWING
TITLE E.
UPDATED
MATRIX
ON
SH2
D10100DA/14
.X
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
3
12-18-13
BJN
WFMI
TMBA
A.
UPDATED
NOTE
1.
UPDATED
NOTE
4 C.
UPDATED
NOTE
5
REVISED
&
REDRAWN
PREVIOUS
REVS
REVD
FOR
CLARITY
APR
DESCRIPTION
02802-31
.XX
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
02802-31
SIZE
REV
DATE
BY
CHK
ECN
MDJr
10-25-07
WFMI
NONE
SHT
1
OF
2
A
2
1
2
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

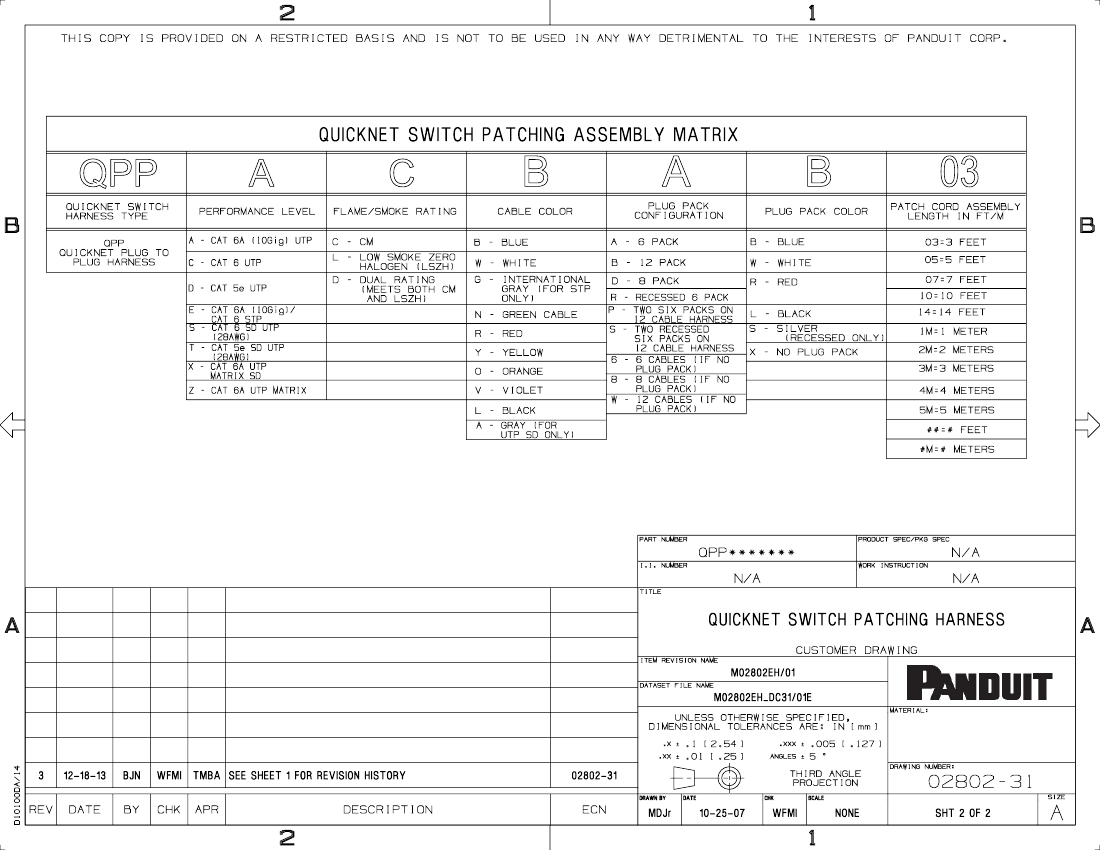

QUICKNET
SWITCH
PATCHING
ASSEMBLY MATRIX
B
QUICKNET SWITCH
HARNESS TYPE
QPP
QUICKNET PLUG TO
PLUG HARNESS
PERFORMANCE LEVEL
A - CAT 6A (10Gig) UTP
C - CAT 6 UTP
D - CAT 5e UTP
E - CAT 6A (10Gig)/
CAT 6 STP
S - CAT 6 SD UTP
(28AWG)
T - CAT 5e SD UTP
(28AWG)
X - CAT 6A UTP
MATRIX SD
Z - CAT 6A UTP MATRIX
FLAME/SMOKE RATING
CABLE COLOR
PLUG PACK
CONFIGURATION
A - 6 PACK
B - 12 PACK
D - 8 PACK
R - RECESSED 6 PACK
P - TWO SIX PACKS ON
12 CABLE HARNESS
S - TWO RECESSED
SIX PACKS ON
12 CABLE HARNESS
6 - 6 CABLES (IF NO
PLUG PACK)
8 - 8 CABLES (IF NO
PLUG PACK)
W
- 12 CABLES (IF NO
PLUG PACK)
PLUG PACK COLOR
PATCH CORD ASSEMBLY
LENGTH IN FT/M
03=3 FEET
05=5 FEET
07=7 FEET
10=10 FEET
B
C - CM
L - LOW SMOKE ZERO
HALOGEN (LSZH)
D - DUAL RATING
(MEETS BOTH CM
AND LSZH)
B - BLUE
W
- WHITE
B - BLUE
W
- WHITE
G - INTERNATIONAL
GRAY (FOR STP
ONLY)
N - GREEN CABLE
R - RED
Y - YELLOW
O - ORANGE
V - VIOLET
L - BLACK
A - GRAY (FOR
UTP SD ONLY)
R - RED
L - BLACK
S - SILVER
(RECESSED ONLY)
X - NO PLUG PACK
14=14 FEET
1M=1 METER
2M=2 METERS
3M=3 METERS
4M=4 METERS
5M=5 METERS
##=# FEET
#M=# METERS
PART NUMBER
PRODUCT SPEC/PKG SPEC
QPP*******
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
QUICKNET
SWITCH
PATCHING
HARNESS
CUSTOMER DRAWING
ITEM REVISION NAME
A
M02802EH/01
DATASET FILE NAME
M02802EH_DC31/01E
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
MATERIAL:
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
D10100DA/14
3
REV
12-18-13
DATE
BJN
WFMI
TMBA
SEE
SHEET
1
FOR
REVISION
HISTORY
APR
DESCRIPTION
02802-31
DRAWN
BY
THIRD ANGLE
PROJECTION
DATE
CHK
02802-31
SIZE
SCALE
BY
CHK
ECN
MDJr
10-25-07
WFMI
NONE
SHT
2
OF
2
A
2
1
