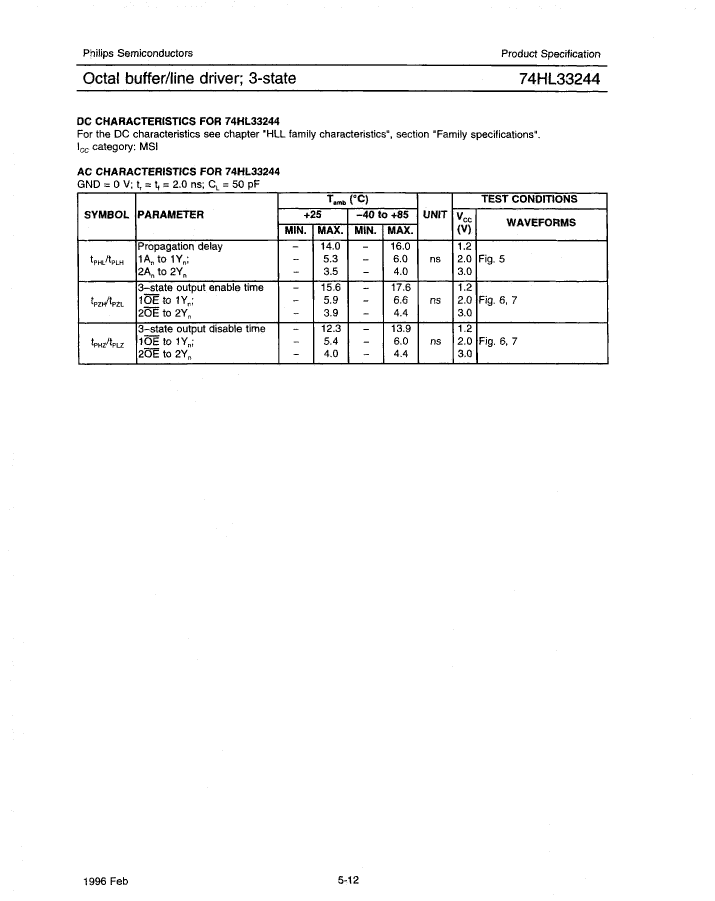

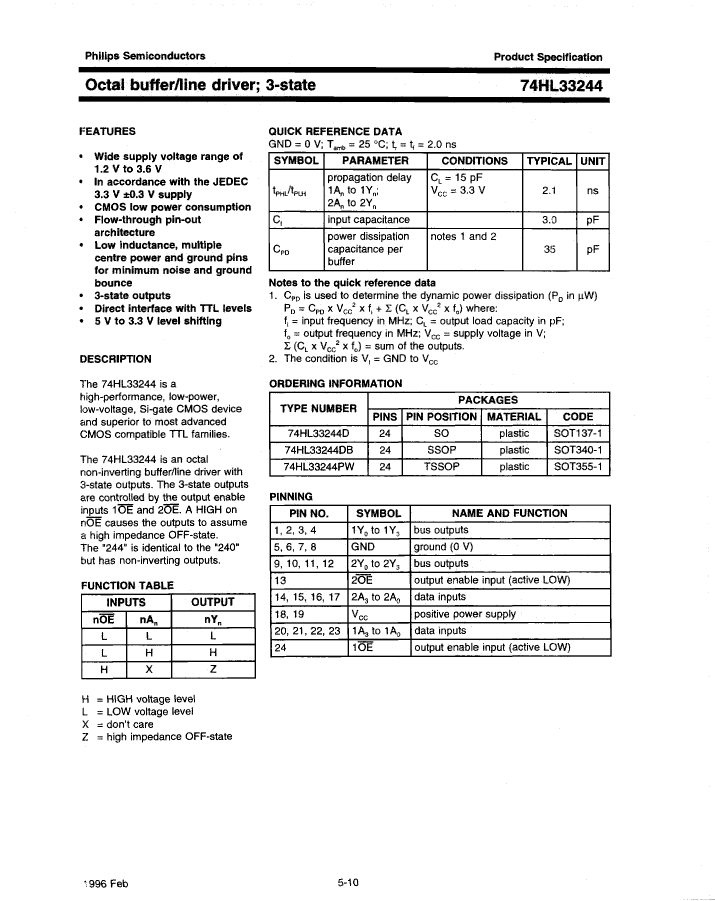

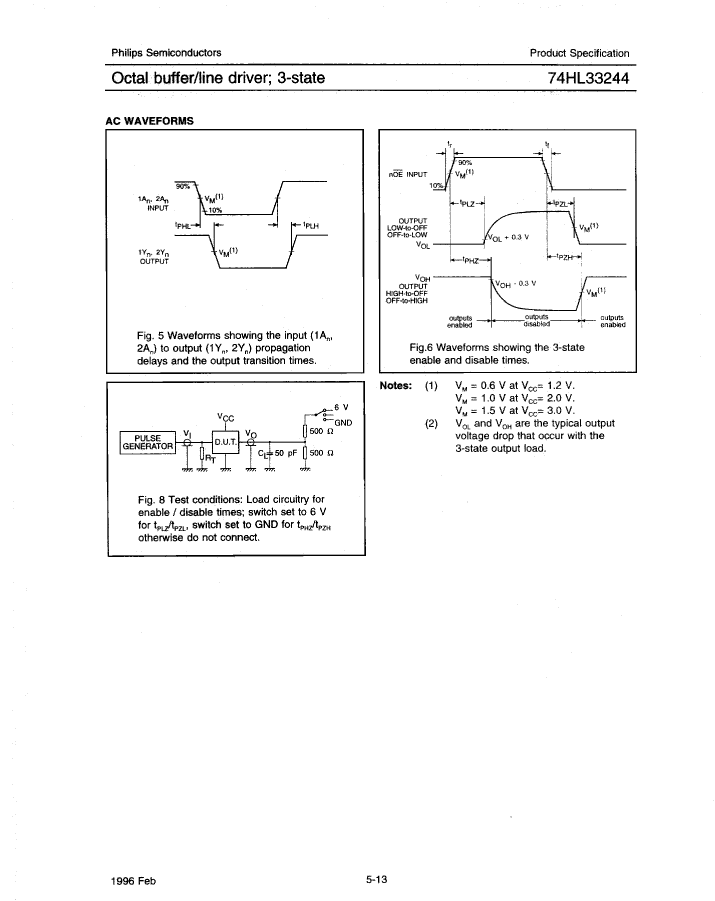

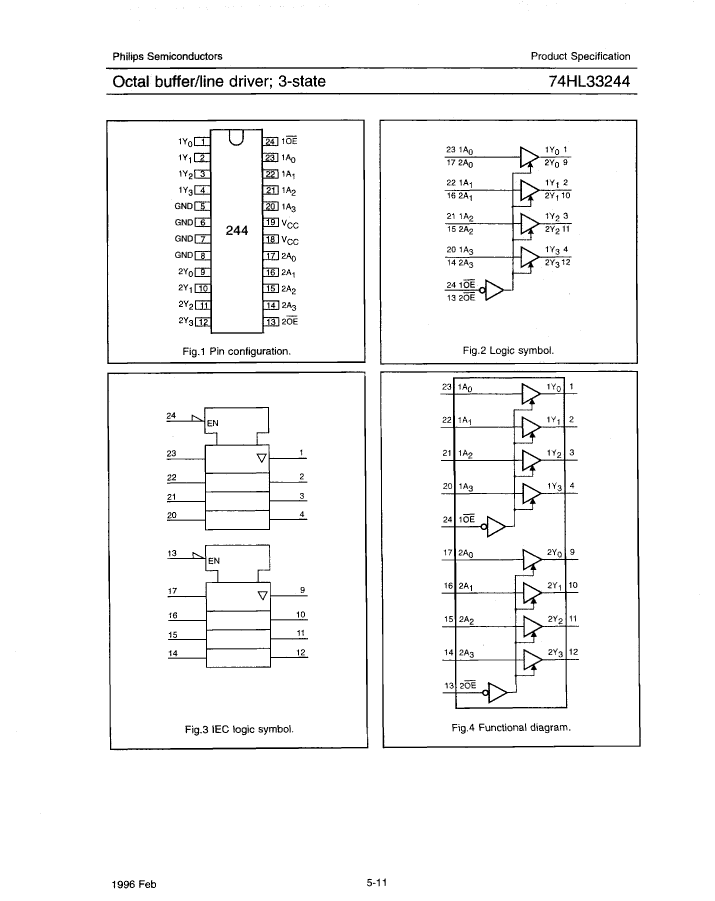

74HL33244PW: DescriptionIC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver; Categorylogic logic; File Size103KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HL33244PW Overview

IC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver

74HL33244PW Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	TSSOP,
Reach Compliance Code	unknown
Other features	WITH MULTIPLE CENTRE VCC AND GND PINS
series	HL
JESD-30 code	R-PDSO-G24
length	7.8 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	4 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74HL33244PW Related Products

	74HL33244PW	74HL33244DB-T	74HL33244D-T	74HL33244D	74HL33244DB	74HL33244PW-T
Description	IC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver	IC HL SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO24, Bus Driver/Transceiver
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	TSSOP,	SSOP,	SOP,	SOP,	SSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS	WITH MULTIPLE CENTRE VCC AND GND PINS
series	HL	HL	HL	HL	HL	HL
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
length	7.8 mm	8.2 mm	15.4 mm	15.4 mm	8.2 mm	7.8 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SOP	SOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	4 ns	4 ns	4 ns	4 ns	4 ns	4 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	2 mm	2.65 mm	2.65 mm	2 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	5.3 mm	7.5 mm	7.5 mm	5.3 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1
