LBS7045-330MT

Description
General Purpose Inductor, 33uH, 20%, 1 Element, SMD, 2828, CHIP, 2727
CategoryPassive components    inductor
File Size146KB,3 Pages
ManufacturerFenghua (HK) Electronics Ltd.
Download Datasheet Parametric View All

LBS7045-330MT Overview

General Purpose Inductor, 33uH, 20%, 1 Element, SMD, 2828, CHIP, 2727

LBS7045-330MT Parametric

Parameter NameAttribute value
MakerFenghua (HK) Electronics Ltd.
package instruction2828
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes2828
structureMagnetic Shielded
DC Resistance0.098 Ω
Nominal inductance(L)33 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Package height4.5 mm
Package length7 mm
Package formSMT
Package width7 mm
method of packingTR
Maximum rated current0.82 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.001 MHz
Tolerance20%

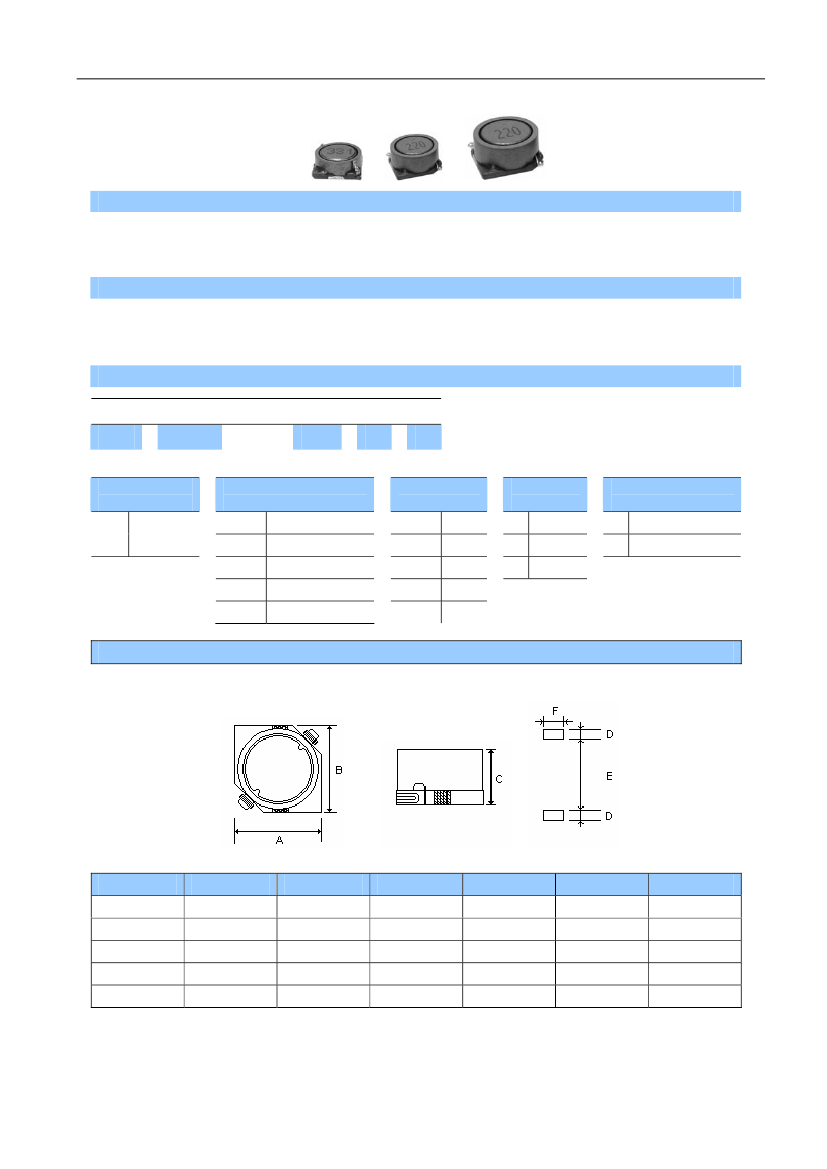

广东肇庆英达电感器件有限公司
GUANGDONG ZHAOQING YINGDA INDUCTOR CO.,LTD
表面贴装元件
SMD COMPONENTS
LBS
系列功率电感
LBS Series SMD Power Inductors
特征
FEATURES
·
大电流
·屏½结构
·适合于表面贴装
· High saturation current
· Magnetic shielded
· SMT type
应用
APPLICATIONS
·移动通信
·笔记本电脑
·DC/DC
½换
· Portable communication equipment
· Notebook Computer
· DC/DC converters
产品规格型号表示方法
ORDERING CODE
LBS
产品代号
Code
LBS
LBS
系列
功率电感
6028
150
M
T
误差
Tolerance
M
N
±20%
±30%
包装方式
Packaging Style
T
B
Tape&Reel
Bulk
规格尺寸
Dimensions
(L×W×T) (mm)
6028
7030
7045
10145
12575
6.0×6.0×2.8
7.0×7.0×3.0
7.0×7.0×4.5
10.0×10.0×4.5
12.5×12.5×7.5
电感量(µH)
Inductance
1R0
100
101
1.0
10
100
外½尺寸
Dimensions
单½(Unit):mm
型号
Part
6028
7030
7045
10145
12575
A
6.0±0.2
7.0±0.2
7.0±0.2
10.1±0.3
12.5±0.3
B
6.0±0.2
7.0±0.2
7.0±0.2
10.1±0.3
12.5±0.3
C
2.8±0.2
3.0±0.2
4.5±0.3
4.5±0.3
7.5±0.3
D
1.5±0.2
1.5±0.2
1.5±0.2
2.5±0.2
2.5±0.2
E
4.0±0.2
4.9±0.2
4.9±0.2
5.6±0.2
8.6±0.2
F
2.2±0.2
2.2±0.2
2.2±0.2
3.2±0.2
3.2±0.2
