B40HH10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B40HH10

B40HH10: DescriptionRectifier Diode, 1 Phase, 2 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-4; CategoryDiscrete semiconductor diode; File Size180KB，5 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

B40HH10 Overview

Rectifier Diode, 1 Phase, 2 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-4

B40HH10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
Parts packaging code	MODULE
package instruction	R-PUFM-X4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
application	POWER
Shell connection	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.31 V
JESD-30 code	R-PUFM-X4
JESD-609 code	e0
Maximum non-repetitive peak forward current	685 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	40 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	50 µA
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

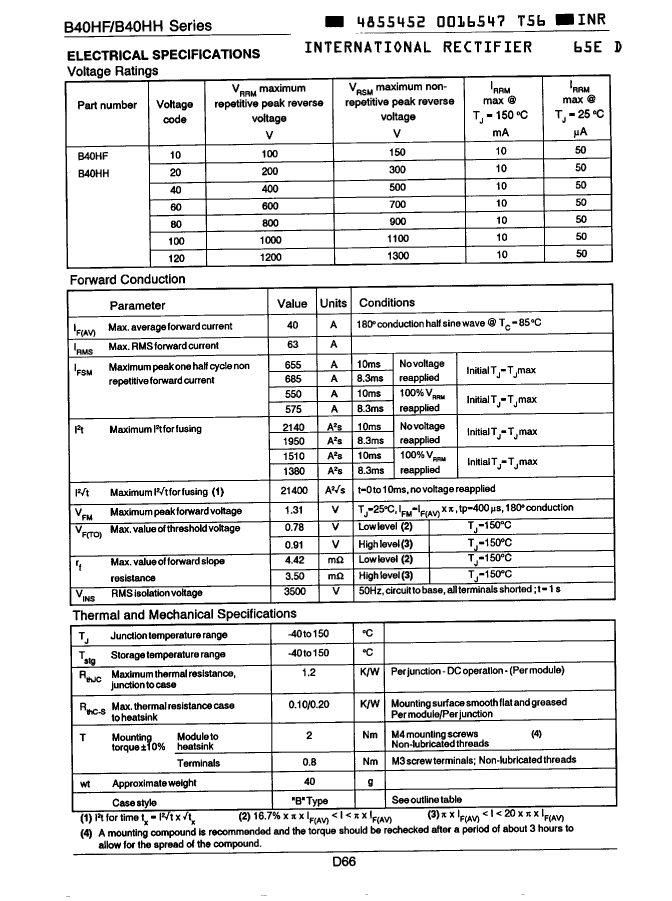

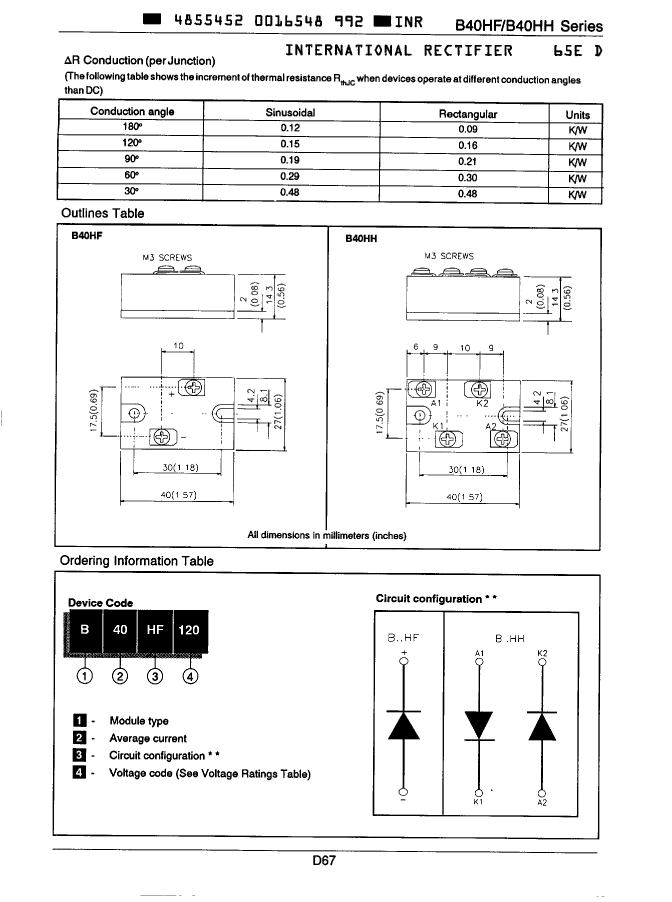

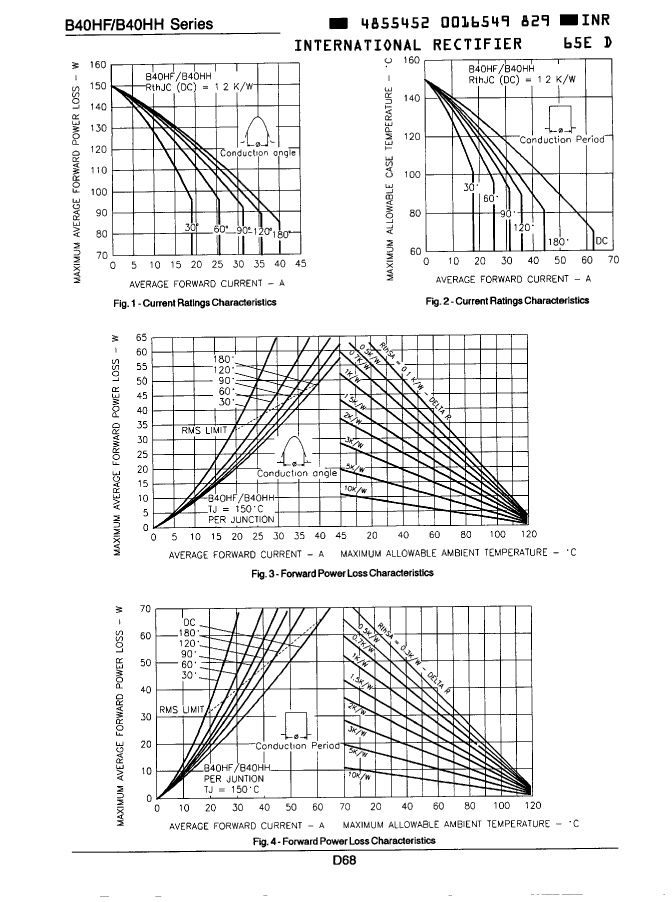

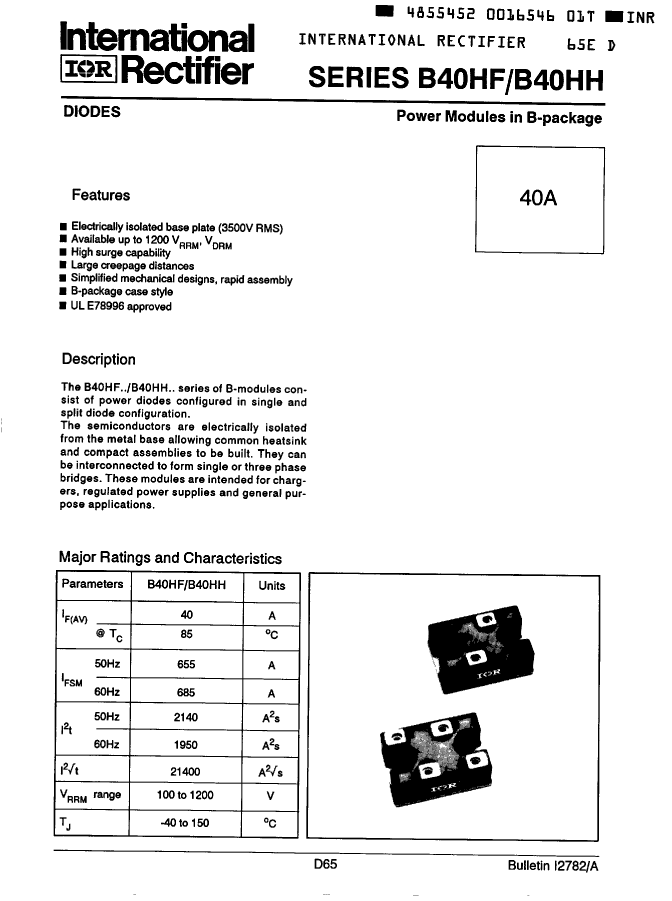

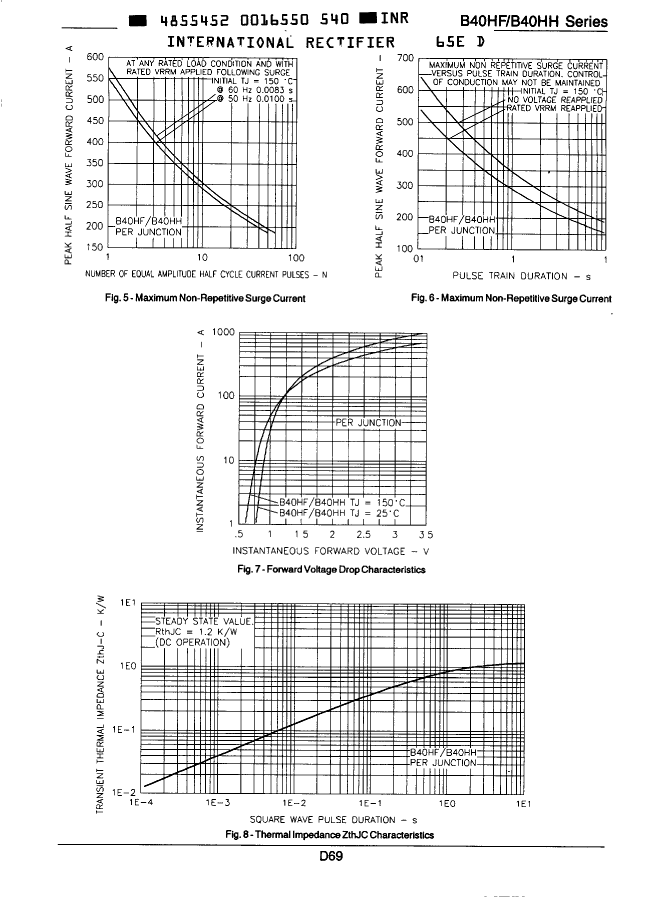

Preview

Download Datasheet

View All

B40HH10 Related Products

	B40HH10	B40HF80	B40HF20	B40HH40	B40HF10	B40HH80	B40HH20	B40HH60	B40HF60	B40HF40
Description	Rectifier Diode, 1 Phase, 2 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 1 Element, 40A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 1 Element, 40A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 40A, 800V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 2 Element, 40A, 600V V(RRM), Silicon, POWER MODULE-4	Rectifier Diode, 1 Phase, 1 Element, 40A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 400V V(RRM), Silicon,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	R-PUFM-X4	R-PUFM-X2	R-PUFM-X2	R-PUFM-X4	R-PUFM-X2	R-PUFM-X4	R-PUFM-X4	R-PUFM-X4	R-PUFM-X2	R-PUFM-X2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
application	POWER	POWER	POWER	POWER	POWER	POWER	POWER	POWER	POWER	POWER
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V
JESD-30 code	R-PUFM-X4	R-PUFM-X2	R-PUFM-X2	R-PUFM-X4	R-PUFM-X2	R-PUFM-X4	R-PUFM-X4	R-PUFM-X4	R-PUFM-X2	R-PUFM-X2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	685 A	575 A	575 A	685 A	575 A	685 A	685 A	685 A	575 A	575 A
Number of components	2	1	1	2	1	2	2	2	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	2	2	4	2	4	4	4	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	40 A	40 A	40 A	40 A	40 A	40 A	40 A	40 A	40 A	40 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	800 V	200 V	400 V	100 V	800 V	200 V	600 V	600 V	400 V
Maximum reverse current	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	-	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
