PB1005AC-HE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PB1005AC-HE

PB1005AC-HE: DescriptionAC-DC Regulated Power Supply Module, 5 Output, Hybrid, MODULE-22; CategoryPower/power management The power supply circuit; File Size398KB，4 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet Parametric Compare View All

PB1005AC-HE Overview

AC-DC Regulated Power Supply Module, 5 Output, Hybrid, MODULE-22

PB1005AC-HE Parametric

Parameter Name	Attribute value
Maker	VICOR
Parts packaging code	MODULE
package instruction	,
Contacts	22
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	180 V
Nominal input voltage	5 V
JESD-30 code	R-XXMA-X22
length	10.5 mm
Maximum load regulation	0.2%
Number of functions	1
Output times	5
Number of terminals	22
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output voltage	52 V
Minimum output voltage	1.8 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Fine-tuning/adjustable output	YES
width	7 mm

Preview

Download Datasheet

View All

Data Sheet

Power

Bank

PB1005AC(-F)(-G)(-H)(-HE)

AC/DC Power Supply

Up to 5 Outputs

1000W

Low-Profile 1.68"

All specifications are at nominal input, full load, 25°C, all models, unless otherwise noted.

Input

Model

Nominal Input Voltage

Input Voltage Range

AC Input Frequency

Voltage Sag Immunity to SEMI F47-0200

Hold-Up Time

(Max Load, Nominal Line, Typical)

Input Fuse (Internal)

Inrush Current (264 VAC peak line, cold start.)

Power Factor (typical)

-F

115VAC

95-132VAC

47-440Hz

20 ms

20 A

30Apk,max

-G

115/230 VAC

95-132VAC or

180-264VAC

47-440Hz

20 ms

15 A

30Apk,max

-H

230VAC/300VDC

180-264VAC or

250-375VDC

47-440Hz

20ms

20A

200Apk,typical

0.60

-HE

230VAC

180-264VAC

47-440Hz

Yes

30ms

20A

200Apk,typical

Output

Output #

Maximum Output Current (Connector Limit)

Output Voltage (Factory configurable)

Output Voltage Setpoint (50% load)

Load Regulation, No load to full load (max.)

Line Regulation, Low Line to High Line (max.)

Maximum Output Power

Remote Sense

Output Ripple and Noise

Enable/inhibit function will affect this output

Trim range

80A

18A

40A

1.8 to 52V

±1.2%

±0.2%

±0.5%

±0.2%

±0.5%

500W

150W

Yes

See individual Vicor modules specifications.

Yes or No (Configurable for each output individually at the factory.)

10% to 110%

of module nominal Vo

N/A

Environmental

Operating Temperature Range

Storage Temperature Range

Relative Humidity

-20°C to 70°C

-40°C to 70°C

5% -95% non-condensing

Important (!): Does not apply to (-F) operating at 230VAC

Safety

Agency Approvals

Safety Standard Compliance

Isolation

cTUVus, CE

EN60950

Primary-to-Secondary

Primary-Earth

Secondary-Earth

3,000Vrms

1,500Vrms

250Vrms

Model -F will operate at 230VAC, but operation at 230VAC has not been evaluated for safety purposes.

Output voltage, current and power are limited to Vicor modules available.

Minimum load may be required to trim below 90%. Contact factory for details.

Vicor Custom Power - Northwest

(503)-652-6161

www.npi-inc.com

Document No. 6997 Rev E

Print Date: 2012-04-27

Page 1 of 4

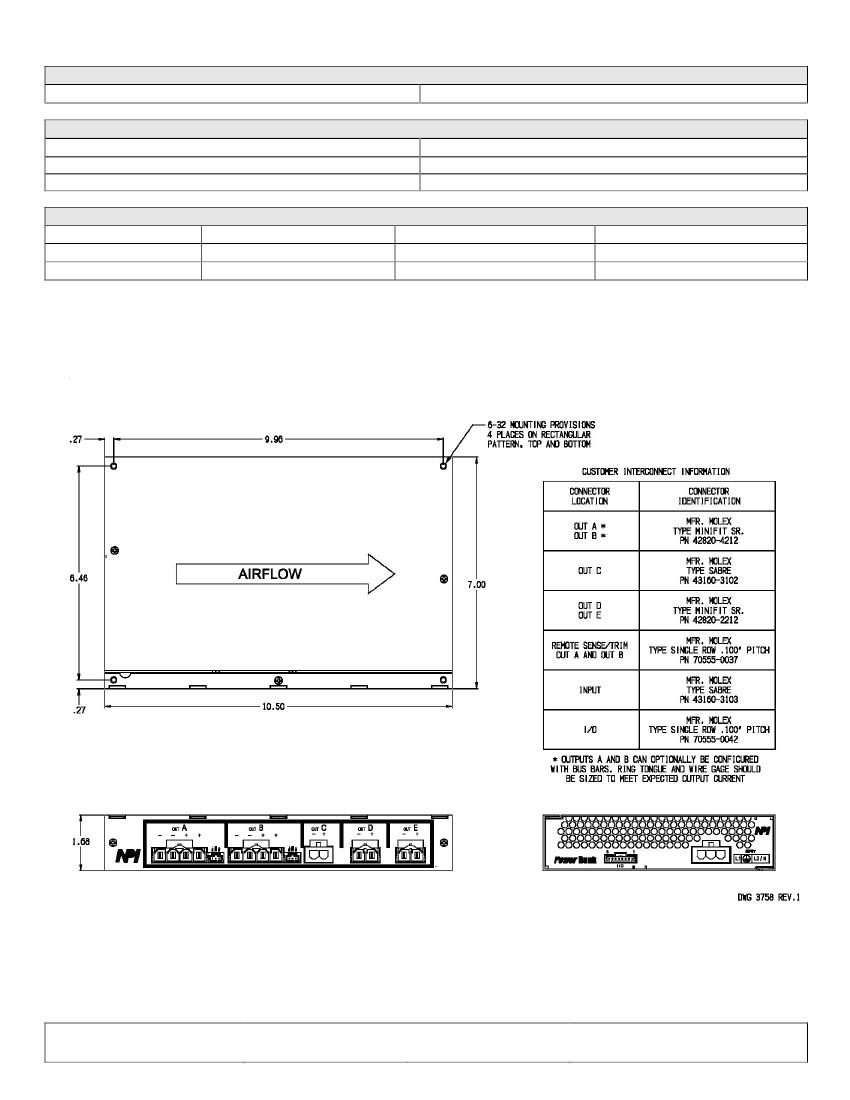

PB1005AC(-F)(-G)(-H)(-HE)

PB1005AC-HE Related Products

	PB1005AC-HE	PB1005AC-H	PB1005AC-G
Description	AC-DC Regulated Power Supply Module, 5 Output, Hybrid, MODULE-22	AC-DC Regulated Power Supply Module, 5 Output, Hybrid, MODULE-22	AC-DC Regulated Power Supply Module, 5 Output, Hybrid, MODULE-22
Maker	VICOR	VICOR	VICOR
Parts packaging code	MODULE	MODULE	MODULE
Contacts	22	22	22
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V	264 V	132 V
Minimum input voltage	180 V	180 V	95 V
Nominal input voltage	5 V	5 V	5 V
JESD-30 code	R-XXMA-X22	R-XXMA-X22	R-XXMA-X22
length	10.5 mm	10.5 mm	10.5 mm
Maximum load regulation	0.2%	0.2%	0.2%
Number of functions	1	1	1
Output times	5	5	5
Number of terminals	22	22	22
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Maximum output voltage	52 V	52 V	52 V
Minimum output voltage	1.8 V	1.8 V	1.8 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Fine-tuning/adjustable output	YES	YES	YES
width	7 mm	7 mm	7 mm
