DRA2TC datasheet, PDF - EEWORLD Datasheet

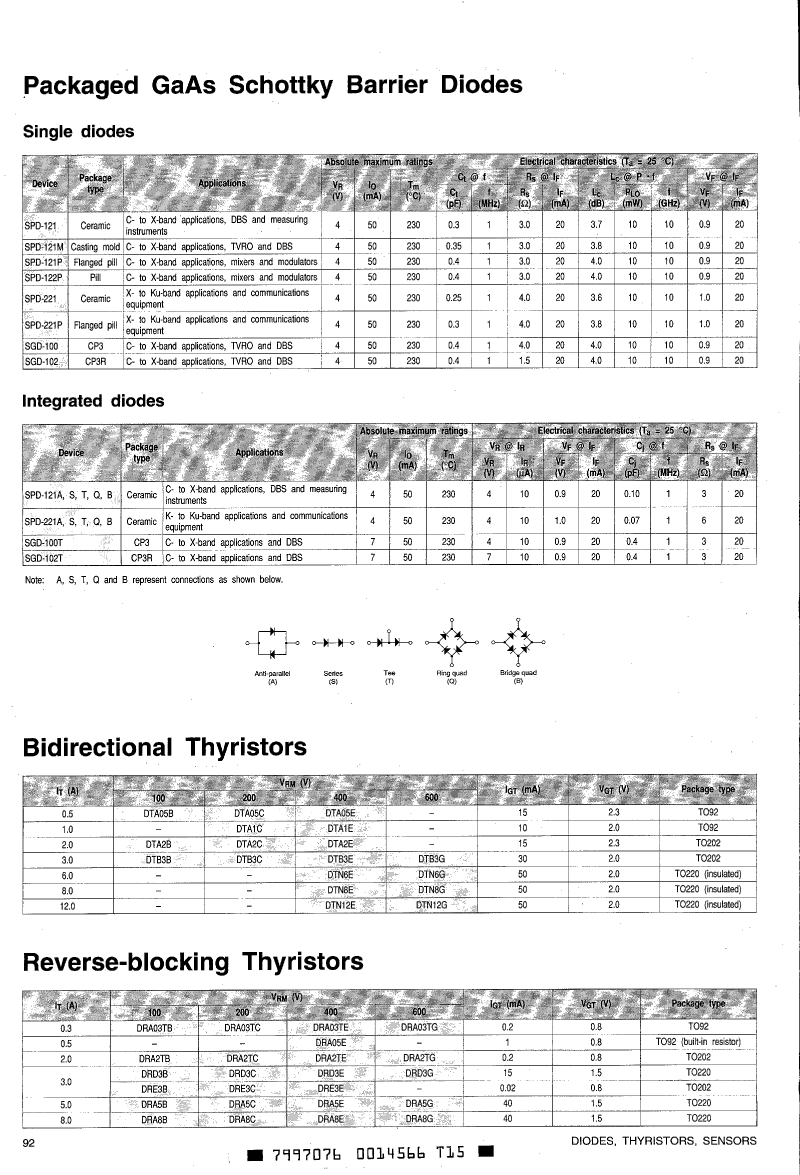

DRA2TC: DescriptionSILICON CONTROLLED RECTIFIER,200V V(DRM),2A I(T),TO-202; CategoryAnalog mixed-signal IC Trigger device; File Size189KB，1 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

DRA2TC Overview

SILICON CONTROLLED RECTIFIER,200V V(DRM),2A I(T),TO-202

Parameter Name	Attribute value
Maker	ON Semiconductor
package instruction	,
Reach Compliance Code	compliant
Critical rise rate of minimum off-state voltage	15 V/us
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	3 mA
Maximum leakage current	0.2 mA
On-state non-repetitive peak current	20 A
Maximum on-state voltage	2 V
Maximum on-state current	2000 A
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	200 V
surface mount	NO
Trigger device type	SCR

	DRA2TC	DTA2B	SGD102T	DRA2TB	DTA05E	DTA2C	DTA05B
Description	SILICON CONTROLLED RECTIFIER,200V V(DRM),2A I(T),TO-202	TRIAC,100V V(DRM),2A I(T)RMS,TO-202	RECTIFIER DIODES,DOUBLER,SCHOTTKY,4V V(RRM),TO-236	SILICON CONTROLLED RECTIFIER,100V V(DRM),2A I(T),TO-202	TRIAC,400V V(DRM),500MA I(T)RMS,TO-92	TRIAC,200V V(DRM),2A I(T)RMS,TO-202	TRIAC,100V V(DRM),500MA I(T)RMS,TO-92
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
surface mount	NO	NO	YES	NO	NO	NO	NO
Maker	ON Semiconductor	-	-	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor
Maximum DC gate trigger current	0.2 mA	15 mA	-	0.2 mA	15 mA	15 mA	15 mA
Maximum DC gate trigger voltage	0.8 V	2.3 V	-	0.8 V	2.3 V	2.3 V	2.3 V
Maximum holding current	3 mA	25 mA	-	3 mA	25 mA	25 mA	25 mA
Maximum leakage current	0.2 mA	0.1 mA	-	0.2 mA	0.11 mA	0.1 mA	0.1 mA
Maximum on-state voltage	2 V	2.6 V	-	2 V	2 V	2.6 V	2 V
Maximum operating temperature	110 °C	110 °C	-	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-25 °C	-40 °C	-25 °C
Off-state repetitive peak voltage	200 V	100 V	-	100 V	400 V	200 V	100 V
Trigger device type	SCR	TRIAC	-	SCR	TRIAC	TRIAC	TRIAC
Maximum rms on-state current	-	2 A	-	-	0.5 A	2 A	0.5 A
