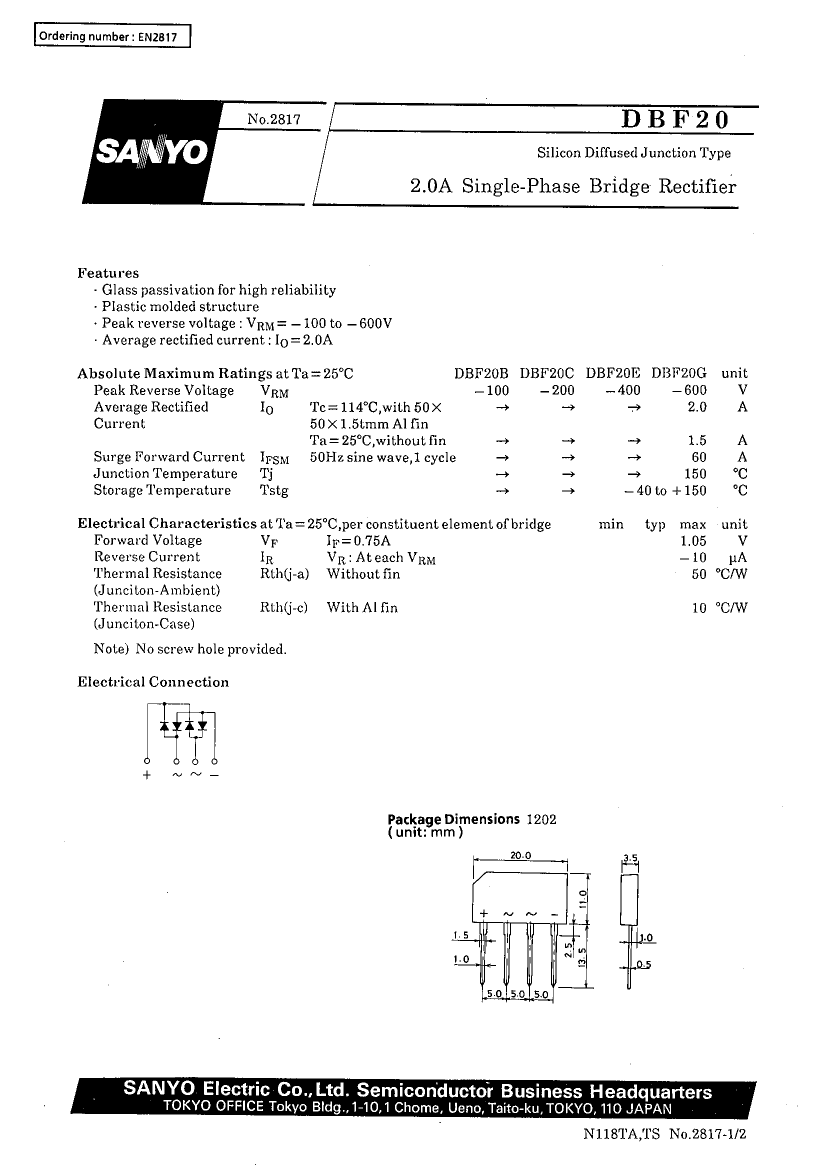

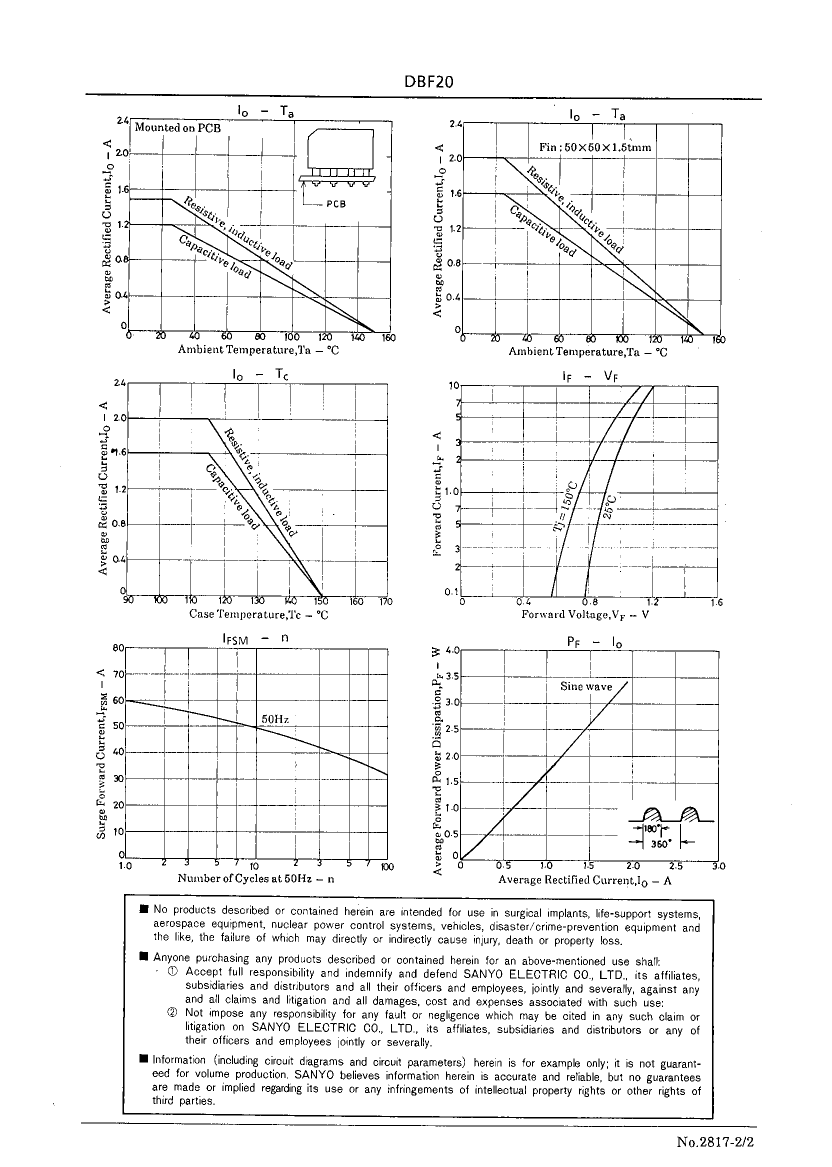

DBF20E datasheet, PDF - EEWORLD Datasheet

DBF20E: DescriptionBridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size59KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DBF20E Overview

Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	SANYO
package instruction	R-PSIP-T4
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSIP-T4
Maximum non-repetitive peak forward current	60 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	DBF20E	DBF20B
Description	Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2A, 100V V(RRM), Silicon,
Maker	SANYO	SANYO
package instruction	R-PSIP-T4	R-PSIP-T4
Reach Compliance Code	unknown	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V
JESD-30 code	R-PSIP-T4	R-PSIP-T4
Maximum non-repetitive peak forward current	60 A	60 A
Number of components	4	4
Phase	1	1
Number of terminals	4	4
Maximum operating temperature	150 °C	150 °C
Maximum output current	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	100 V
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
