Ordering number:EN651D
DBA100
Diffused Junction Silicon Diode
10.0A Single-Phase Bridge Rectifier
Features
· Plastic molded structure.
· Glass passivation for high reliability.
· Peak reverse voltage:V
RM
=200, 600V.
· Average rectified current:I
O
=10.0A.
Package Dimensions
unit:mm
1090
[DBA100]
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Peak Reverse Voltage
Average Recitified Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRM
IO
IFSM
Tj
Tstg
Conditions
DBA100C
200
→
3
DBA100G
600
3.7
10.0
200
150
–30 to +150
Unit
V
A
A
A
Ta=40˚C
Ta=40˚C, with 200×200×1.5mm AI fin
→
→
→
→
˚C
˚C
Electrical Characteristics
at Ta = 25˚C, per constituent element of bridge
Parameter
Forward Voltage
Reverse Current
Symbol
VF
IR
IF=5.0A
VR:At each VRM
Conditions
Ratings
min
typ
max
1.05
10
Unit
V
μ
A
Note:Mounting torque:0.49N·m max.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
52098HA (KT)/71096GI (KOTO)/N098TA, TS No.651-1/2

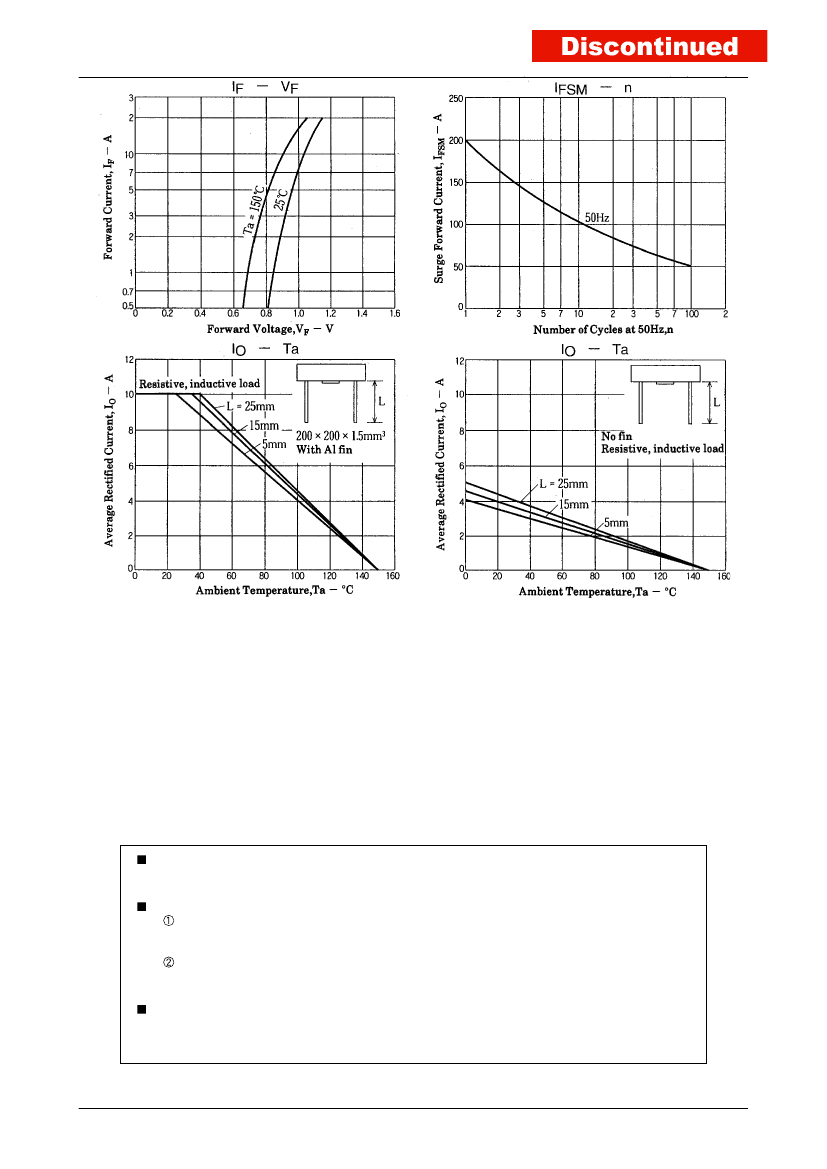

DBA100
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of May, 1998. Specifications and information herein are subject to
change without notice.
PS No.651-2/2
