P.F-330MT0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> P.F-330MT0

P.F-330MT0: DescriptionGeneral Purpose Inductor, 33uH, 20%, 1 Element, Nickel-zinc-Core, SMD,; CategoryPassive components inductor; File Size468KB，2 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

P.F-330MT0 Overview

General Purpose Inductor, 33uH, 20%, 1 Element, Nickel-zinc-Core, SMD,

P.F-330MT0 Parametric

Parameter Name	Attribute value
Maker	NEC TOKIN ( KEMET Corporation )
Reach Compliance Code	unknown
ECCN code	EAR99
core material	NICKEL-ZINC
DC Resistance	0.16 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Maximum rated current	1.8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%

Preview

Download Datasheet

View All

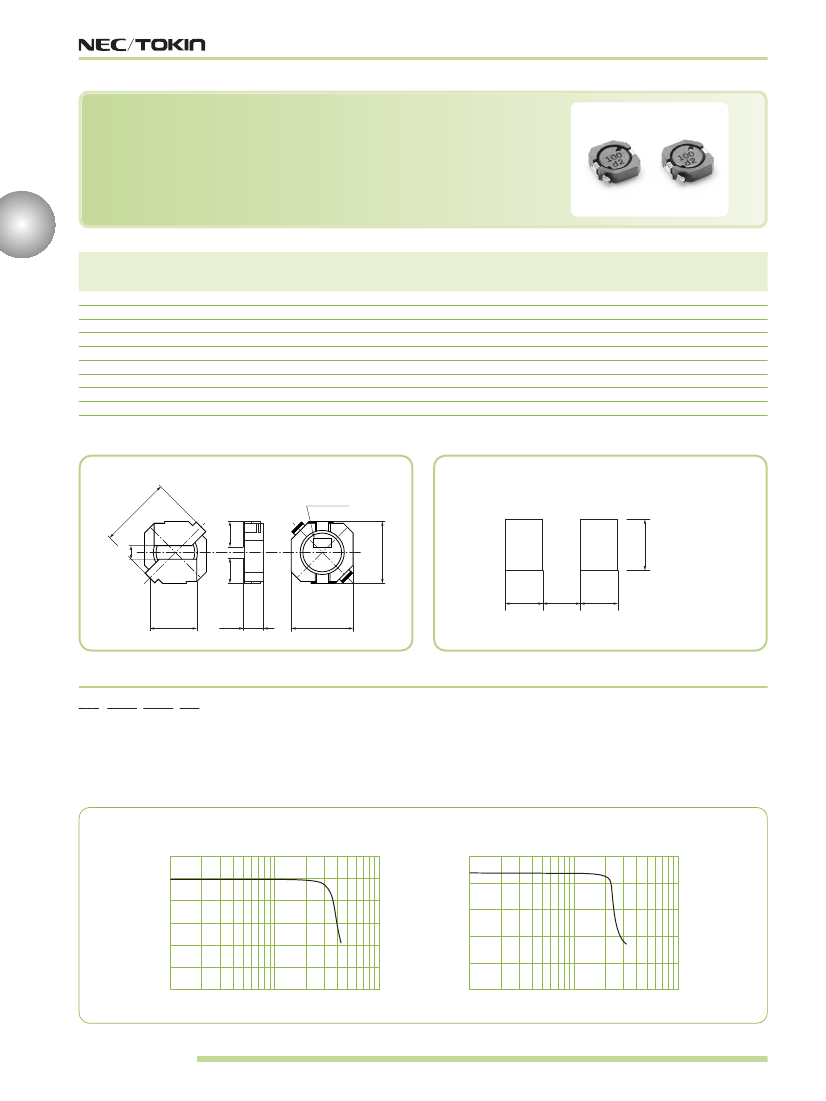

SMD-Type Inductors and Choke Coils

Leadless Power Inductors

P • F-MT0 Series

SMD-Type Inductors and Choke Coils

• Tape and Reel Dimensions (see page 118)

• Precautions (see page 124)

Inductance

DC resistance

Rated current

Model

(µH)

(m )

(A)

P • F-100MT0

P • F-220MT0

P • F-330MT0

P • F-390MT0

P • F-470MT0

P • F-560MT0

P • F-680MT0

P • F-820MT0

P • F-101MT0

10±20%

22±20%

33±20%

39±20%

47±20%

56±20%

68±20%

82±20%

100±20%

110

160

180

220

260

320

380

450

• Storage temperature range: –25 to +85˚C

3.00

2.00

1.80

1.60

1.50

1.40

1.20

1.15

1.10

• Operating temperature range: –25 to +80˚C (Without self-temperature rise)

Shape and Dimensions

Recommended Land Pattern

Inductance

4±0.3

10.5±0.5

4±0.3

a : 4.0

b : 4.5

c : 5.0 ~ 9.0

2±0.3

8±0.3

3.5

max.

10.5±0.3

[mm]

Numbering System

P½F -

Series

Inductance

Dimensions

NEC TOKIN control number

DC-Superposed Characteristics

P • F-100MT0

P • F-220MT0

Inductance ( H)

0.1

Inductance ( H)

0.1

Idc (A)

EMC GENERAL VOL.01

P.F-330MT0 Related Products

	P.F-330MT0	P.F-820MT0	P.F-680MT0	P.F-470MT0	P.F-100MT0	P.F-101MT0
Description	General Purpose Inductor, 33uH, 20%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 82uH, 20%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 68uH, 20%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 47uH, 20%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 10uH, 20%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 100uH, 20%, 1 Element, Nickel-zinc-Core, SMD,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC
DC Resistance	0.16 Ω	0.38 Ω	0.32 Ω	0.22 Ω	0.06 Ω	0.45 Ω
Nominal inductance(L)	33 µH	82 µH	68 µH	47 µH	10 µH	100 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum rated current	1.8 A	1.15 A	1.2 A	1.5 A	3 A	1.1 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	20%	20%	20%	20%	20%	20%
Maker	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )	-	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )	NEC TOKIN ( KEMET Corporation )
