95231-114 datasheet, PDF - EEWORLD Datasheet

95231-114: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator,; CategoryThe connector The connector; File Size114KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

95231-114 Overview

Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator,

Parameter Name	Attribute value
Objectid	1548730171
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.2 inch
subject depth	0.335 inch
body length	1.4 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLUE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.119 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0

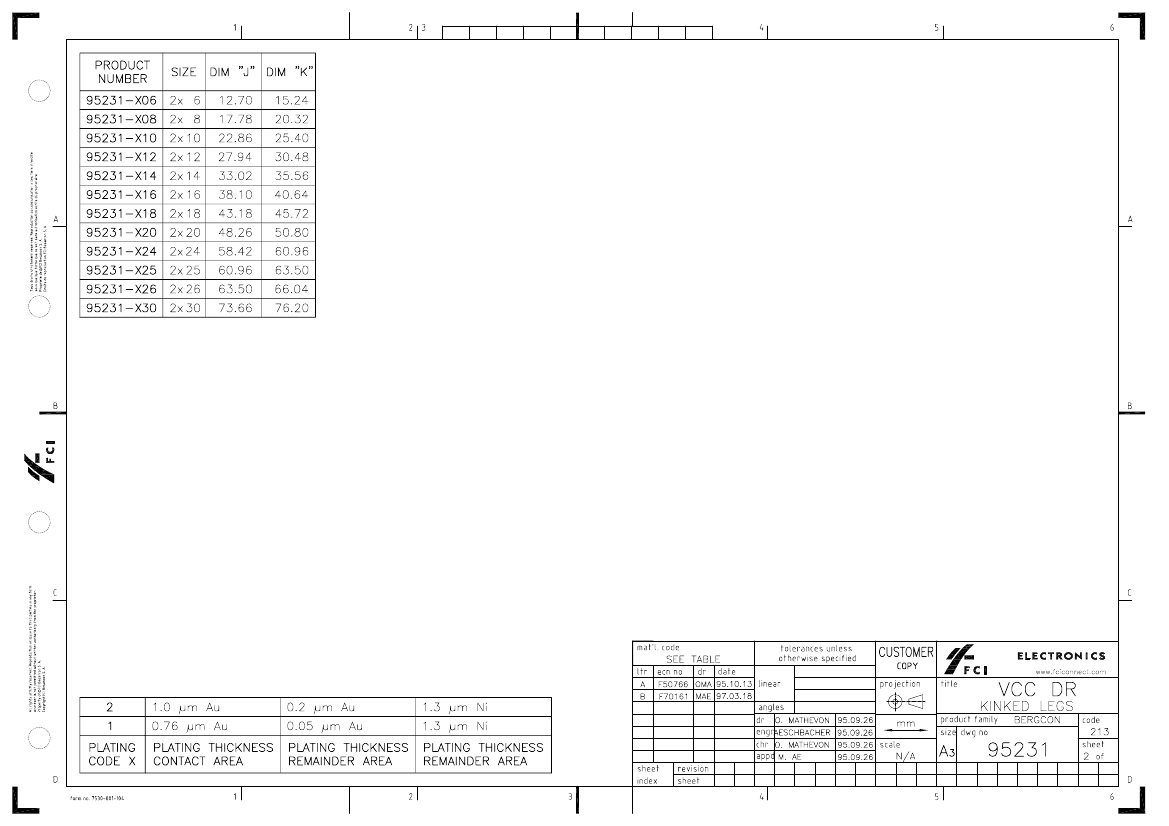

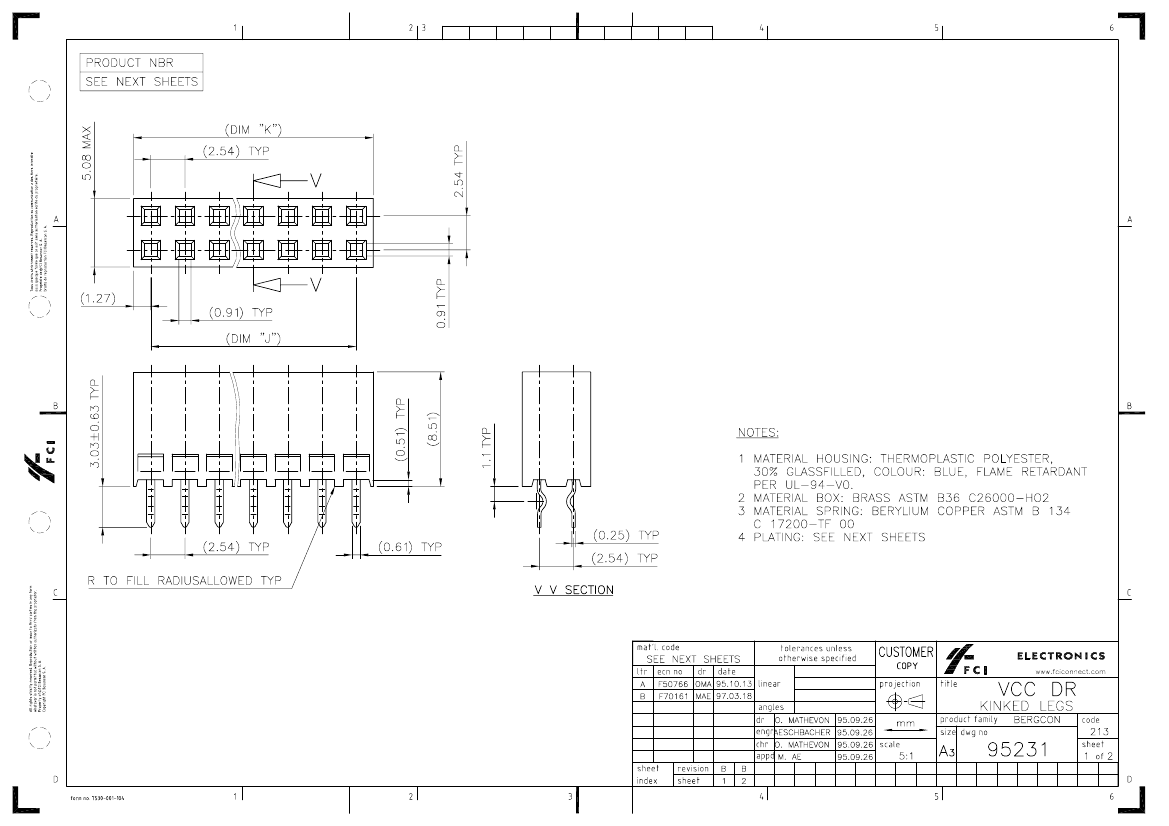

PDM: Rev:B

STATUS:

Released

Printed: Jul 05, 2002
