2N1648 datasheet, PDF - EEWORLD Datasheet

2N1648: DescriptionPower Bipolar Transistor, 3A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-59, Metal, 3 Pin,; CategoryDiscrete semiconductor The transistor; File Size54KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

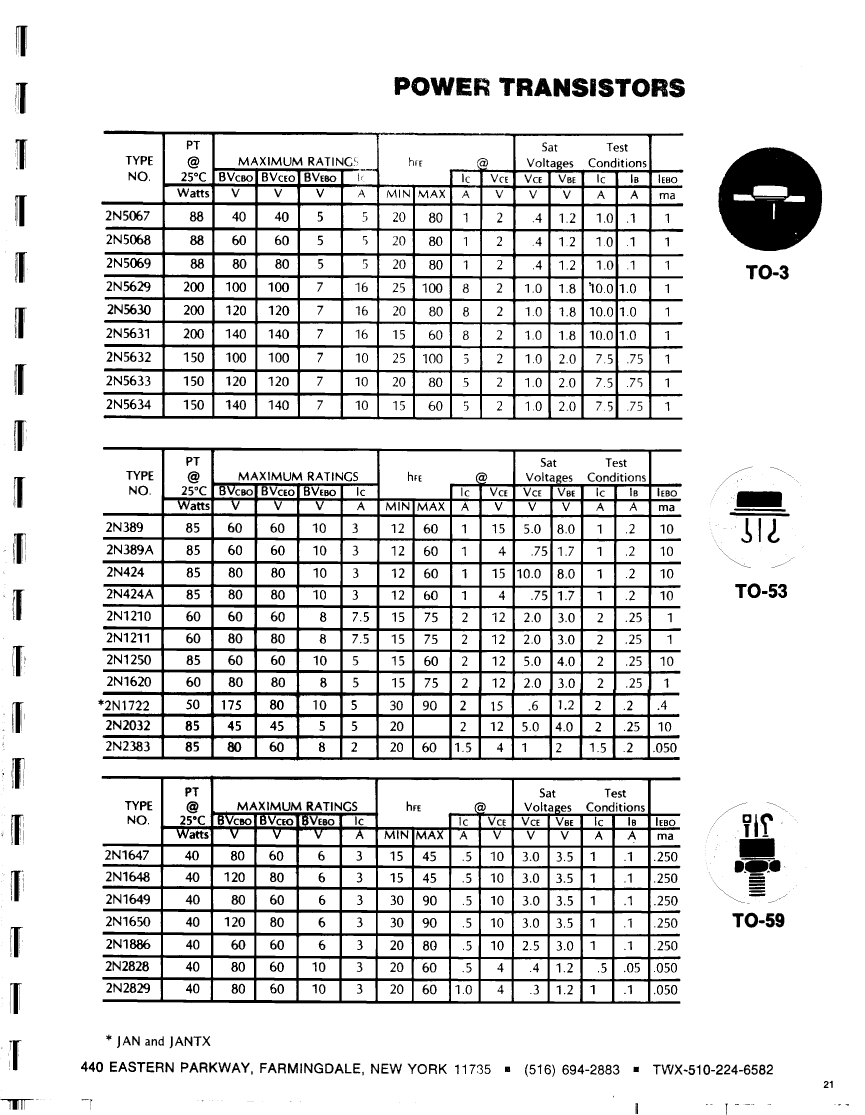

Download Datasheet Parametric View All

2N1648 Overview

Power Bipolar Transistor, 3A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-59, Metal, 3 Pin,

Parameter Name	Attribute value
package instruction	POST/STUD MOUNT, O-MUPM-D3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JEDEC-95 code	TO-59
JESD-30 code	O-MUPM-D3
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	40 W
Maximum power dissipation(Abs)	40 W
Certification status	Not Qualified
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Transistor component materials	SILICON
Nominal transition frequency (fT)	2 MHz
VCEsat-Max	3 V
Base Number Matches	1
