2N2539 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N2539

2N2539: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 1-Element, NPN, Silicon, TO-18, TO-18, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size82KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

2N2539 Overview

Small Signal Bipolar Transistor, 0.8A I(C), 1-Element, NPN, Silicon, TO-18, TO-18, 3 PIN

2N2539 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	unknow
Maximum collector current (IC)	0.8 A
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.5 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Base Number Matches	1

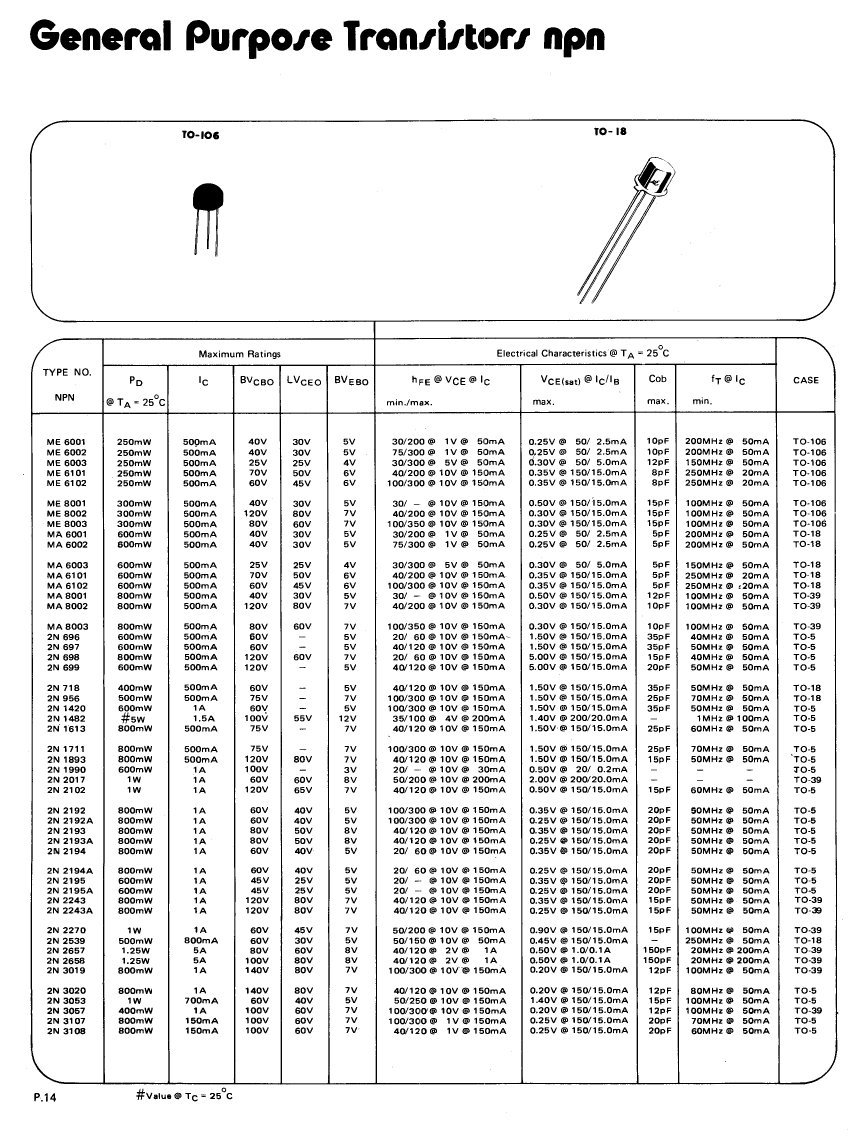

Preview

Download Datasheet

View All

2N2539 Related Products

	2N2539	2N2243A	2N2243	2N696	2N2195	MA8002
Description	Small Signal Bipolar Transistor, 0.8A I(C), 1-Element, NPN, Silicon, TO-18, TO-18, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 1-Element, NPN, Silicon, TO-5, TO-5, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-39
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Maximum collector current (IC)	0.8 A	1 A	1 A	0.5 A	1 A	0.5 A
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	40	40	20	20	40
JEDEC-95 code	TO-18	TO-39	TO-39	TO-5	TO-39	TO-39
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C	100 °C	200 °C	175 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.5 W	0.8 W	0.3 W	0.6 W	0.6 W	0.8 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	50 MHz	50 MHz	40 MHz	50 MHz	100 MHz
Parts packaging code	BCY	TO-39	TO-39	TO-5	TO-39	-
Contacts	3	3	3	3	3	-
Base Number Matches	1	1	1	1	1	-
ECCN code	-	EAR99	EAR99	-	EAR99	EAR99
Collector-emitter maximum voltage	-	80 V	80 V	-	25 V	80 V
transistor applications	-	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING
