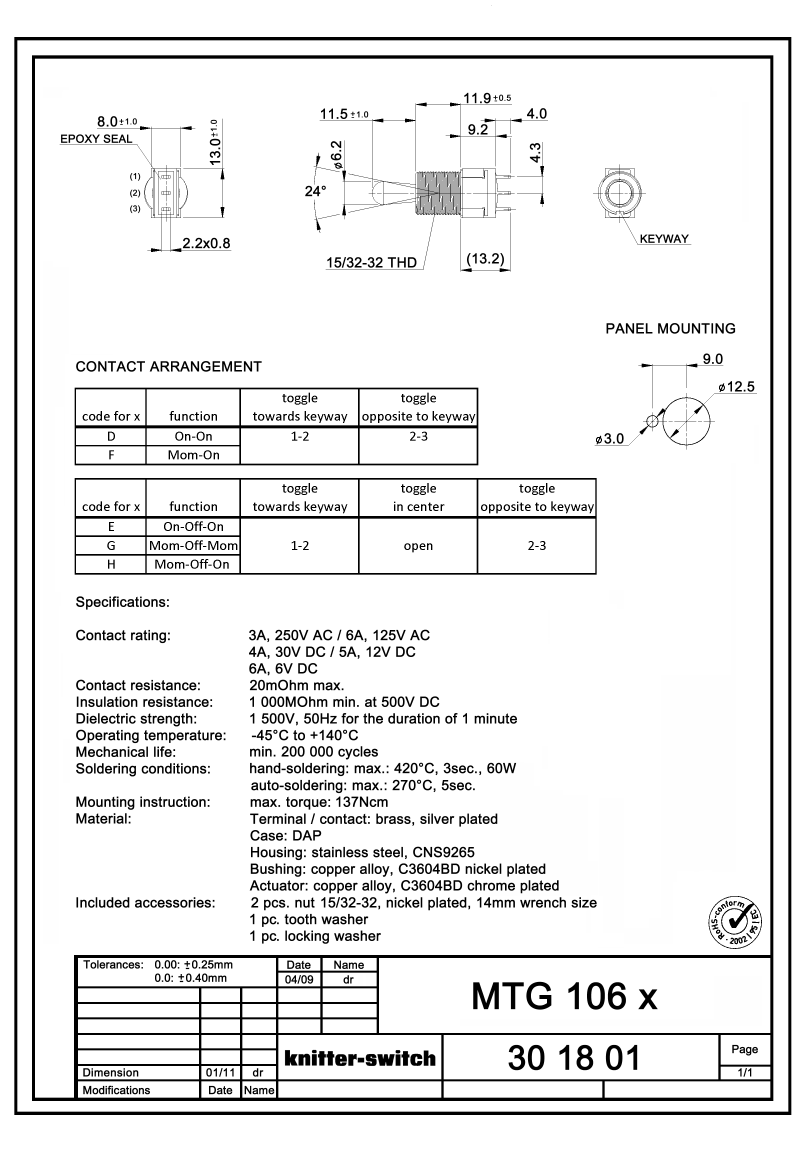

MTG106H: DescriptionToggle Switch, SPDT, (on)-off-on, Momentary, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size190KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MTG106H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTG106H	-	-	View	Buy Now

MTG106H Overview

Toggle Switch, SPDT, (on)-off-on, Momentary, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight

MTG106H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Knitter-switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	24 deg
Executor completed	CHROME
Actuator length	0.453 inch
Actuator material	COPPER ALLOY
Actuator type	TOGGLE
body width	8.001 mm
body height	9.1948 mm
Body length or diameter	13.0048 mm
Nozzle length	0.469 inch
Casing type	15/32-32
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@30VDC
Contact function	(ON)-OFF-ON
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VAC V
End contact material	BRASS
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	MTG
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	140 °C
Minimum operating temperature	-45 °C
seal	EPOXY
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal length	0.157 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

MTG106H Related Products

	MTG106H	MTG106E	MTG106D	MTG106G
Description	Toggle Switch, SPDT, (on)-off-on, Momentary, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, SPDT, On-off-on, Horizontal, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, SPDT, On-on, Horizontal, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, SPDT, (on)-off-(on), Momentary, 4A, 30VDC, Solder Terminal, Toggle Actuator, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant	compliant
Actuator angle	24 deg	24 deg	24 deg	24 deg
Executor completed	CHROME	CHROME	CHROME	CHROME
Actuator length	0.453 inch	0.453 inch	0.453 inch	0.453 inch
Actuator material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Actuator type	TOGGLE	TOGGLE	TOGGLE	TOGGLE
body width	8.001 mm	8.001 mm	8.001 mm	8.001 mm
body height	9.1948 mm	9.1948 mm	9.1948 mm	9.1948 mm
Body length or diameter	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm
Nozzle length	0.469 inch	0.469 inch	0.469 inch	0.469 inch
Casing type	15/32-32	15/32-32	15/32-32	15/32-32
center contact material	BRASS	BRASS	BRASS	BRASS
Center contact plating	SILVER	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC
Maximum contact current (AC)	3 A	3 A	3 A	3 A
Maximum contact current (DC)	4 A	4 A	4 A	4 A
Contact (DC) maximum rated R load	4A@30VDC	4A@30VDC	4A@30VDC	4A@30VDC
Contact function	(ON)-OFF-ON	ON-OFF-ON	ON-ON	(ON)-OFF-(ON)
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V
End contact material	BRASS	BRASS	BRASS	BRASS
End contact plating	SILVER	SILVER	SILVER	SILVER
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	MTG	MTG	MTG	MTG
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	140 °C	140 °C	140 °C	140 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C
seal	EPOXY	EPOXY	EPOXY	EPOXY
Solderability	HAND	HAND	HAND	HAND
surface mount	NO	NO	NO	NO
Switch action	MOMENTARY	HORIZONTAL	HORIZONTAL	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Terminal length	0.157 inch	0.157 inch	0.157 inch	0.157 inch
Terminal material	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Is it Rohs certified?	conform to	-	conform to	conform to
Maker	Knitter-switch	-	Knitter-switch	Knitter-switch
ECCN code	EAR99	-	EAR99	EAR99
