24T5.12HP-FT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 24T5.12HP-FT

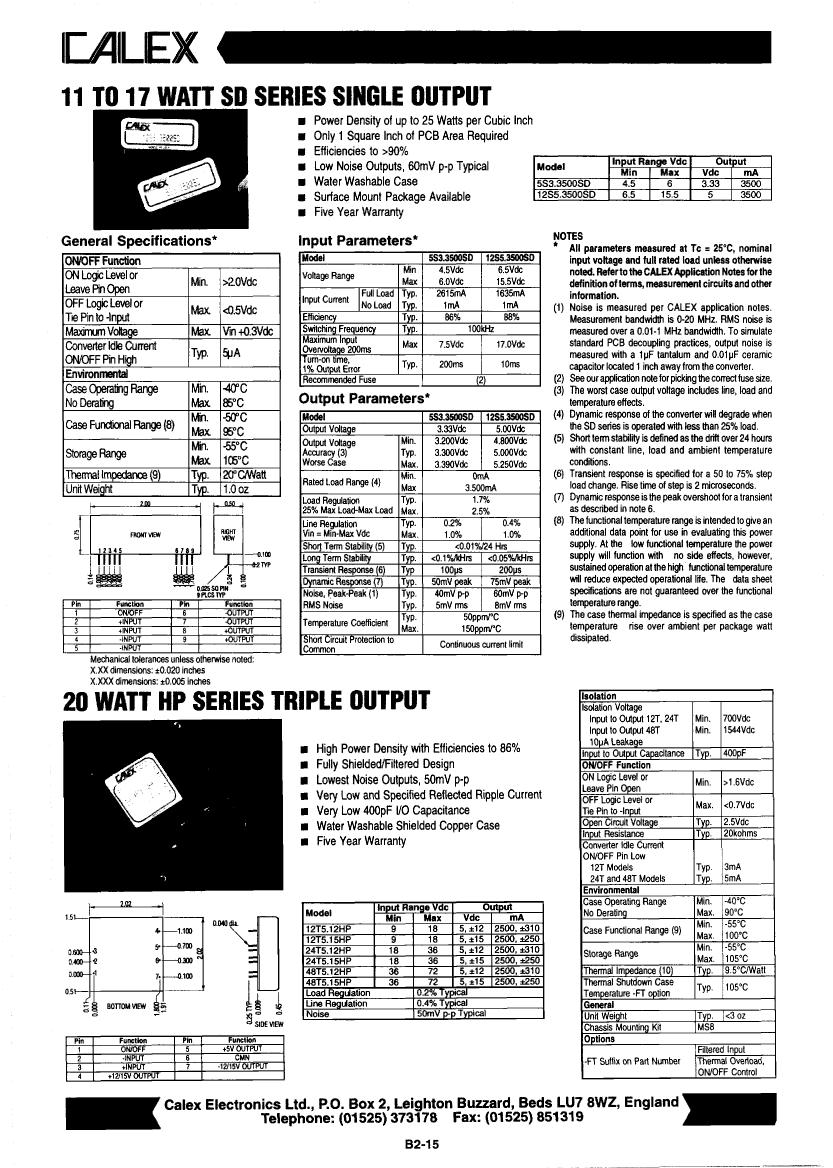

24T5.12HP-FT: DescriptionDC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid; CategoryPower/power management The power supply circuit; File Size98KB，1 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric Compare View All

24T5.12HP-FT Overview

DC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid

24T5.12HP-FT Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	+12V/-12V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDIP-P7
Maximum grid adjustment rate	0.4%
Maximum load regulation	0.2%
Number of functions	1
Output times	3
Number of terminals	7
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.075 V
Minimum output voltage	4.925 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	THERMAL
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	20 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

24T5.12HP-FT Related Products

	24T5.12HP-FT	24T5.15HP-FT	48T5.12HP-FT	12T5.12HP-FT	340103102B58PFR112-4	48T5.15HP-FT
Description	DC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid,	DC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid	58 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, CRIMP, PLUG	DC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	+12V/-12V ADDITIONAL OUTPUT AVAILABLE	+15V/-15V ADDITIONAL OUTPUT AVAILABLE	+12V/-12V ADDITIONAL OUTPUT AVAILABLE	+12V/-12V ADDITIONAL OUTPUT AVAILABLE	MICROPIN	+15V/-15V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	-	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V	36 V	72 V	18 V	-	72 V
Minimum input voltage	18 V	18 V	36 V	9 V	-	36 V
Nominal input voltage	24 V	24 V	48 V	12 V	-	48 V
JESD-30 code	R-XDIP-P7	R-XDIP-P7	R-XDIP-P7	R-XDIP-P7	-	R-XDIP-P7
Maximum grid adjustment rate	0.4%	0.4%	0.4%	0.4%	-	0.4%
Maximum load regulation	0.2%	0.2%	0.2%	0.2%	-	0.2%
Number of functions	1	1	1	1	-	1
Output times	3	3	3	3	-	3
Number of terminals	7	7	7	7	-	7
Maximum operating temperature	90 °C	90 °C	90 °C	90 °C	-	90 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Maximum output voltage	5.075 V	5.075 V	5.075 V	5.075 V	-	5.075 V
Minimum output voltage	4.925 V	4.925 V	4.925 V	4.925 V	-	4.925 V
Nominal output voltage	5 V	5 V	5 V	5 V	-	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE
Protect	THERMAL	THERMAL	THERMAL	THERMAL	-	THERMAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
surface mount	NO	NO	NO	NO	-	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	-	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	-	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL
Maximum total power output	20 W	20 W	20 W	20 W	-	20 W
Fine-tuning/adjustable output	NO	NO	NO	NO	-	NO
Base Number Matches	1	1	1	1	-	1
