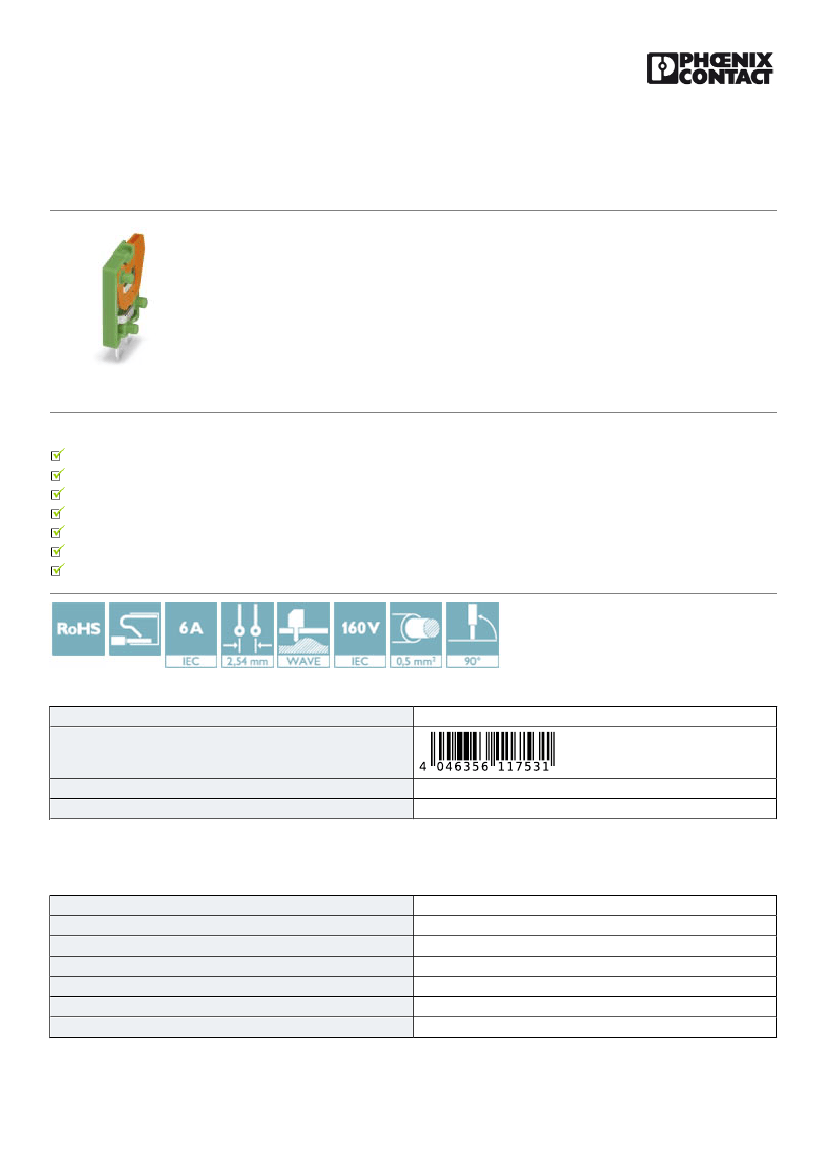

PCB terminal block - FFKDSA1/V-2,54- 5 GY BD:1-5 - 1722671
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 6 A, nom. voltage: 160 V, pitch: 2.54 mm, number of positions: 5,
connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection
direction: 90 °, color: gray
The figure shows a 1-pos. version
of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
Vertical connection enables multi-row arrangement on the PCB
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356117531
85369010
1
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
12.6 mm
2.54 mm
10.16 mm
15.2 mm
13.6 mm
17 mm
3.4 mm
01/15/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1722671
PCB terminal block - FFKDSA1/V-2,54- 5 GY BD:1-5 - 1722671
Technical data
Dimensions
Hole diameter
1.1 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Stripping length
Number of positions
FFKDS(A) 0,5/..-V
2.5 kV
2.5 kV
2.5 kV
63 V
160 V
320 V
EN-VDE
6A
0.5 mm²
11 mm
5
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
26
20
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141109
27141109
27141190
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
EC001121
EC002643
01/15/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1722671
PCB terminal block - FFKDSA1/V-2,54- 5 GY BD:1-5 - 1722671
Classifications
ETIM
ETIM 5.0
ETIM 6.0
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
CSA / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
B
150 V
6A
20
13631
EAC
B
150 V
6A
26-20
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19870330
01/15/2019 Page 3 / 4
https://www.phoenixcontact.com/in/products/1722671
PCB terminal block - FFKDSA1/V-2,54- 5 GY BD:1-5 - 1722671
Accessories
Accessories
Connector
Ferrule - AI 0,25-10 YE - 3241128
Ferrule, sleeve length: 10 mm, length: 14.5 mm, color: yellow
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/15/2019 Page 4 / 4
