SED1335FOB datasheet, PDF - EEWORLD Datasheet

SED1335FOB: DescriptionDot Matrix LCD Controller, CMOS, PQFP60, QFP6-60; CategoryThe embedded processor and controller Microcontrollers and processors; File Size95KB，3 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

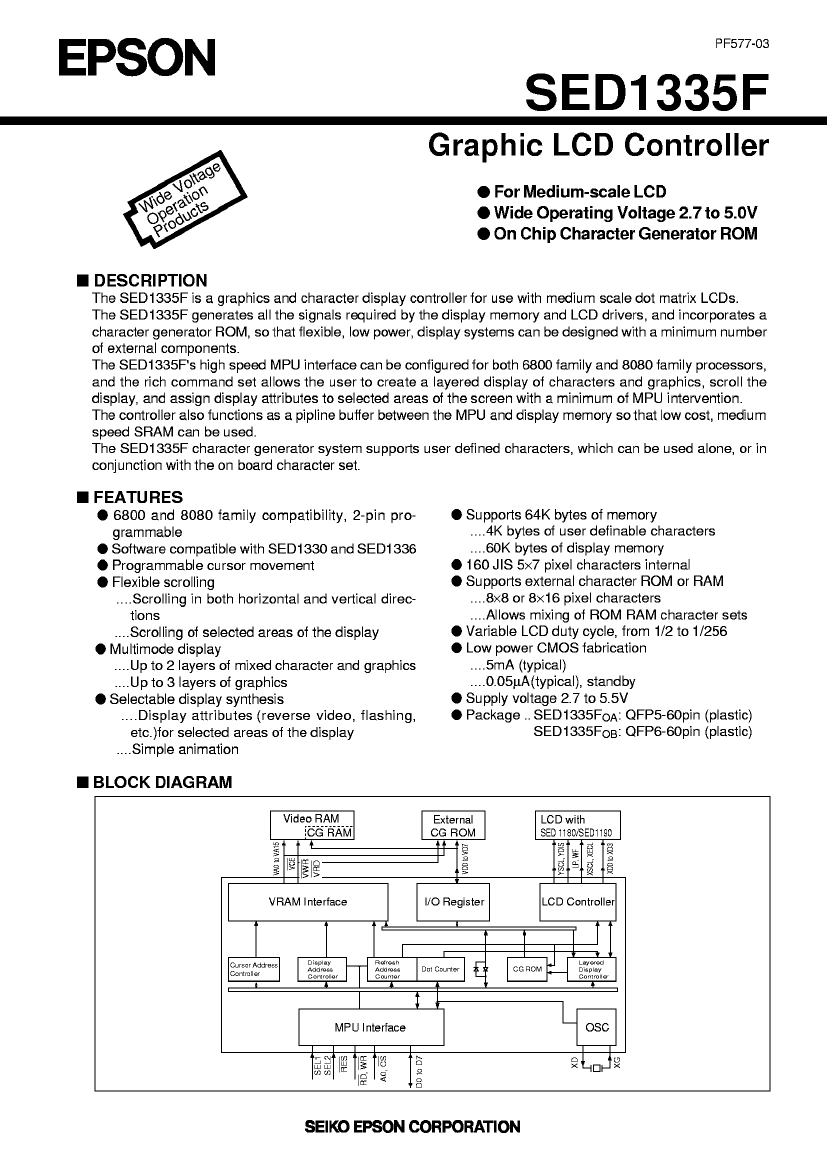

SED1335FOB Overview

Dot Matrix LCD Controller, CMOS, PQFP60, QFP6-60

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Seiko Epson Corporation
Parts packaging code	QFP
package instruction	QFP, QFP60,.7SQ,32

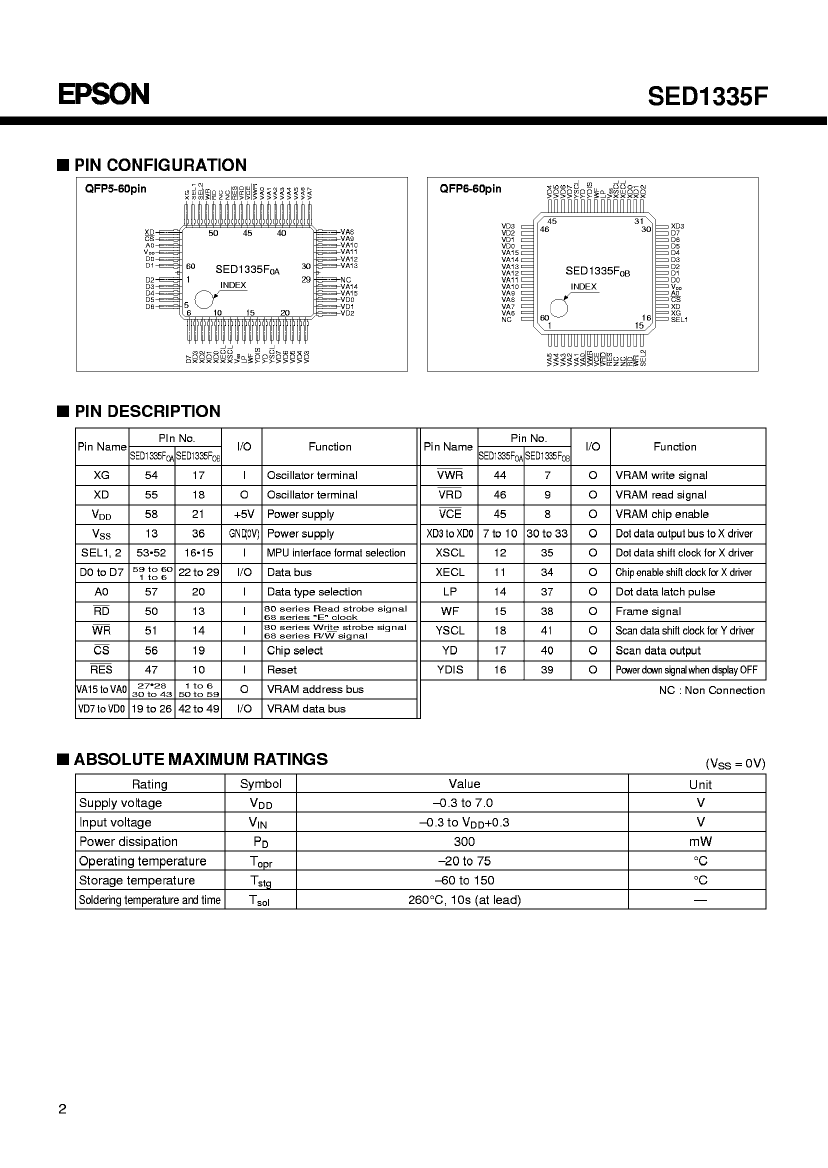

Contacts	60
Reach Compliance Code	unknown
Address bus width	1
Bus compatibility	80 FAMILY; 68 FAMILY
maximum clock frequency	10 MHz
External data bus width	8
JESD-30 code	S-PQFP-G60
Humidity sensitivity level	1
Number of terminals	60
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP60,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	225

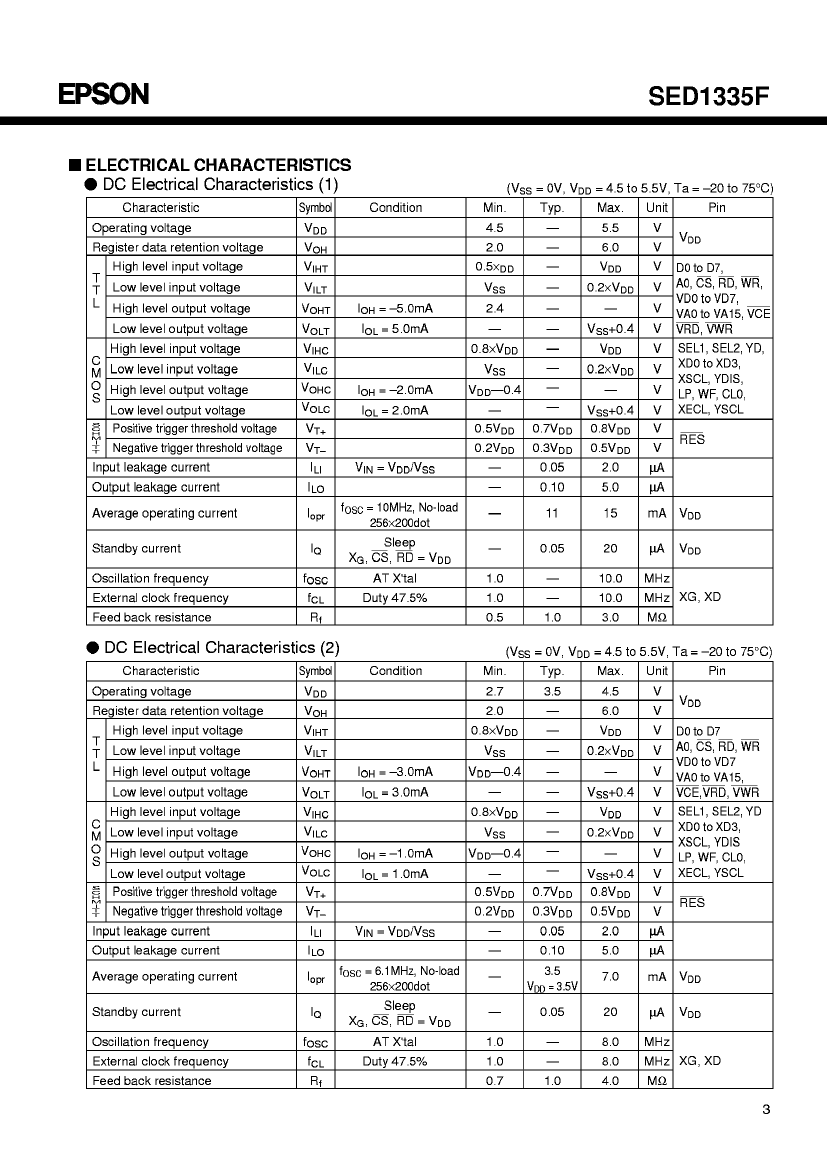

power supply	3/5 V
Certification status	Not Qualified
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, DOT MATRIX LCD DISPLAY

	SED1335FOB	SED1335FOA
Description	Dot Matrix LCD Controller, CMOS, PQFP60, QFP6-60	Dot Matrix LCD Controller, CMOS, PQFP60, QFP5-60
Is it Rohs certified?	incompatible	incompatible
Maker	Seiko Epson Corporation	Seiko Epson Corporation
Parts packaging code	QFP	QFP
package instruction	QFP, QFP60,.7SQ,32	QFP, QFP60,.77X1.0,40
Contacts	60	60
Reach Compliance Code	unknown	unknown
Address bus width	1	1
Bus compatibility	80 FAMILY; 68 FAMILY	80 FAMILY; 68 FAMILY
maximum clock frequency	10 MHz	10 MHz
External data bus width	8	8
JESD-30 code	S-PQFP-G60	R-PQFP-G60
Humidity sensitivity level	1	1
Number of terminals	60	60
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Encapsulate equivalent code	QFP60,.7SQ,32	QFP60,.77X1.0,40
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	225	225
power supply	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	15 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	1 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, DOT MATRIX LCD DISPLAY	DISPLAY CONTROLLER, DOT MATRIX LCD DISPLAY
