CS-8321DP3 datasheet, PDF - EEWORLD Datasheet

CS-8321DP3: DescriptionFixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSSO3, D2PAK-3; CategoryPower/power management The power supply circuit; File Size572KB，6 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet Parametric View All

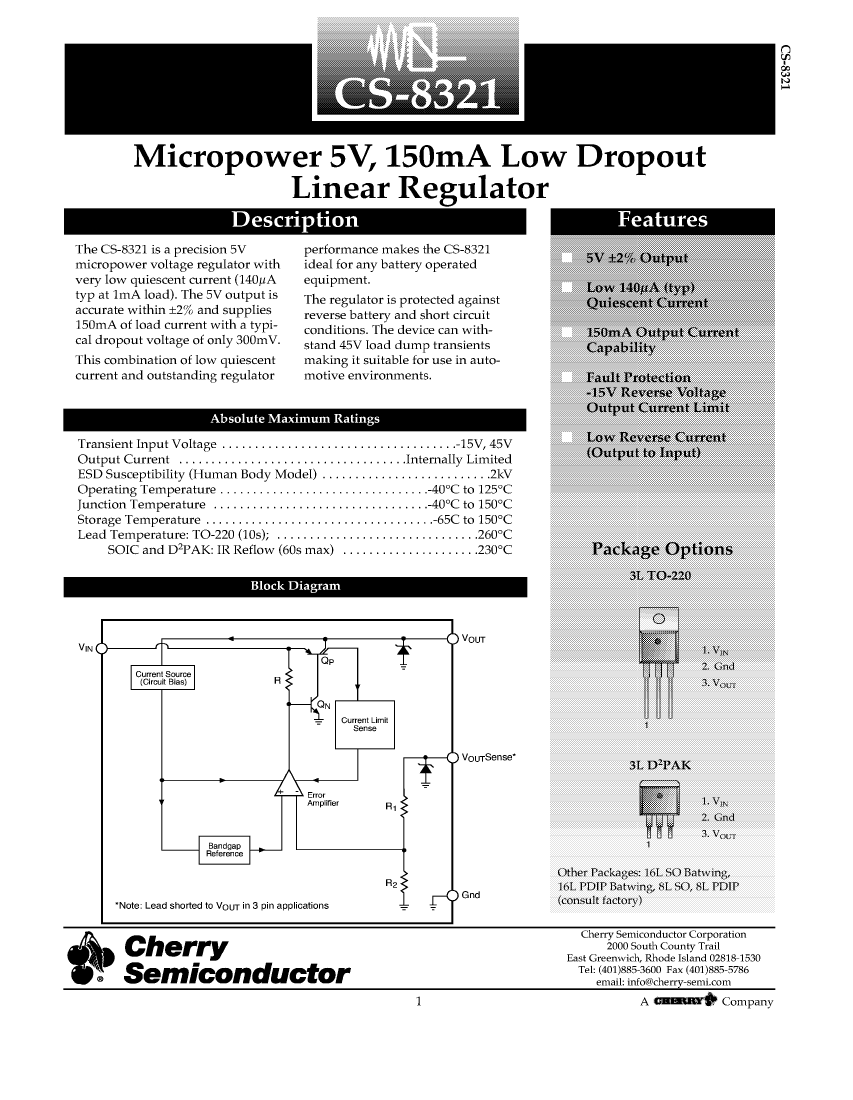

CS-8321DP3 Overview

Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSSO3, D2PAK-3

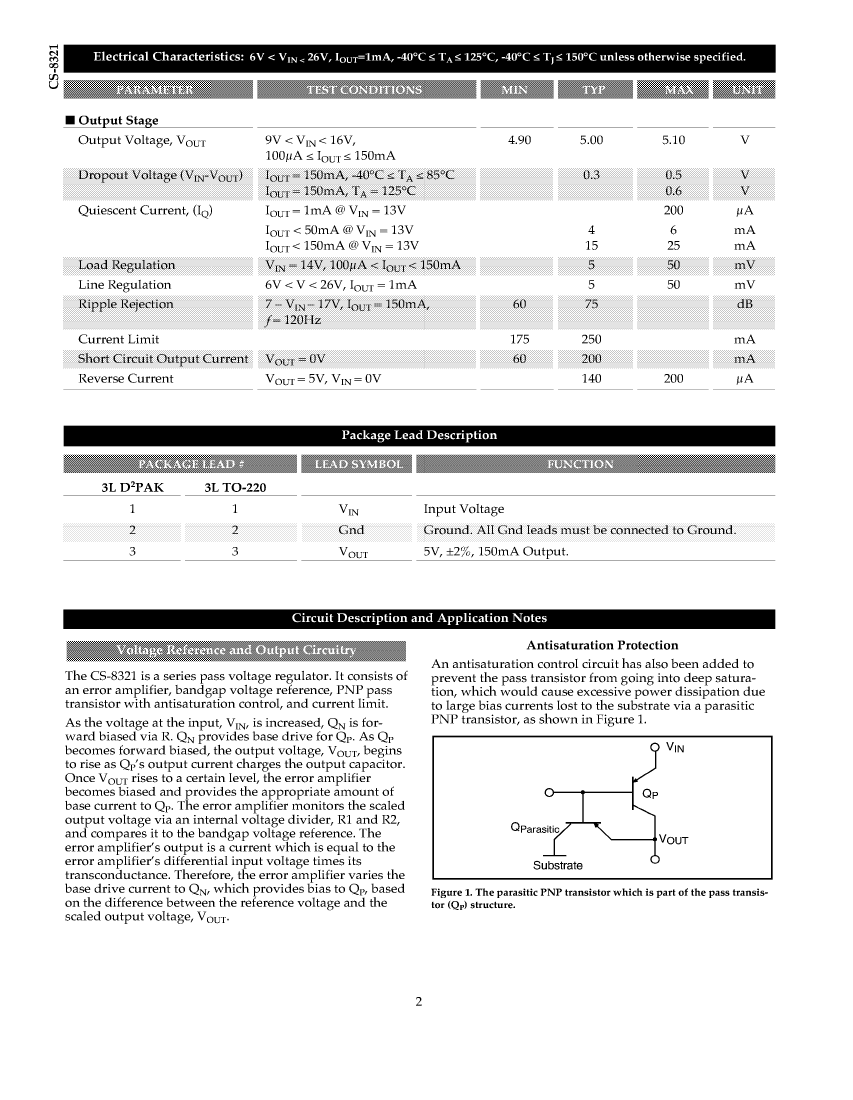

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CHERRY
package instruction	, SMSIP3H,.55TB
Reach Compliance Code	unknown
Adjustability	FIXED
Maximum drop-back voltage 1	0.6 V
Nominal dropback voltage 1	0.6 V
Maximum absolute input voltage	45 V
Maximum input voltage	26 V
Minimum input voltage	6 V
JESD-30 code	R-PSSO-G3
JESD-609 code	e0
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.05%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-40 °C
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.15 A
Maximum output voltage 1	5.1 V
Minimum output voltage 1	4.9 V
Nominal output voltage 1	5 V

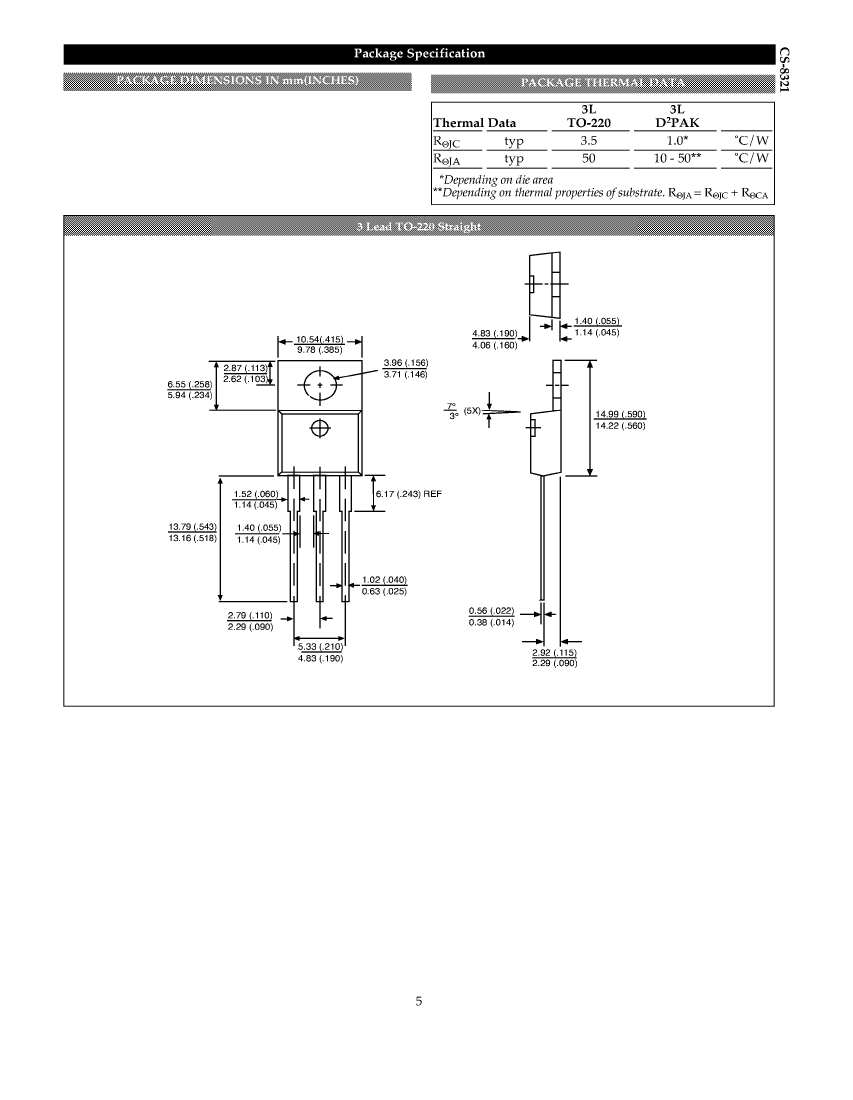

Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP3H,.55TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	2%

This Material Copyrighted By Its Respective Manufacturer
