AP70T03GH/J-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Simple Drive Requirement
▼
Low Gate Charge
▼
Fast Switching
▼
RoHS Compliant
G
S
D
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
BV
DSS
R
DS(ON)
I
D
30V
9mΩ
60A
Description
AP70T03 series are from Advanced Power innovated design and silicon
process technology to achieve the lowest possible on-resistance and fast
switching performance. It provides the designer with an extreme efficient
device for use in a wide range of power applications.
The TO-252 package is widely preferred for all commercial-industrial
surface mount applications using infrared reflow technique and suited for
high current application due to the low connection resistance. The
through-hole version (AP70T03GJ) are available for low-profile
applications.
GD
S
TO-252(H)
G
D
S
TO-251(J)
Absolute Maximum Ratings@T
j
=25
o
.
C(unless otherwise specified)
Symbol
V
DS
V
GS
I
D
@T
C
=25℃
I
D
@T
C
=100℃
I
DM
P
D
@T
C
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
Total Power Dissipation
Linear Derating Factor
Storage Temperature Range
Operating Junction Temperature Range
Rating
30
+20
60
43
195
53
0.36
-55 to 175
-55 to 175
Units
V
V
A
A
A
W
W/℃
℃
℃
Thermal Data
Symbol
Rthj-c
Rthj-a
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maximum Thermal Resistance, Junction-ambient (PCB mount)
3
Value
2.8
62.5
110
Units
℃/W
℃/W
℃/W
1
201408266
Maximum Thermal Resistance, Junction-ambient
Data and specifications subject to change without notice
AP70T03GH/J-HF
Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=33A
V
GS
=4.5V, I
D
=20A
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Gate-Source Leakage
Total Gate Charge
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=33A
V
DS
=24V, V
GS
=0V
V
GS
= +20V, V
DS
=0V
I
D
=33A
V
DS
=20V
V
GS
=4.5V
V
DS
=15V
I
D
=33A
R
G
=3.3Ω
V
GS
=10V
V
GS
=0V
V
DS
=25V
f=1.0MHz
Min.
30
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
35
-
-
-
17
5
10
8
105
22
9
245
170
Max. Units
-
9
18
3
-
10
250
+100
27
-
-
-
-
-
-
-
-
V
mΩ
mΩ
V
S
uA
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
Drain-Source Leakage Current (T
j
=125
o
C)
V
DS
=24V ,V
GS
=0V
.
1485 2400
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Reverse Recovery Time
Reverse Recovery Charge
Test Conditions
I
S
=33A, V
GS
=0V
I
S
=20A, V
GS
=0V,
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
27
20
Max. Units
1.3
-
-
V
ns
nC
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
3.Surface mounted on 1 in
2
copper pad of FR4 board
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP70T03GH/J-HF
200
120
T
C
=25
o
C
I
D
, Drain Current (A)
150
10V
8.0V
I
D
, Drain Current (A)
90
T
C
=175
o
C
10V
8.0V
6.0V
6.0V
100
60
V
G
=4.0V
30
50
V
G
=4.0V
0
0.0
1.5
3.0
4.5
0
0.0
1.5
3.0
4.5
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

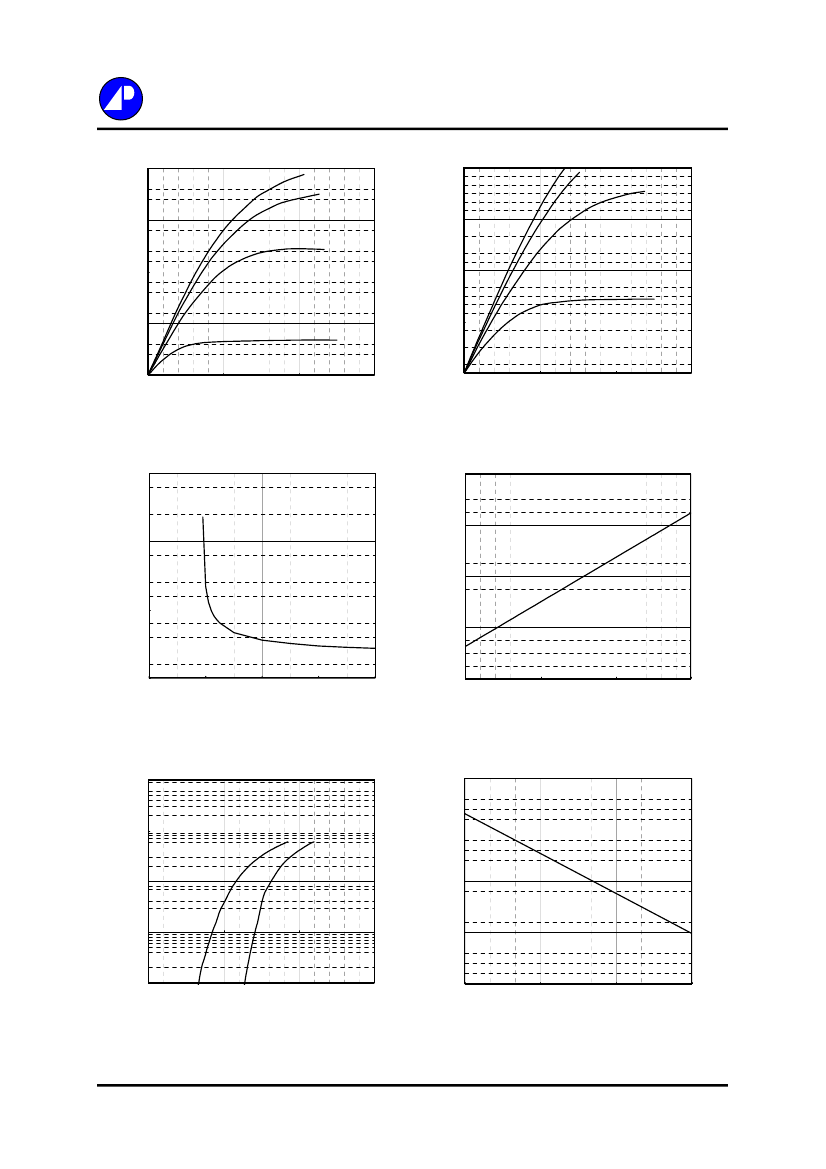

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
60
2
I
D
=20A
T
C
=25
℃
Normalized R
DS(ON)
1.6
I
D
=33A
V
G
=10V
40
R
DS(ON)
(m
Ω
)
.
20
1.2
0.8
0
2
4
6
8
10
0.4
-50
25
100
175
V
GS
, Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
2.5
1000
100
2
10
T
j
=175
o
C
T
j
=25
o
C
V
GS(th)
(V)
1.5
I
S
(A)
1.5
1
1
0.1
0
0.5
1
0.5
-50
25
100
175
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C )
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP70T03GH/J-HF
12
10000
f=1.0MHz
I
D
=33A
V
GS
, Gate to Source Voltage (V)
9
C (pF)
V
DS
=16V
V
DS
=20V
V
DS
=24V
6
C
iss
1000
3
C
oss
C
rss
0
0
5
10
15
20
25
30
100
1
5
9
13
17
21
25
29
Q
G
, Total Gate Charge (nC)
V
DS
, Drain-to-Source Voltage (V)

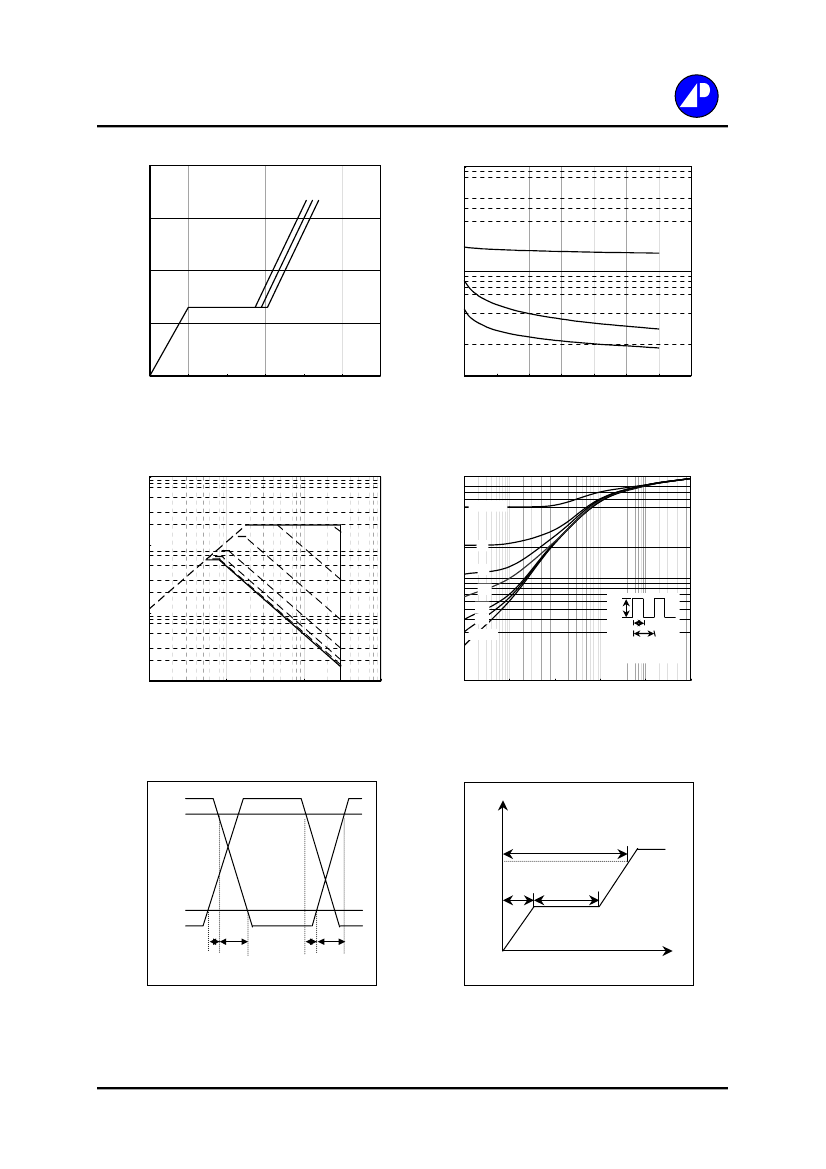

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
1000
1
100
10us
Normalized Thermal Response (R
thjc
)
Duty factor = 0.5
0.2
0.1
I
D
(A)
100us
10
.
0.1
0.05
0.02
0.01
P
DM
1ms
T
C
=25 C
Single Pulse
1
0.1
1
10
t
T
Single Pulse
o
10ms
100ms
1s
DC
Duty Factor = t/T
Peak T
j
= P
DM
x R
thjc
+ T
C
0.01
100
0.00001
0.0001
0.001
0.01
0.1
1
V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
4.5V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
4
AP70T03GH/J-HF
MARKING INFORMATION
TO-251
70T03GJ
YWWSSS
Part Number
meet Rohs requirement
for low voltage MOSFET only
Package Code
Date Code (YWWSSS)
Y：Last Digit Of The Year
WW：Week
SSS：Sequence
TO-252
70T03GH
YWWSSS
Part Number
meet Rohs requirement
for low voltage MOSFET only
.
Package Code
Date Code (YWWSSS)
Y：Last Digit Of The Year
WW：Week
SSS：Sequence
5
