BSD-1279-004 Overview

Single Color LED Display Cluster, Yellow, 9mm

BSD-1279-004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
color	YELLOW
Display height	9 mm
Number of functions	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches	1

Preview

Download Datasheet

View All



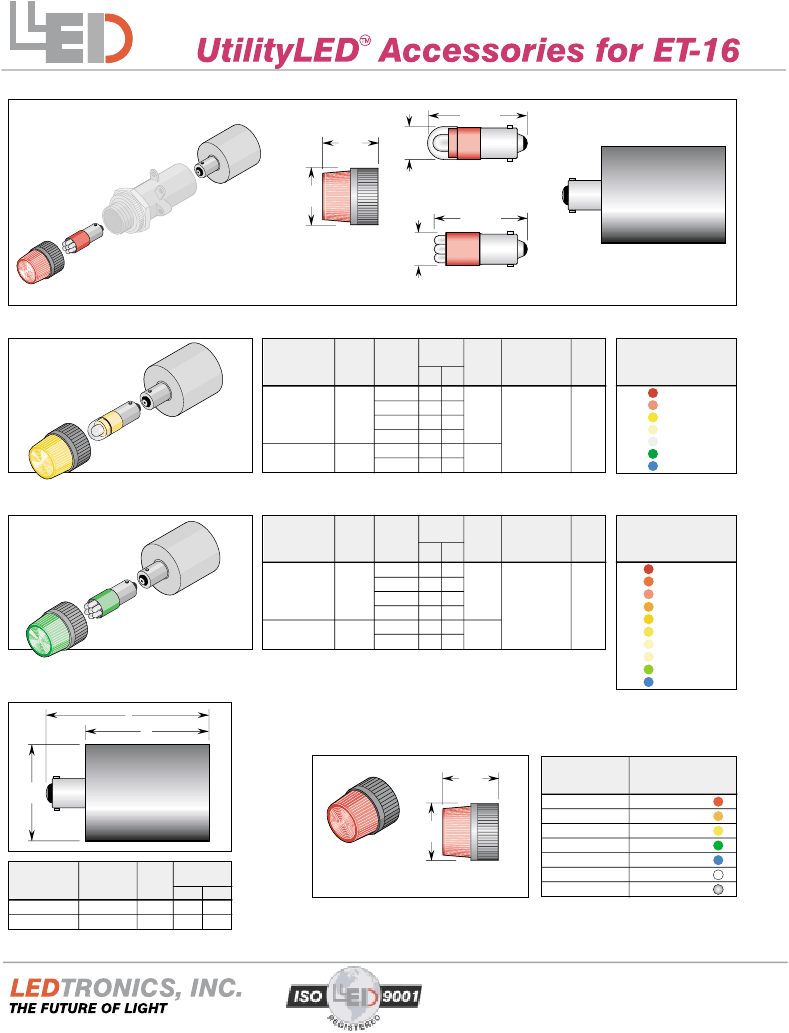

Energy Efficient Direct Incandescent Replacement

Replacement Kit for ET-16 Pilot Lights

UtilityLED Accessories for ET-16

1.19 MOL

[30.3]

Typical Application

.72

[18.3]

ø.39

[9.9]

High Power

Resistor

ET-16

(Not Included)

.77

[19.6]

Super Intensity Single Chip LED

T3-1/4 Miniature Bayonet

1.19 MOL

[30.3]

Fluted Lens Cap

ø.400

[10.2]

Bayonet Based Resistor

(See Chart Below for Dimensions)

High Efficiency Cluster LED

T3-1/4 Miniature Bayonet

Replacement Kit with Super Intensity Single Chip LED Lamp

Kit Number

Color

Circuit

Rating

Volts

Circuit

Voltage

Min

External

Series

Resistor

Max OHMs

LED Lamp

Number

LED

Lamp

Voltage

Rating

Color Code

(-0XX)

RED

ORANGE

YELLOW

INC. WHITE

COOL WHITE

GREEN

BLUE

125VDC 110 140

Lens Cap

LED Lamp

High Power

Resistor

SEE

70VAC

BSD-1214-1XX CHART

120VAC

130VAC

BSD-1215-1XX

55 76

95 130

105 140

5100

UTL1819-0XX

28V

240VAC 195 260

SEE

10.5K

CHART 250VDC 220 280

Replacement Kit with High Efficiency Cluster LED Lamp

Kit Number

Color

Circuit

Rating

Volts

Circuit

Voltage

Min

External

Series

Resistor

Max OHMs

LED Lamp

Number

LED

Lamp

Voltage

Rating

Color Code

(-00X)

001

002

0UO

003

0UY

004

UYG

026

006

008

UL. RED

HE. RED

SP. ORANGE

ORANGE

SP. YELLOW

YELLOW

UL. PALE WHITE

PALE WHITE

GREEN

BLUE

125VDC 110 140

Lens Cap

LED Lamp

High Power

Resistor

SEE

70VAC

BSD-1214-00X CHART

120VAC

130VAC

BSD-1215-00X

55 76

95 130

105 140

5100

BSD-1279-00X

28V

240VAC 195 260

SEE

10.5K

CHART 250VDC 220 280

9mm Min. Bayonet Replacement

Resistors for ET-16 Pilot Lights

Replacement Lenses for ET-16 Pilot Lights

.72

[18.3]

Part Number

RPLL16-CRF

RPLL16-CAF

RED

Color

1.18

[30.0]

.77

[19.6]

RPLL16-CYF

RPLL16-CGF

RPLL16-CBF

RPLL16-TWF

RPLL16-CWF

AMBER

YELLOW

GREEN

BLUE

WHITE

CLEAR

Part Number

Resistor

Value

R132-510-DC 5100 OHM

R250-105-DC 10500 OHM

Dimensions

Power Typ (inches)

Rating

1.67 1.20

2.00 1.52

RPNL-1020

ET-16 FLUTED LENS CAP



23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com
