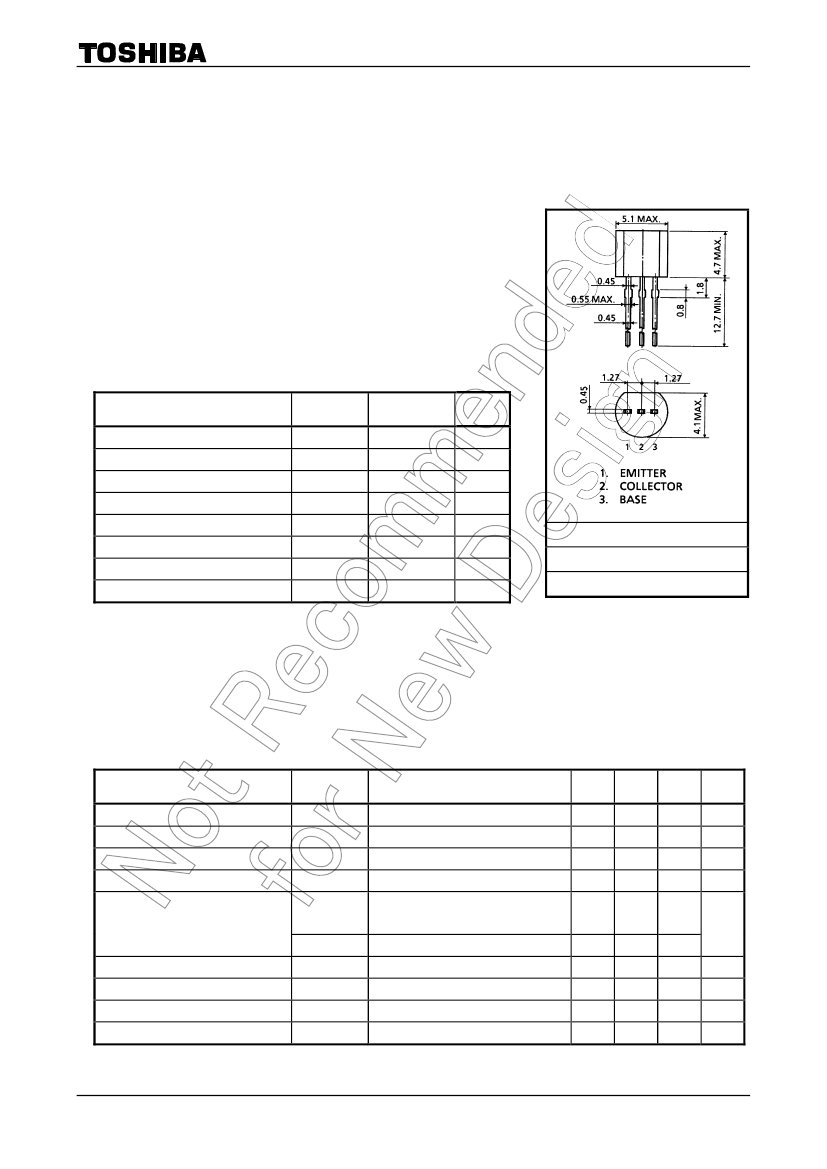

2SC2551
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT process)
2SC2551
Hight Voltage Control Applications
Plasma Display, Nixie Tube Driver Applications
Cathode Ray Tube Brightness Control Applications
•
•
•
•
High voltage: V
CBO
= 300 V, V
CEO
= 300 V
Low saturation voltage: V
CE (sat)
= 0.5 V (max)
Small collector output capacitance: C
ob
= 3 pF (typ.)
Complementary to 2SA1091.
Industrial Applications
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
300
300
6
100
20
400
150
−55~150
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
JEITA
TOSHIBA
TO-92
SC-43
2-5F1B
Weight: 0.21 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating
conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Symbol
I
CBO
I
EBO
V
(BR) CBO
V
(BR) CEO
h
FE (1)
DC current gain
(Note)
h
FE (2)
Collector-emitter saturation voltage
Base-emitter saturation voltage
Transition frequency
Collector output capacitance
V
CE (sat)
V
BE (sat)
f
T
C
ob
Test Condition
V
CB
=
300 V, I
E
=
0
V
EB
=
6 V, I
C
=
0
I
C
=
0.1 mA, I
E
=
0
I
C
=
1 mA, I
B
=
0
V
CE
=
10 V, I
C
=
20 mA
V
CE
=
10 V, I
C
=
1 mA
I
C
=
20 mA, I
B
=
2 mA
I
C
=
20 mA, I
B
=
2 mA
V
CE
=
10 V, I
C
=
20 mA
V
CB
=
20 V, I
E
=
0, f
=
1 MHz
Min
⎯
⎯
300
300
30
20
⎯
⎯
50
⎯
Typ.
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
80
3
Max
0.1
0.1
⎯
⎯
150
⎯
0.5
1.2
⎯
4
V
V
MHz
pF
Unit
μA
μA
V
V
Note: h
FE (1)
classification R: 30~90, O: 50~150
1
2007-11-01
2SC2551
